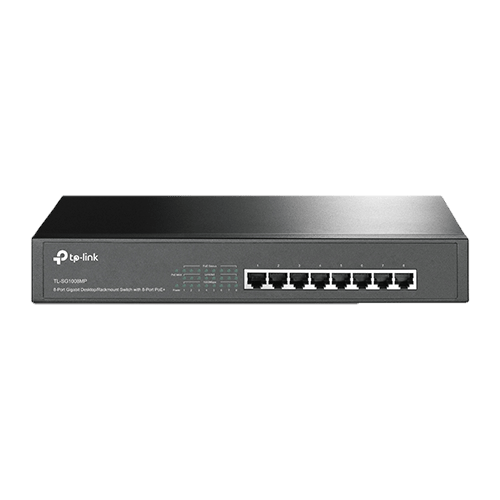

TP-Link TL-SG1008MP 8-Port Gigabit PoE+ Desktop Switch, 8 10/100/1000Mbps RJ45 Ports, 4K MAC Address Table, 16Gbps Switching Capacity, 1.5Mbits Buffer Size, 126W PoE Power Budget, Store and Forward Transfer Mode, Supports Green Technology, 1 Built-in Fans, 100-240 VAC.

PoE Ports

8 × 10/100/1000 Mbps PoE+ Ports

Easy To Use

Plug and play design, no configuration required

PoE Standard


Power Budget

126W PoE Power

Switching Capacity

16 Gbps

Mac Address Table


Hardware Features


8 10/100/1000 Mbps RJ45 Ports
AUTO Negotiation /AUTO MDI /MDIX

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)

Fan Quantity


Power Supply

100-240VAC, 50/60Hz

Power Consumption

Maximum (PoE on): 64.9W
Maximum (PoE off): 9.9W

PoE+ Ports(RJ45)

Standard: 802.3af/at (30W)
PoE+ Ports: 8 Ports
Total PoE Budget: 153W

Max Power Consumption

8.57W (no PD load)
173.65W (with 153W PD load)

Mac Address Table


Buffer Size


Switching Capacity



Desktop / Rack Mountable

Dimensions ( W x D x H )

11.6 × 7.1 × 1.7 in.
(294 × 180 × 44 mm)

Software Features

Advanced Features

Compatible With IEEE 802.3af/at Compliant power devices (PD)
Port Priority Function
MAC Address Auto-Learning And Auto-Aging
IEEE802.3x Flow Control

Transfer Method

Store and Forward
