Bosch

Bosch PRA-ES8P2S Managed 10‑port Ethernet switch with PoE and SFP, 8 x Gigabit ports with PoE, 2 x Gigabit combo ports with SFP sockets for glass fiber transceivers, Network redundancy via STP/MSTP/RSTP, Dual power supply connections, Fault relay, Operating voltage (VDC): 16.80 VDC – 62.40 VDC, Power consumption (W): 140 W maximum, PoE/PoE + power budget: 120 W maximum, PoE/PoE + power per port: 20 W maximum, PoE/PoE + standard: IEEE 802.3 af/at, Switch type: Managed, MAC table size: 8K, Watchdog; RSTP; Rate limiting; Storm control, IEEE 802.1Q VLAN, IGMP snooping v1/v2/v3, MLD snooping, IGMP immediate leave, QoS, IP30.

Bosch PRA-APAS Advanced Public Address Server, Server for the advanced public address software license, Interface for third party PCs and tablet devices to the PRAESENSA IP‑network, IP‑networked on existing Local Area Networks, Secure internet connection to the Local Area, Network (LAN) of the building, internet radio, online music streaming and text‑to‑speech‑service, Internal memory for business messages library and music playlists.

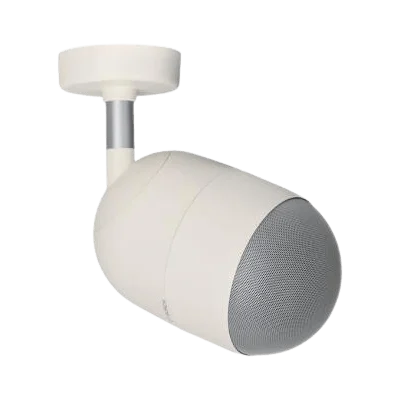

Bosch LP1-UC10E-1 10W Sound projector, unidirectional, white ABS enclosure with metal grilles, Sound pressure level: at 10 W / 1 W (1kHz, 1 m): 96 dB / 86 dB (SPL), Opening angle at 1 kHz / 4 kHz (-6 dB): 220° / 65°, Effective frequency range (-10dB): 75 Hz to 20 kHz, water and dust protected, IP65, EN54-24 certified, white RAL 9010.

Bosch LBB1965/00 Message manager, A high-performance, highly versatile stand-alone digital message player, Up to 12 messages and 12 trigger inputs, Supported sample rates (fs): 24 / 22.05 / 16 / 12 / 11.025 / 8 kHz, 230/115 VAC, ±10%, 50/60 Hz.

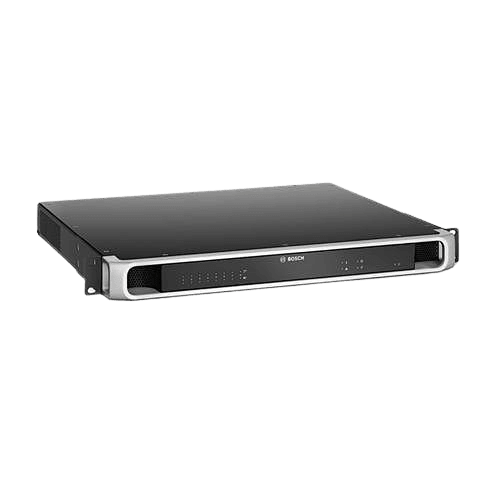

Bosch PRA-AD608 PRAESENSA 600W 8-Channel Amplifier, Network‑connected, DC‑powered, 8‑channel, 600W, power amplifier with integrated spare channel and DSP functions, Flexible power partitioning across all channels, Low power consumption and heat loss, Full supervision with integrated fail‑safe redundancy, Digital signal processing per channel, IP‑networked on OMNEO for audio and control, Number of analog inputs: 1, Number of Ethernet ports: 2, 48 kHz Sample rate, 70V/100V Rated output voltage, 20 - 20000 Hz Frequency response, Maximum loudspeaker load 100V/70V mode: 600W, IP30.

Bosch PRA-APAL Advanced public address license. Advanced functionality for high‑quality announcements, messages, text‑to‑speech, internet radio, music management and scheduled events, Support of personal devices such as third party, PCs and wireless tablets, Possibility to configure user group profiles for different access levels, Each connected user device requires one software license.

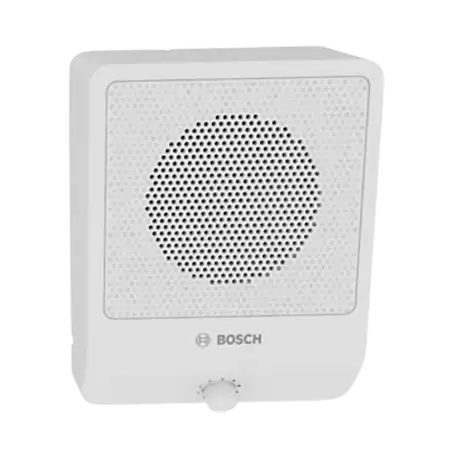

Bosch LB10-UC06V-L 6W Cabinet loudspeaker, ABS enclosure, finished in white, with 3 keyholes for wall mounting, & volume control, Rated power: 6 / 3 / 1.5 / 0.75 W, Sound pressure level at 6 W / 1 W (1 m): 99 dB / 91 dB (SPL), Effective frequency range: 145 Hz to 18kHz (-10 dB), 100 V Rated input voltage.
