Ezviz H6c Pro 4MP Pan & Tilt Smart Home Camera, 2K⁺ Resolution (2560 × 1440), Patrol Mode, Smart Color Night Vision, F1.6 @1/3" Progressive Scan CMOS, 4mm, view angle: 90°(Diagonal), 80° (Horizontal), 43°(Vertical), Max. 10 meters IR Range, Digital WDR, Smart Human Shape Detection, Auto-Zoom Tracking, Two-Way Calling, H.265 Video Technology, Supports 2.4 / 5 GHz Dual-Band Wi-Fi, Micro SD card slot (Max. 512G), RJ45 x1, TYPE-C.
Features
Wi-Fi PT Camera

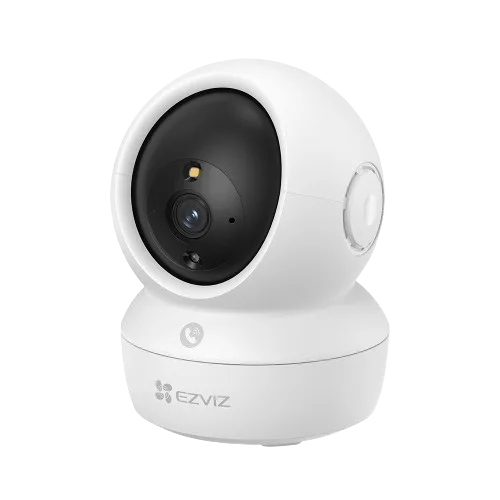

Ezviz H6c Pro 4MP Pan & Tilt Smart Home Camera
View from Anywhere
Always stay with that matters most to you from anywhere, anytime.
Night Vision
Smart color night vision up to 5 meters, IR Range: Up to 10m
Smart tracking
Auto Zoom Tracking & Smart Human Shape Detection
PT Camera
Motorized Pan and Tilt 360° Visual Coverage
Patrol Mode
Ensuring nothing left behind, the camera auto-rotates to cover more details
Two Way Calling
Two Way Calling, as if you were there.
Storage
Supports MicroSD Card Slot (up to 512 GB)
|
Specifications |
|
|
Model |
CS-H6c-R105-1J4WF |
|
Camera |
|
|
Resolution |
4MP /2K+ Resolution |
|
Image sensor |
F1.6@1/3" Progressive Scan CMOS |
|
Shutter Speed |
Self-adaptive shutter |
|
Lens |
4mm, view angle: 90°(Diagonal), 80° (Horizontal), 43°(Vertical) |
|
Lens Mount |
M12 |
|
Day & Night |
IR-cut filter with auto-switching |
|
DNR |
3D DNR |
|
WDR |
Digital WDR |
|
Compression |
|
|
Video Compression |
H.264/H.265 |
|
Video Bit Rate |
Adaptive bit rate. |
|
Image |
|
|
Max. Resolution |
2560 × 1440 |
|
Frame Rate |
Max:30fps; Self-Adaptive during network transmission |
|
Network |
|
|
Smart Alarm |
Motion Detection, Human Shape Detection, Loud Noise Detection, Patrol Mode Detection |
|
Wi-Fi Pairing |
AP paring |
|
Protocol |
EZVIZ cloud proprietary protocol |
|
Interface Protocol |
EZVIZ cloud proprietary protocol |
|
Interface |
|
|
Storage |
Micro SD card slot (Max. 512G) |
|
Power |
TYPE-C |
|
Wired Network |
RJ45 X 1 (10M/100M self-adaptive Ethernet port) |
|
Wi-Fi |
|
|
Standard |
IEEE802.11a, 802.11b, 802.11g, 802.11n, |
|
Frequency Range |
2.4G: 2400~2483.5MHz 5G: 5150MHz-5250MHz |
|
Channel Bandwidth |
Supports 20MHz |
|
Security |
WPA/WPA2, WPA-PSK/WPA2-PSK |
|
Transmission Rate |
11b 11Mbps, 11g 54Mbps, 11nHT20 MCS7, 11a 54Mbps, 11nHT20 MCS7 |
|
Output Power(EIRP) |
19 dBm |
|
Antenna Gain |
1.9 dBi |
|
General |
|
|
Operating Conditions |
-10°C to 45°C (14°F to 113 °F ), Humidity 95% or less (non-condensing) |
|
Power Supply |
DC 5V/2A |
|
Power Consumption |
8W max |
|
IR Range |
MAX. 10 meters(32.81ft) |
