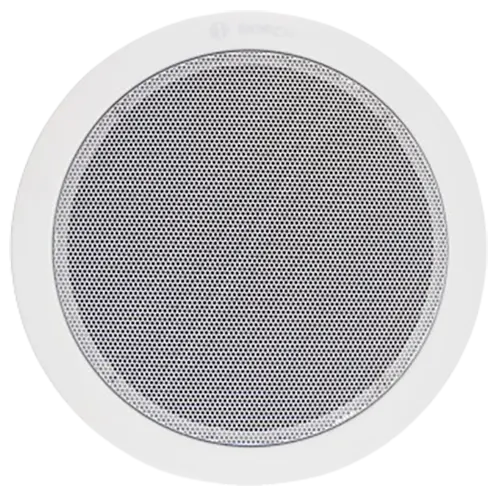

Bosch LC3-UM06E Ceiling loudspeaker 6W metal, Suitable for speech and music reproduction, Flush-mounting in ceiling cavity, Maximum power(W): 9W, Rated power(W): 6W, Transformer taps 100 V line: (6W; 3W; 1.5W), Sensitivity (1 W, 1 m, 1 kHz octave)(dB):92 dB, Sound pressure level (rated power,1 m, 1 kHz octave) (dB): 100 dB, Frequency range (-10 dB) (Hz): 290 Hz – 18,000 Hz, EN 54‑24 certified, BS 5839‑8 compliant.

Rs. 0.00 Rs. 0.00

Request a Quote

Loudspeaker Type

Bosch LC3-UM06E Ceiling loudspeaker 6W Metal

Power Tapping

Power Tapping of 6, 3 and 1.5 Watt.

Sound Pressure Level

Sound pressure level (rated power, 1 m, 1 kHz octave) (dB): 100 dB ​

Frequency Range

Frequency range (-10 dB) (Hz) 290 Hz – 18,000 Hz​

Coverage Angle

Coverage angle HxV (-6 dB, 500 Hz) (°): 180° x 180°​

Applications

Suitable for speech and music reproduction in indoor places.

Key Specifications

Color

White; Customized colors

Coverage angle HxV (-6 dB, 1 kHz) (°)

180 x 180 °

Coverage angle HxV (-6 dB, 4 kHz) (°)

65 x 65 °

Frequency range (-10 dB) (Hz)

290 – 18000 Hz

Operating relative humidity, non-condensing (%)

0 – 95 %

Operating temperature (°C)

-10 – 55 °C

Rated input voltage (V)

100 V

Rated power (W)

6 W

Sensitivity (1 W, 1 m, 1 kHz octave) (dB)

92 dB

Sensitivity (1 W, 4 m, 100 Hz - 10 kHz) (dB)

79 dB

Sound pressure level (rated power, 1 m, 1 kHz octave) (dB)

100 dB

Sound pressure level (rated power, 4 m, 100 Hz - 10 kHz) (dB)

86 dB

Storage temperature (°C)

-40 – 70 °C

Weight (kg)

0.97 kg
