DCNM‐WDE

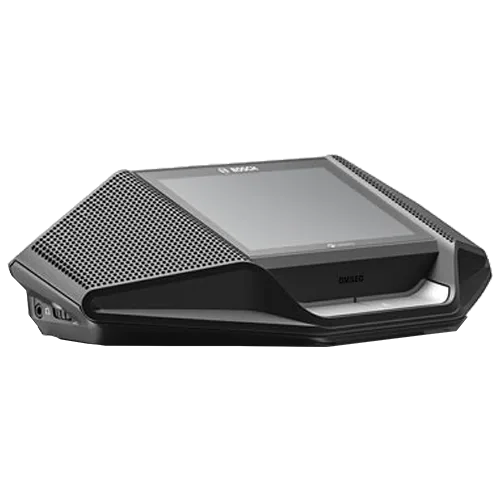

Bosch DCNM-WDE DICENTIS Wireless Device Extended with 4.3 inch, touch screen, NFC identification reader, IEEE 802.11n, Frequency Range: 2.4 GHz and 5 GHz, Configurable as a participant, dual-use or chairperson Wireless Device Extended by use of web browser interface, Functionality can be expanded with software modules without the need for hardware modification, Pluggable microphone and battery pack to be ordered separately.

Rs. 0.00 0.0 PKR Rs. 0.00

This combination does not exist.

Add to Cart

Add to wishlist Compare

Please get in touch for pricing & availability.

Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.

Description

Bosch Dicentis

Bosch DCNM-WDE Wireless discussion with touchscreen

Security

Secure connectivity to prevent eavesdropping and unauthorized access.
Encryption ensures that information within the system remains confidential

Headphones and loudspeakers

The Wireless Device Extended accommodate two headphone connections and controls

NFC

Built‑in NFC reader for fast recognition of participants

Wi-Fi

WIFI standard: IEEE 802.11n

Frequency Range: 2.4 GHz and 5 GHz (ISM license free)

Functionality

Additional functionality by use of software modules:

Identification functionality, Voting, Dual use.

Electrical

Supply voltage (battery pack)

7.5 Vdc

Power consumption

4.5 W

Operating time DCNM‑WDE

> 20 hours (20% speech, 80% listening)

Frequency response

100 Hz – 20 kHz)

(-3 dB at nominal level)

THD at nominal level

< 0.1 %

Dynamic range

> 90 dB

Signal‑to‑noise ratio

> 90 dB

Headphone load impedance

> 32 ohm <1k ohm

Headphone output power

15 mW

Radio

WIFI standard

IEEE 802.11n

Frequency Range

2.4 GHz and 5 GHz (ISM license free)

Audio inputs

Nominal microphone input

80 dB SPL according IEC60914

Maximum microphone input

110 dB SPL according IEC60914

Audio outputs

Loudspeaker nominal output

72 dB SPL at 0.5 m

Loudspeaker maximum output

80 dB SPL

Headphone nominal output

0 dBV

Headphone maximum output

3 dBV

General

Screen size (DCNM‑WDE only)

4.3 inch

Screen type (DCNM‑WDE only)

Capacitive multi‑touch

Supported contactless NFC tag

(DCNM‑WDE only)

According to: ISO/IEC14443 Type A (from 106 kbps to 848 kbps. MIFARE 106kbps).

Mechanical

Mounting

Tabletop

Dimensions (H x W x D) without microphone

72 x 259 x139 mm

(2.8 x 10.2 x 5.5 in)

Weight: DCNM‑WDE

DCNM‑WDE + Battery Pack

670 g (1.47 lb)

1131 g (2.49 lb)

Color (top and base)

Traffic black (RAL 9017)
