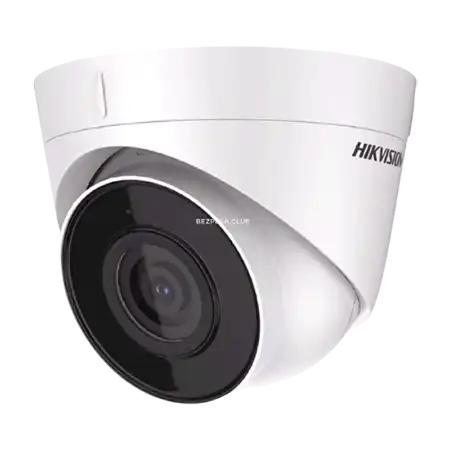

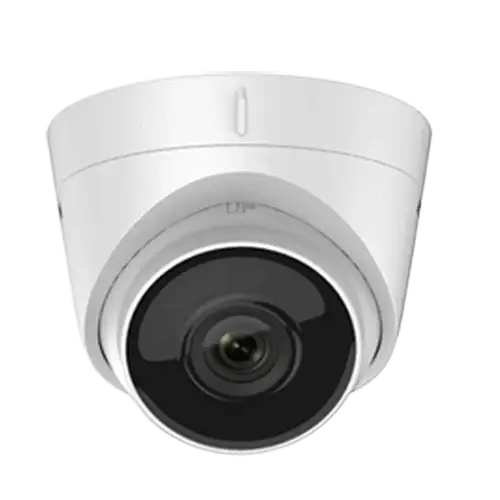

Camera
|
|
|
Image Sensor
|
1/2.7" Progressive Scan CMOS
|
|
|
Min. Illumination
|
Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0
Lux with IR
|
|
|
Shutter Speed
|
1/3 s to 1/100, 000 s
|
|
|
Slow Shutter
|
Yes
|
|
|
Wide Dynamic Range
|
Digital WDR
|
|
|
Day & Night
|
IR cut filter
|
|
|
Angle Adjustment
|
Pan: 0° to 360°, tilt: 0° to 75°,
rotate: 0° to 360°
|
|
|
Lens
|
|
|
Focal Length & FOV
|
2.8 mm, horizontal FOV 112.1°, vertical
FOV 60.0°, diagonal FOV 132.2°
|
|
|
Lens Mount
|
M12
|
|
|
Focus
|
Fixed
|
|
|
Aperture
|
F2.0
|
|
|
Illuminator
|
|
|
IR Wavelength
|
850 nm
|
|
|
IR Range
|
Up to 30 m
|
|
|
Video
|
|
|
Max. Resolution
|
1920 × 1080
|
|
|
Main Stream
|
50 Hz: 25 fps (1920 × 1080, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 720)
|
|
|
Sub-Stream
|
50 Hz: 25 fps (640 × 480, 640 × 360)
60 Hz: 30 fps (640 × 480, 640 × 360)
|
|
|
Video Compression
|
Main Stream: H.265 / H.264
Sub-Stream: H.265 / H.264 / MJPEG
|
|
|
Video Bit Rate
|
32 Kbps to 8 Mbps
|
|
|
H.264 Type
|
Baseline Profile / Main Profile / High
Profile
|
|
|
H.265 Type
|
Main Profile
|
|
|
H.264+
|
Main Stream supports
|
|
|
H.265+
|
Main Stream supports
|
|
|
Region of Interest (ROI)
|
1 fixed region for main stream
|
|
|
Audio
|
|
|
Audio Compression
|
G.711ulaw / G.711alaw / G.722.1 / G.726 /
MP2L2 / PCM / AAC
|
|
|
Audio Bit Rate
|
64 Kbps (G.711ulaw / G.711alaw) /16 Kbps
(G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
|
|
|
Audio Sampling Rate
|
8 kHz/16 kHz
|
|
|
Environment Noise Filtering
|
Yes
|
|
|
Network
|
|
|
Protocols
|
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP,
DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™,
SMTP, IGMP, 802.1X, QoS, IPv6, Bonjour,
IPv4, UDP, SSL/TLS
|
|
|
Simultaneous Live View
|
Up to 6 channels
|
|
|
API
|
Open Network Video Interface, ISAPI
|
|
|
User/Host
|
Up to 32 users. 3 levels: administrator,
operator and user
|
|
|
Network Storage
|
MicroSD / SDHC / SDXC card (256 GB) local
storage
|
|
|
Client
|
iVMS-4200, Hik-Connect
|
|
|
|
Image Settings
|
Saturation, brightness, contrast,
sharpness, AGC, white balance adjustable by client software or web browser.
|
|
Day/Night Switch
|
Day, Night, Auto, Schedule
|
|
Image Enhancement
|
BLC, 3D DNR
|
|
Interface
|
|
Ethernet Interface
|
1 RJ45 10 M/100 M self-adaptive Ethernet
port
|
|
On-Board Storage
|
Built-in memory card slot, support
microSD card, up to 256 GB
|
|
Built-in Microphone
|
Yes
|
|
Hardware Reset
|
Yes
|
|
Event
|
|
Basic Event
|
Motion detection, video tampering alarm,
exception
|
|
General
|
|
Linkage Method
|
Upload to FTP/memory card, notify
surveillance center, send email, trigger recording, trigger capture
|
|
Camera Material
|
Metal & Plastic
|
|
Storage Conditions
|
-30 °C to 60 °C (-22 °F to 140 °F).
Humidity: 95% or less (non-condensing)
|
|
Startup and Operating Conditions
|
-30 °C to 60 °C (-22 °F to 140 °F).
Humidity: 95% or less (non-condensing)
|
|
General Function | Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
| Power Consumption and Current | 12 VDC, 0.4 A, max. 5 W PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.15 A, max. 6.5 W |
| Power Supply | 12 VDC ± 25% PoE: 802.3af, Class 3 |
| Power Interface | Ø5.5 mm coaxial power plug |
| Approval |
| EMC | FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015) |
| Safety | UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2: 2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1 : 2014); BIS (IS 13252(Part 1) : 2010+A1: 2013+A2 : 2015) |
| Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | IP67 (IEC 60529-2013) |
