DS-2CE16H0T-IT5F 3.6mm
DS-2CE16H0T-IT5F 3.6mm

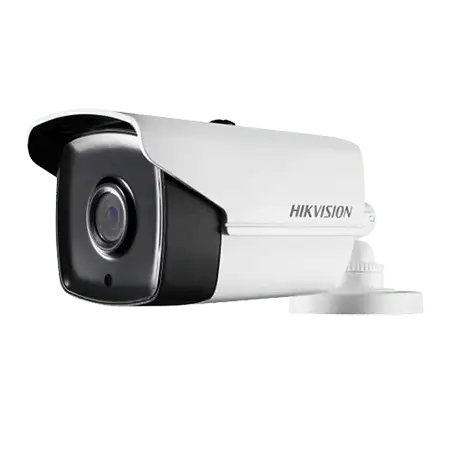

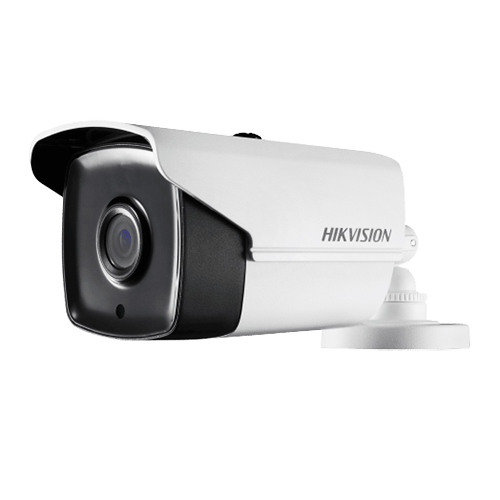

Hikvision Turbo 5MP EXIR Bullet Camera, 5MP@20fps, 4MP@30fps (Default), Supports TVI/AHD/CVI/CVBS Output, ICR, 0.01 Lux, DWDR, DNR, 80m EXIR, Smart IR, IP67, OSD Menu UTC
Resolution
5 MP( 2560 × 1944 ) Bullet camera
IR Range
Up to 80 m IR distance with EXIR 2.0 Technology
Frame Rate
5 MP@20fps, 4 MP@25fps, 1080p@25fps
Smart Features
DWDR, BLC, Day & Night Mode, DNR and AGC
Video Output Mode
Support TVI/AHD/CVI/CVBS
Protection Level
IP67 Weatherproof
Camera |
|
Image Sensor |
5 MP CMOS image sensor |
Effective Pixels |
2560 (H) × 1944 (V) |
Min. Illumination |
Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
Shutter Time |
PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s |
Lens |
3.6 mm |
Horizontal Field of View |
80.1° (3.6 mm) |
Lens Mount |
M12 |
Day & Night |
IR cut filter |
Angle Adjustment |
Pan: 0° to 360°; Tilt: 0° to 180°; Rotate: 0° to 360° |
Synchronization |
Internal synchronization |
Frame Rate |
PAL: 5 MP@20fps, 4
MP@25fps, 1080p@25fps |
Menu |
|
AGC |
Support |
D/N Mode |
Auto/Color/BW (Black and White) |
White Balance |
ATW/MWB |
BLC |
Support |
DWDR (Digital Wide Dynamic Range) |
Support |
Language |
English |
Functions |
Brightness, Sharpness, DNR, Mirror, Smart IR |
Interface |
|
Video Output |
1 HD analog output |
Switch Button |
TVI / AHD / CVI / CVBS |
General |
|
Operating Conditions |
-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) |
Power Supply |
12 V DC ±25% |
Power Consumption |
Max. 5.2 W |
Protection Level |
IP67 |
Material |
Front cover: Metal |
IR Range |
Up to 80 m |
Communication |
Up the coax, Protocol: HIKVISION-C (TVI output) |
Dimensions |
86.7 mm × 81.6 mm × 226 mm (3.41" × 3.23" × 8.67") |
Weight |
Approx. 680 g (1.5 lb.) |
