DS-2CE38D8T-PIR 3.6mm

DS-2CE38D8T-PIR 3.6mm

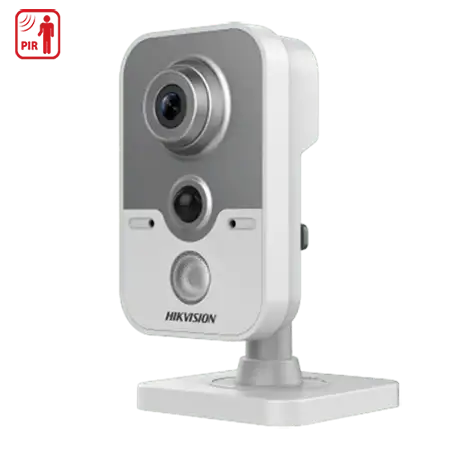

Hikvision Ultra-Low Light PIR Cube Camera, 2MP Full HD 1080p @ 30 fps, Focal Length 2.8 - 3.6mm, 20m Smart IR Range, 11m PIR Range, 110° PIR Angle, 120dB True WDR, 3D-DNR, BLC, True Day & Night with ICR, Up the Coax(HIKVISION-C), 12 VDC

Resolution

2 MP (1920 × 1080) high performance PIR cube camera

PIR detection

Angle: 110°, Range: 11 m

IR Range

Up to 20 m

Smart Features

BLC, AGC, White Balance, 3D-DNR

Basic Events

Motion Detection, Privacy Mask

Microphone

Built-in Microphone

Camera

Image Sensor

2.0 megapixel progressive scan CMOS

Signal System

PAL/NTSC

Frame Rate

PAL: [email protected] NTSC: [email protected]

Resolution

1920 (H) × 1080 (V)

Min. illumination

Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR

Shutter Time

PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s

Slow Shutter

Max. 16 times

Lens

2.8 mm, 3.6 mm fixed focal lens

Horizontal Field of View

103.5° (2.8 mm), 80.3° (3.6 mm)

Lens Mount

M12

Day & Night

IR cut filter

Synchronization

Internal synchronization

WDR (Wide Dynamic Range)

> 120 dB

Menu

AGC

Yes

Day/Night Mode

Auto/Color/BW (Black and White)

White Balance

ATW/MANUAL

Privacy Mask

ON/OFF, 4 programmable privacy masks

Motion Detection

4 programmable motion areas

Backlight Compensation

WDR/BLC/OFF

3D DNR (Digital Noise Reduction)

Level 1 to 10

Language

English, Chinese

Functions

Brightness, Sharpness, Mirror, Smart IR

Interface

Video Output

1 HD analog output

Audio In

Built-in microphone

Audio Out

1 RCA

General

Operating Conditions

-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)

Power Supply

12 VDC ±25%

Power Consumption

Max. 5 W

Material

Plastic

IR Range

Up to 20 m

PIR

Angle: 110°, Range: 11 m

Communication

Up the coax, Protocol: HIKVISION-C (TVI output)

Dimensions

104 mm × 66 mm × 41.07 mm (4.1" × 2.6" × 1.62")

Weight

Approx. 210 g (0.46 lb.)
