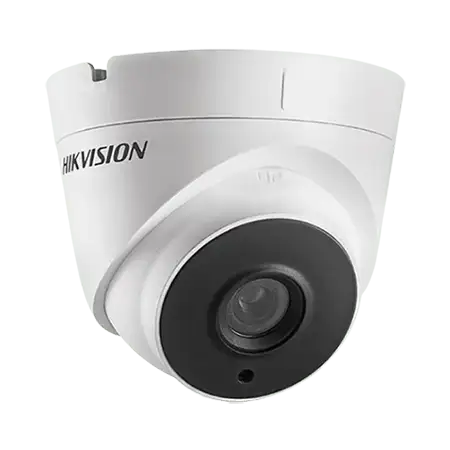

DS-2CE56H0T-ITPF 2.8mm

Hikvision 5MP Turbo Turret Camera, 5MP@20fps, 4MP@30fps (Default), Supports TVI/AHD/CVI/CVBS Output, ICR, 0.01 Lux, DNR, 20m EXIR, Smart IR, OSD

Rs. 0.00 0.0 PKR Rs. 0.00

This combination does not exist.

Add to Cart

Add to wishlist Compare

Please get in touch for pricing & availability.

Type: Turbo HD

Shape: Turret

Resolution: 5MP

Technology: Infrared

Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.

Description

Resolution

5 MP ( 2560 × 1944 ) Turret Camera

IR Range

Up to 20 m with EXIR 2.0 Technology

Frame Rate

5 MP@20fps, 4 MP@25fps, 1080p@25fps

Smart Features

DWDR, BLC, DNR, Day & Night Mode

Video Output Mode

TVI/AHD/CVI/CVBS

Protection Level

IP66

Camera

Image Sensor

5 MP CMOS image sensor

Resolution

2560 (H) × 1944 (V)

Min. Illumination

Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR

Shutter Time

PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s

Lens

2.8 mm

Horizontal Field of View

85.5° (2.8 mm)

Lens Mount

M12

Day & Night

IR cut filter

Angle Adjustment

Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360°

Synchronization

Internal synchronization

Frame Rate

PAL: 5 MP@20fps, 4 MP@25fps, 1080p@25fps
NTSC: 5 MP@20fps, 4 MP@30fps, 1080p@30fps

Menu

AGC

Support

D/N Mode

Auto/Color/BW (Black and White)

White Balance

ATW/MWB

BLC

Support

DWDR (Digital Wide Dynamic Range)

Support

Language

English

Functions

Brightness, Sharpness, DNR, Mirror, Smart IR

Interface

Video Output

1 HD analog output

Switch Button

TVI / AHD / CVI / CVBS

General

Operating Conditions

-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)

Power Supply

12 VDC ±25%

Power Consumption

Max. 4.3 W

Material

Plastic

IR Range

Up to 20 m

Communication

Up the coax, Protocol: HIKVISION-C (TVI output)

Dimensions

Ø 85.4 mm × 76.12 mm (Ø 3.38" × 2.67")

Weight

Approx.: 130 g (0.42 lb.)
