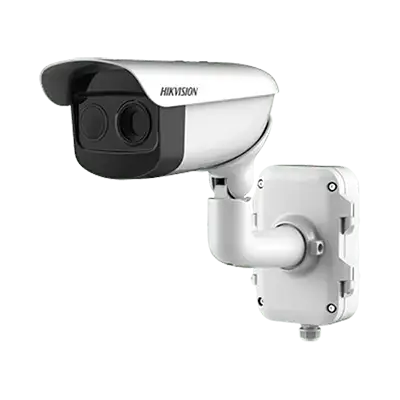

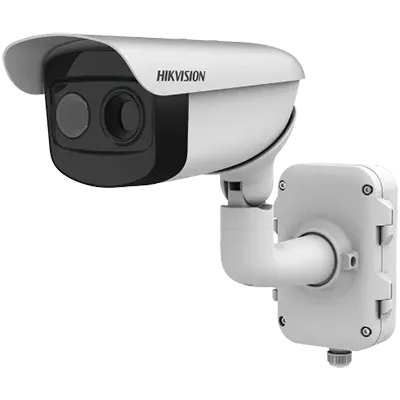

Thermal Module
|
Image Sensor
|
Vanadium Oxide Uncooled Focal Plane
Arrays
|
Max. Resolution
|
384 × 288
|
Pixel Interval
|
17 μm
|
Response Waveband
|
8 μm to 14 μm
|
NETD
|
less than 40 mk (@25°C, F#=1.0)
|
Lens (Focal Length)
|
25 mm
|
MRAD
|
0.68 mrad
|
Field of View
|
14.88°× 11.19° (H × V)
|
Min. Focusing Distance
|
13 m
|
Aperture
|
F 1.0
|
Optical Module
|
Max. Image Resolution
|
1920 × 1080
|
Image Sensor
|
1/2.8” Progressive Scan CMOS
|
Min. Illumination
|
Color: 0.001 Lux @ (F1.2, AGC ON), B/W:
0.0001 Lux @ (F1.2, AGC ON)
|
Shutter Speed
|
1s to 1/100,000s
|
Lens (Focal Length)
|
13 mm
|
Field of View
|
24° × 13.7°(H × V)
|
WDR
|
120 dB
|
Day & Night
|
IR cut filter with auto switch
|
Image Function
|
Bi-spectrum Image Fusion
|
Fusion view of thermal view and overlaid
details of the optical channel
|
Picture in Picture
|
Combines details of thermal and optical
image PIP, overlay thermal image on optical image
|
Smart Function
|
VCA (Video Content Analysis)
|
4 VCA rule types (Line Crossing,
Intrusion, Region Entrance, and Region Exiting), up to 8 VCA rules.
|
Temperature Measurement
|
3 temperature measurement rule types, 21
rules (10 points, 10 regions, and 1 line).
|
Temperature Range
|
-20°C to +150°C
|
Temperature Accuracy
|
±8C (±14.4°F)
|
Fire detection
|
Dynamic fire point detection, up to 10
fire points detectable.
|
Infrared
|
IR Distance
|
Up to 100 m
|
IR Intensity and Angle
|
Automatically adjusted
|
Network
|
Main Stream
|
Visible Light: 50Hz: 25fps (1920 × 1080),
25fps (1280 × 960), 25fps (1280 × 720)
Visible Light: 60Hz: 30fps (1920 × 1080),
30fps (1280 × 960), 30fps (1280 × 720)
Thermal: 50fps ( 384 × 288)
|
Sub Stream
|
Visible Light: 50Hz: 25fps (704 × 576),
25fps (352 × 288), 25fps (176 × 144)
Visible Light: 60Hz: 30fps (704 × 480),
30fps (352 × 240), 30fps (176 × 120)
Thermal: 50fps (384 × 288)
|
Video Compression
|
H.265 / H.264 / MJPEG, H.265+ / H.264+
encoding with Baseline / Main / High Profile
|
Audio Compression
|
G .711u / G.711a / G.722.1 / MP2L2 / G.726
/ PCM
|
Protocols
|
IPv4 / IPv6, HTTP, HTTPS, 802.1x, Qos, FTP,
SMTP, UPnP, SNMP, DNS, DDNS,NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP,
DHCP, PPPoE
|
Security Measures
|
User authentication (ID and PW), MAC
address binding, HTTPS encryption, IEEE 802.1x access control, IP address
filtering
|
Integration
|
Alarm Input
|
2-ch inputs (0-5V DC)
|
Alarm Output
|
2-ch relay outputs, alarm response
actions configurable
|
Alarm Action
|
SD recording / Relay output / Smart
capture / FTP upload / Email linkage
|
Audio Input
|
1 3.5mm Mic in / Line in interface. Line
input: 2-2.4V[p-p], output impedance:1KΩ±10%
|
Audio Output
|
Linear Level; Impedance: 600Ω
|
Reset
|
1 Reset Button
|
Ethernet
|
1 RJ45 10M / 100M Self-adaptive Ethernet
interface
|
SD Memory Card
|
Built-in Micro SD card slot, support
Micro SD / SDHC / SDXC card (up to 128G), support manual / alarm recording
|
Analog Video Output
|
1.0V [p-p] / 75Ω, PAL / NTSC / BNC
|
Application Programming
|
Open-ended API, support ISAPI, HIKVISION
SDK and third-party management platform
|
General
|
Power
|
24 VAC± 25%, 12 VDC± 20%, two-core
terminal block PoE (802.3at, class 4)
|
Power Consumption
|
24 VAC± 25%: 0.92 A, 12 VDC ± 20%: 1.9 A,
max. 15W (22W with De-icing Heater On),
PoE (802.3at, class 4): 42.5 V to 57 V,
0.4 A to 0.5 A
|
Working Temperature
|
-40 °C to 60 °C (-40 °F to 140 °F), 90%
or less Humidity
|
Protection Level
|
IP66 Standard
TVS 6000V Lightning protection, surge
protection, voltage transient protection
|
Dimensions
|
535 mm × 171 mm × 400 mm (21.06 " ×
6.73" × 15.75 ")
|
Weight
|
Approx. 6 Kg (13.23 lb)
|
