Black Body Calibrator, Radiation Source Temperature: 5℃~ 50℃ adjustable Temperature resolution: 0.1℃, Accuracy: ±0.1℃. Temperature stability: ±0.1℃/h, Effective emissivity: 0.97±0.02, Working temperature:0℃~30℃

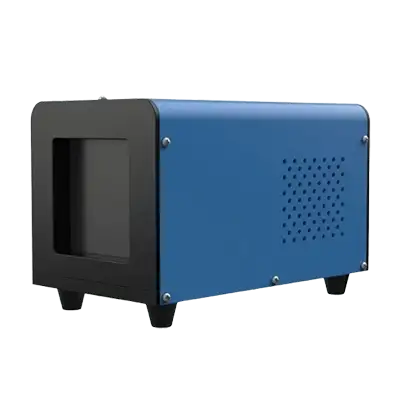

Black Body Calibrator
The black body is a calibration device that can set the temperature value and is a standard temperature source. The thermal device is calibrated based on the temperature of the black body. The thermal device is matched with the black body for real-time calibration (the black body is arranged opposite the thermal device to ensure that the front of the black body appears in the thermal device's screen) to ensure that the temperature measurement accuracy is precise (± 0.3 ℃). The black body only needs to be powered, no internet required. Hikvision thermal cameras are available with a black body to increase accuracy.
Calibration
Supports calibration of thermal device in high accuracy, Easy temperature calibration and correction
Temperature Range
Supports different temperature settings with high accuracy and good stability
Parameters
Temperature Resolution 0.1 °C, Accuracy ± 0.1 °C Temperature Stability ± 0.1 °C/h
|
Parameters |
|
|
Temperature resolution: |
0.1℃ |
|
Temperature accuracy |
±0.1℃ |
|
Temperature stability |
±0.1℃/h |
|
Radiation source temperature |
5℃~ 50℃ adjustable |
|
Effective emissivity |
0.97±0.02 |
|
Working temperature |
0℃~30℃ |
|
General |
|
|
Dimensions |
116mm ×116mm ×205mm |
|
Effective radiation surface |
70mm ×70mm |
|
Power |
150W,220VAC |
|
Mechanical interface |
2×1/4-20UNC, 30mm spacing, 8mm depth |
|
Weight |
2.07kg |
