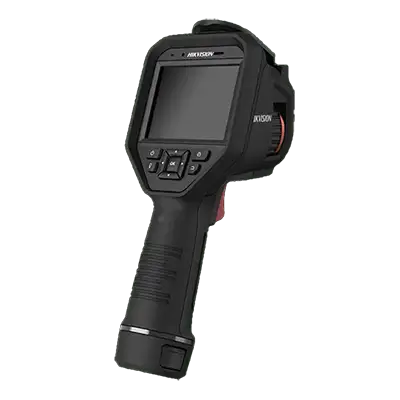

DS-2TP21B-6AVF/W

Thermal Module

Image sensor

Uncooled Focal Plane Arrays

Resolution

25Hz: 160 × 120

Pixel Pitch

17μm

Response waveband

8μm to 14μm

NETD

< 40 mk (@ 25 °C,F#=1.0)

Field of View

25° × 18.7°

Focal length

6.2 mm (Manual focus)

IFOV

2.74 mrad

Aperture

F 1.1

Optical Module

Picture Resolution

Configurable: 2 MP, 5 MP, 8 MP

Video Resolution

640 × 480

Image Display

Monitor

640 × 480 resolution 3.5’’ LCD touch display

Palettes

Black hot, White hot, Red hot, Rainbow, Ironbow, Fusion, Rain

Digital Zoom

Thermal：1×, 2×, 4×

Thermal / Optical

Thermal / Optical / Fusion image / Picture in picture

Picture in Picture

Support Thermal View in Optical View

Fusion

Support (Thermal View and Optical View Combined)

Record Video

Support on-board video recording

Thermography

Rules

Max. Temperature; Min. Temperature; Center Temperature; Custom Point / Line / Area Thermography

Range

30°C to 45°C

Accuracy

±0.5°C

Battery

Battery Type

Dismountable and rechargeable Li-ion Battery

Battery Operating Time

5 hours in normal temperature, with Wi-Fi, Bluetooth, and supplement light off.

4 hours in normal temperature, with Wi-Fi, Bluetooth, and supplement light on.

Storage

Built-in memory module (16 G)


Thermal / Optical / Fusion image

Video

Thermal / Optical / Fusion image

Wi-Fi

Support

Text Comment

Support

Voice Comment

Support

Language

English

General

Power

5 VDC / 2 A

Power Consumption

Max. 4.5 W

Hardware Interface

Type-C Interface

Working Temperature

15°C to 35 °C

Protection level

IP54

Drop Test Height

2 m (6.56 feet)

Dimension

244 mm × 100 mm × 104 mm (9.6 ″ × 3.9 ″ × 4.1 ″)

Weight

With Battery: 653 g (1.44 lb)

Without Battery: 511 g (1.13 lb)
