DS-7104NI-Q1/M

DS-7104NI-Q1/M

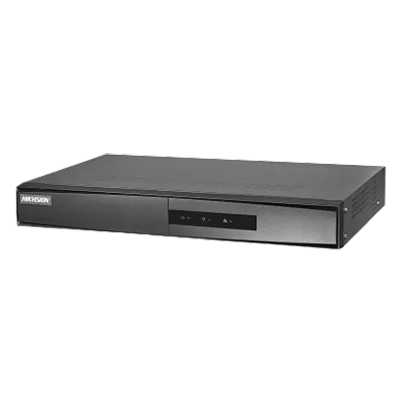

Hikvision DS-7104NI-Q1/M Value Series 4 Channel NVR, 4-ch network camera inputs, Incoming/Outgoing Bandwidth: 40Mbps/60Mbps, HDMI/VGA Output, 1 SATA interface, Supports line crossing and intrusion detection, Up to 4-ch 1080p decoding capability, 12 VDC, 1.5 A.

IP Video Input

Up to 4 IP cameras can be connected

Video Output

HDMI/VGA Outputs

Decoding Capacity

2-ch@4 MP or 4-ch@1080p

Bandwidth

Incoming bandwidth: 40 Mbps

Outgoing bandwidth: 60 Mbps

Decoding Format

Supports H.265+/H.265/H.264+/H.264 Video formats

Interface

1 SATA interface connectable for recording and backup

Resolution

Live view, storage, and playback of the connected camera at up to 4 MP resolution

Smart Function

Supports line crossing and intrusion detection

Video and Audio

IP Video Input

4-ch , Up to 6 MP resolution

Incoming Bandwidth

40 Mbps

Outgoing Bandwidth

60 Mbps

HDMI Output

1-ch, 1920 × 1080p / 60Hz, 1600 × 1200 / 60Hz, 1280 × 1024 / 60Hz, 1280 × 720 / 60Hz

VGA Output

1-ch, 1920 × 1080p / 60Hz, 1600 × 1200 / 60Hz, 1280 × 1024 / 60Hz, 1280 × 720 / 60Hz

Video Output Mode

HDMI / VGA simultaneous output

Decoding

Decoding Format

H.265+ / H.265 /  H.264+ / H.264

Recording Resolution

6 MP / 4 MP / 3 MP / 1080p / UXGA  / 720p / VGA / 4CIF / DCIF /  2CIF / CIF / QCIF

Synchronous playback

4-ch

Decoding Capability

4-ch@1080p (30 fps) or 2-ch@4 MP (30 fps) or 1-ch@6 MP (30 fps)

Stream Type

Video, Video & Audio

Network

Remote Connection

16

Network Protocol

TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP , UPnP™

Network Interface

1, RJ-45 10/100Mbps self-adaptive Ethernet interface

Auxiliary Interface

SATA

1 SATA interface

Capacity

Up to 6TB capacity for each disk

Alarm In/Out

N/A

USB Interface

Rear panel: 2 × USB 2.0

General

Power Supply

12 VDC, 1.5 A

Consumption

10 W

Working Temperature

-10 to +55º C (+14 to +131º F)

Working Humidity

10% to 90%

Dimension (W × D × H)

265 × 223 × 48 mm (10.4" × 8.8" × 1.9")

Weight

1 kg (2.2 lb)

Certification

CE

EN50130-4, EN 61000-3-2,EN 61000-3-3
