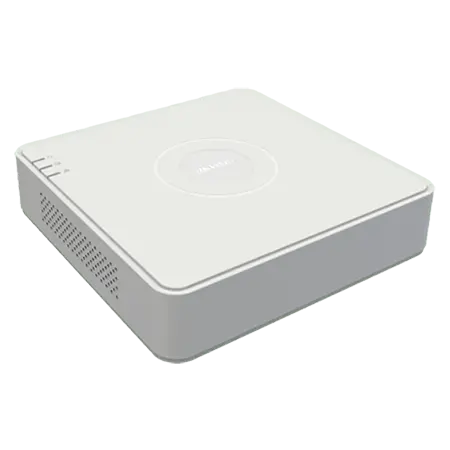

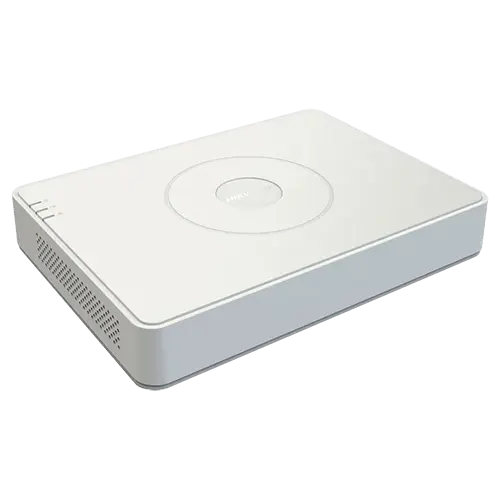

DS-7116HGHI-K1

Hikvision DS-7116HGHI-K1 16 Channel Turbo HD DVR, H.265 Pro+/H.265 Pro/H.265 video compression, HDTVI/AHD/CVI/CVBS/IP video input, Encoding resolution : 1080p lite / 720p / VGA / WD1 / 4CIF / CIF, Up to 10TB capacity per HDD, 12 VDC, 1.6A.

https://www.esco.pk/web/image/product.template/6721/image_1920?unique=8dc91d6
  • Type
  • DVR Series
  • Channels
  • SATA Interfaces (HDD Slots)

Rs. 0.00 0.0 PKR Rs. 0.00

Not Available For Sale

This combination does not exist.

Add to Cart
Add to wishlist Compare
Contact Us
Hikvision
Type: Turbo HD
DVR Series: 7100HGH
Channels: 16-32 Ch
SATA Interfaces (HDD Slots): 1 HDD Slot

Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.

​

Analog Video Input

16 Channel BNC interface DVR

Video Compression

H.265 Pro+ / H.265 Pro video compression

Encoding Resolution

Encoding ability up to 1080p lite @ 15 fps

Video Input

5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)

Video Output

 VGA/HDMI Output

IP Cameras

Up to 18 network cameras can be connected on Enhanced IP Mode

Recording

Video compression

H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264

Encoding resolution

1080p lite/720p

Frame rate

Main stream:

For 1080p stream access: 1080p lite / 720p lite@15 fps;
For 720p stream access: 720p/WD1@15 fps;

Sub-stream:

For 1080p and 720p stream access: CIF/QVGA@15 fps

For standard definition stream access: CIF/QVGA@25 fps (P)/30 fps (N)

Video bit rate

32 Kbps to 4 Mbps

Dual stream

Support

Stream type

Video, Video & Audio

Audio compression

G.711u

Audio bit rate

64 Kbps

Video and Audio

IP video input

2-ch (up to 18-ch)

Up to 5 MP resolution

Support H.265+ / H.265 / H.264+ / H.264 IP cameras

Analog video input

16-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI input

1080p25, 1080p30, 720p25, 720p30

AHD input

1080p25, 1080p30, 720p25, 720p30

HDCVI input

1080p25, 1080p30, 720p25, 720p30

CVBS input

PAL/NTSC

HDMI/VGA output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

HDMI/VGA simultaneous output

Audio input

1-ch RCA (2.0 Vp-p, 1 KΩ), and 16-ch via coaxial cable

Audio output

1-ch, RCA (Linear, 1 KΩ)

Two-way audio

1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input)

Synchronous playback

16-ch

Network

Remote connections

128

Network protocols

TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF

Network interface

1, RJ45 10/100 Mbps self-adaptive Ethernet interface

Auxiliary interface

SATA

1, SATA interface

Capacity

Up to 10 TB capacity for each disk

USB interface

Rear panel: 2 × USB 2.0

General

Power supply

12 VDC, 1.6 A

Consumption (without HDD)

≤ 7 W

Working temperature

-10 °C to 55 °C (14 °F to 131 °F)

Working humidity

10% to 90%

Dimension (W × D × H)

285 × 210 × 45 mm (11.2 × 8.3 × 1.8 inch)

Weight (without HDD)

≤ 1.8 kg (4.0 lb)
