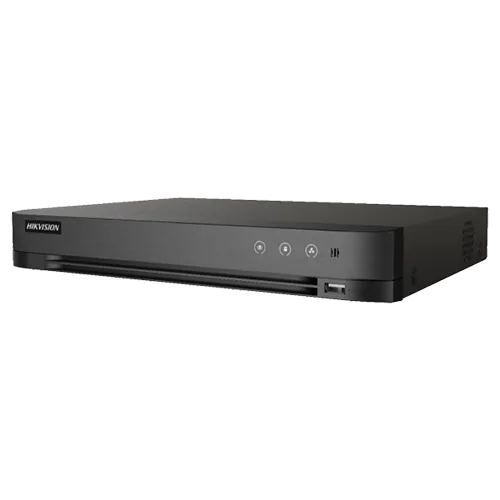

DS-7204HUHI-K1/E(S)

Hikvision 7200 Series Turbo HD DVR, 4 Channel DVR, 4 Analog Video input, 4-ch audio input, Support 4 Ch IP Video Input, Audio via coaxial cable, 1 SATA interface, 8 MP@8fps / 5 MP@12fps / 4 MP@15fps / 3 MP@18fps1080p / 720p @25fps, Alarm IO: 4/1, Support CVBS output, 12VDC

Rs. 0.00 0.0 PKR Rs. 0.00

This combination does not exist.

Add to Cart

Add to wishlist Compare

Please get in touch for pricing & availability.

Type: Turbo HD

DVR Series: 7200HUH

Channels: 4-8 Ch

SATA Interfaces (HDD Slots): 1 HDD Slot

Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.

Description

Analog Video Input

4-ch BNC interface DVR

Video Compression

H.265 Pro+/H.265 Pro/H.265 video compression

Encoding Resolution

Encoding ability up to 8 MP lite@15 fps, 5 MP@12 fps

Smart Function

Support multiple VCA (Video Content Analytics) events

Support line crossing detection and intrusion detection

2-ch sudden scene change detection

Video Input

HDTVI/AHD/CVI/CVBS/IP video input

Interface

Audio via Coaxial, 1 SATA Interface

Transmission Distance

Max. 800 m for 1080p and 1200 m for 720p HDTVI signal

Video Output

VGA/HDMI Output

HDMI and VGA Simultaneous Output

Recording

Video compression

H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264

Encoding resolution

When 8 MP Lite mode is not enabled:

8 MP / 5 MP / 4 MP / 3 MP / 1080p / 720p / WD1 / 4CIF / VGA / CIF

When 8 MP Lite mode is enabled:

8 MP Lite / 3MP / 1080P / 720P / WD1 / 4CIF / VGA / CIF

Frame rate

Main stream:

When 8 MP Lite mode is not enabled:

8 MP@8 fps / 5MP@12 fps / 4 MP@15 fps / 3 MP@18 fps 1080p / 720p / WD1 / 4CIF / VGA / CIF@25 fps (P) / 30 fps (N)

*: 8 MP@8 fps is only available for channel 1 of DS-7204HUHI-K1.

When 8 MP Lite mode enabled:

8 MP Lite / 3MP / 1080P / 720P / WD1 / 4CIF / VGA / CIF@15 fps

*: 8 MP Lite is only available for DS-7204HUHI-K1.

Sub-stream:

WD1 / 4CIF / CIF@25fps (P) / 30fps (N)

Video bit rate

32 Kbps to 10 Mbps

Dual stream

Support

Stream type

Video, Video & Audio

Audio compression

G.711u

Audio bit rate

64 Kbps

Video and Audio

IP video input

4-ch (up to 8-ch)

Up to 8 MP resolution

Support H.265+ / H.265 / H.264+ / H.264 IP cameras

Analog video input

4-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI input

8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25

AHD input

5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30

HDCVI input

5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30

CVBS input

PAL / NTSC

CVBS output

N/A

VGA output

1-ch, 1920 × 1080 / 60Hz, 1280 × 1024 / 60Hz, 1280 × 720 / 60Hz, 1024 × 768 / 60Hz

HDMI output

1-ch, 1920 × 1080 / 60Hz, 1280 × 1024 / 60Hz, 1280 × 720 / 60Hz, 1024 × 768 / 60Hz

HDMI and VGA Simultaneous Output

Audio input

1-ch, RCA (2.0 Vp-p, 1 KΩ)

Audio output

1-ch, RCA (Linear, 1 KΩ)

Two-way audio

1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Synchronous playback

4-ch

Network

Remote connection

Network protocol

TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF

Network interface

1, RJ45 10M/100M self-adaptive Ethernet interface

Auxiliary interface

SATA

1 SATA interface

Capacity

Up to 10 TB capacity for each disk

Serial interface

N/A

USB interface

2 × USB 2.0

Alarm in/out

N/A

General

Power supply

12 VDC

Consumption (without HDD)

≤ 6 W

Working temperature

-10 °C to +55 °C (+14 °F to +131 °F)

Working humidity

10% to 90%

Dimension (W × D × H)

265 × 225 × 48 mm (10.4 × 8.9 × 1.9 inch)

Weight (without HDD)

≤ 1.6 kg (3.5 lb)
