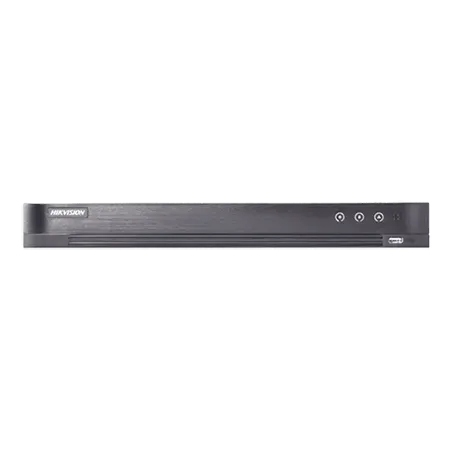

DS-7216HUHI-K2

Hikvision 16 Channel Turbo DVR, HD/AHD/Analog Interface, Input: 16-ch Analog Video, Enhanced IP mode: 16-ch IP input, H.265Pro+/H.265Pro/H.265/H.265+ Compression, 8 MP@8fps / 5 MP@12fps / 4MP@15fps / 3MP@18fps 1080p/720p@25fps, 1U case, Support 4K HDMI Output, 2 SATA Interface (w/o HDD).

Type
- Turbo HD
DVR Series
- 7200HUH
Channels
- 16-32 Ch
SATA Interfaces (HDD Slots)
- 2 HDD Slots

Rs. 0.00 0.0 PKR Rs. 0.00

This combination does not exist.

Add to Cart

Add to wishlist Compare

Type: Turbo HD

DVR Series: 7200HUH

Channels: 16-32 Ch

SATA Interfaces (HDD Slots): 2 HDD Slots

Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.

Description

Analog Video Input

16-ch BNC with 2 SATA Interface DVR

Video Compression

H.265 Pro+/H.265 Pro/H.265 video compression

Encoding Resolution

Encoding ability up to 8 MP lite@15 fps, 5 MP@12 fps

Smart Function

Support multiple VCA (Video Content Analytics) events

Support line crossing detection and intrusion detection

2-ch sudden scene change detection

Video Input

HDTVI/AHD/CVI/CVBS/IP video input

Video Output

VGA/HDMI Output

Transmission Distance

Max. 800 m for 1080p and 1200 m for 720p HDTVI signal

Interface

Audio via Coaxial

Alarm In/Out : 4/1

Video / Audio input

Video compression

H.265+ / H.265 / H.264+ / H.264

Analog video input

16-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI input

8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25

AHD input

1080p25, 1080p30, 720p25, 720p30

HDCVI input

1080p25, 1080p30, 720p25, 720p30

CVBS input

PAL / NTSC

IP video input

4-ch

Up to 6 MP resolution

Supports H.265+ / H.265 / H.264+ / H.264 IP cameras

Audio compression

G.711u

Audio input

4-ch, RCA (2.0 Vp-p, 1 KΩ)

Video / Audio output

CVBS output

1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480

HDMI / VGA Output

VGA: 1-ch, 1920 × 1080 / 60Hz, 1280 × 1024 / 60Hz, 1280 × 720 / 60Hz, 1024 × 768 / 60Hz

HDMI: 1-ch, 4K (3840 × 2160) / 30Hz, 2K (2560 × 1440) / 60Hz, 1920 × 1080 / 60Hz, 1280 × 1024 / 60Hz, 1280 × 720 / 60Hz, 1024 × 768 / 60Hz

Encoding resolution

8 MP / 5 MP / 4 MP / 3 MP / 1080p / 720p / WD1 / 4CIF / VGA / CIF

Frame rate

Main stream:

8 MP@8fps / 5 MP@12fps / 4 MP@15fps / 3 MP@18fps 1080p / 720p / WD1 / 4CIF / VGA / CIF@25fps (P) / 30fps (N)

Sub-stream:

WD1 / 4CIF / CIF@25fps (P) / 30fps (N)

Video bit rate

32 Kbps to 10 Mbps

Audio output

1-ch, RCA (Linear, 1 KΩ)

Audio bit rate

64 Kbps

Dual stream

Support

Stream type

Video, Video & Audio

Synchronous playback

16-ch

Network management

Remote connections

128

Network protocols

TCP / IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF

Hard disk

SATA

2 SATA interface

Capacity

Up to 8 TB capacity for each disk

External interface

Two-way audio input

1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the 1st audio input)

Network interface

1, RJ45 10M / 100M / 1000M self-adaptive Ethernet interface

USB interface

Front panel: 1 × USB 2.0

Rear panel: 1 × USB 3.0

Serial interface

RS-485 (half-duplex)

Alarm in / out

16 / 4

General

Power supply

12 VDC

Consumption (without HDD)

≤ 25 W

Working temperature

-10 ºC to +55 ºC (+14 ºF to +131 ºF)

Working humidity

10% to 90%

Dimensions (W × D × H)

380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch

Weight (without HDD)

≤ 2 kg
