DS-K2210

Hikvision DS-K2210 Elevator Master Controller, TCP/IP, RS-485, and Wiegand, Up to 128 floors permissions can be controlled, Supports adding 20,000 normal cards and saving 50,000 events, 1 Panic Button; 1 Fire Alarm Button; 1 Maintenance Button, Watchdog and Tamper-proof function, 12 VDC.

https://www.esco.pk/web/image/product.template/24044/image_1920?unique=d5a5529

    Rs. 0.00 0.0 PKR Rs. 0.00

    Not Available For Sale

    This combination does not exist.

    Add to Cart
    Add to wishlist Compare

    Please get in touch for pricing & availability.

    Contact Us
    Hikvision

    Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.

    ​

    Elevator Master Controller

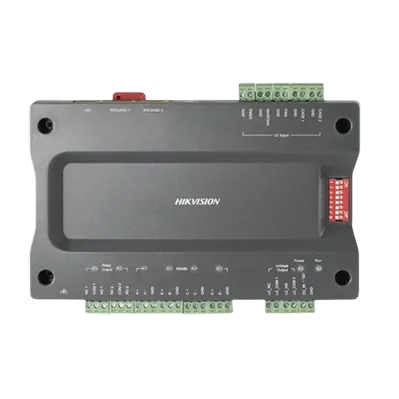

    Hikvision DS-K2210 Elevator Master Controller

    Capacity

    20,000 cards and 50,000 events storage

    Input Interface

    1 Panic Button; 1 Fire Alarm Button; 1 Maintenance Button

    Output Interface

    Output Interface: 5 Relay Outputs

    Processor

    32 bit

    Communication

    TCP/IP, RS-485, and Wiegand

    Normal Card/Event

    20,000 Cards and 50,000 Events

    Indicator

    Power On: Solid Green

    Running Properly: Flashing Green Running Exception: Solid Red

    Serial Port Not Communicating: Off Serial Port Communicating: Solid Green Relay NC: Off

    Relay NO: Solid Green Network Disconnected: Off

    Network Cable Connected: Solid Yellow, Flashing Green Network Armed: Solid Yellow, Flashing Green

    Internal Clock

    Support

    Card Reader

    Up to 2 RS-485 Card Readers or 2 Wiegand Card Readers

    Input Interface

    1 Panic Button; 1 Fire Alarm Button; 1 Maintenance Button

    Output Interface

    5 Relay Outputs

    RTC

    Support

    Power Supply

    12 VDC±15%

    Working Temperature

    -40°F to 158°F

    Working Humidity

    0% to 90% (No Condensation)

    Dimensions

    167(L)mm * 105(W)mm * 30(H)mm
