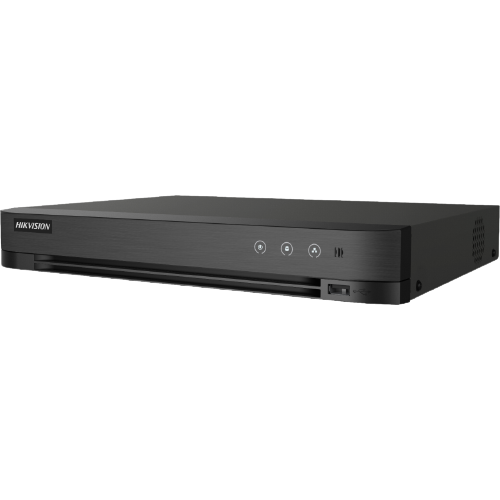

iDS-7216HQHI-M1/S

Motion Detection 2.0

Human/Vehicle Analysis

Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

Quick search by object or event type is supported

Perimeter Protection

Human/Vehicle Analysis

Up to 4-ch

Recording

Video compression

H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264

Encoding resolution

Main stream:

When 1080p lite mode not enabled: For 4 MP stream access:

4 MP [email protected] fps; 1080p lite/[email protected] fps (P)/30 fps (N)

For 3 MP stream access: 3 MP/1080p/720p @15 fps

For 1080p stream access:

1080p/[email protected] fps; VGA/WD1 @25 fps (P)/30 fps (N)

For 720p stream access: 720p/VGA @25 fps (P)/30 fps (N) When 1080p Lite mode enabled:

4 MP lite/3 [email protected] fps; 1080p lite/720p lite @25 fps (P)/30 fps (N)

Sub-stream:

WD1/[email protected] fps; [email protected] fps (P)/30 fps (N)

Video bitrate

32 Kbps to 6 Mbps

Dual stream

Support

Stream type

Video, Video & Audio

Audio compression

G.711u

Audio bitrate

64 Kbps

Video and Audio

IP video input

2-ch (up to 18-ch)

Enhanced IP mode on:

8-ch (up to 24-ch), each up to 4 Mbps

Up to 6 MP resolution

Support H.265+ / H.265 / H.264+ / H.264 IP cameras

Analog video input

16-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI input

[email protected] fps, 4 [email protected] fps, 4 [email protected] fps, 3 [email protected] fps, 1080p30, [email protected] fps, [email protected] fps, [email protected] fps, [email protected] fps, [email protected] fps

*: The 3 MP signal input is only available for channel 1 of iDS-7204HQHI-M1/S, for channel 1/2 of iDS-7208HQHI-M1/S, and for channel 1/2/3/4 of iDS- 7216HQHI-M1/S.

AHD input

4 [email protected] fps, 4 [email protected] fps, [email protected] fps, [email protected] fps, [email protected] fps, [email protected] fps

HDCVI input

4 [email protected] fps, 4 [email protected] fps, [email protected] fps, [email protected] fps, [email protected] fps, [email protected] fps

CVBS input

PAL/NTSC

CVBS output

1-ch, BNC (1.0 Vp-p, 75 Ω),

resolution: PAL: 704 × 576, NTSC: 704 × 480

HDMI output

1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz

VGA output

1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz

Video output mode

HDMI/VGA simultaneous output

Audio input

1-ch, RCA (2.0 Vp-p, 1 KΩ)

16-ch via coaxial cable

Audio output

1-ch, RCA (Linear, 1 KΩ)

Two-way audio

1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Synchronous playback

16-ch

Network

Remote connection

128

Network protocol

TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF

Network interface

1, RJ45 10/100/1000 Mbps

self-adaptive Ethernet interface

Auxiliary interface

SATA

1 SATA interface, up to 10 TB capacity for each disk

Serial interface

RS-485 (half-duplex)

USB interface

Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0

Alarm in/out3

N/A (optional to support)

General

Power supply

12 VDC, 2 A

Consumption (without HDD)

≤ 24 W

Working temperature

-10 °C to 55 °C (14 °F to 131 °F)

Working humidity

10% to 90%

Dimension (W × D × H)

315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
