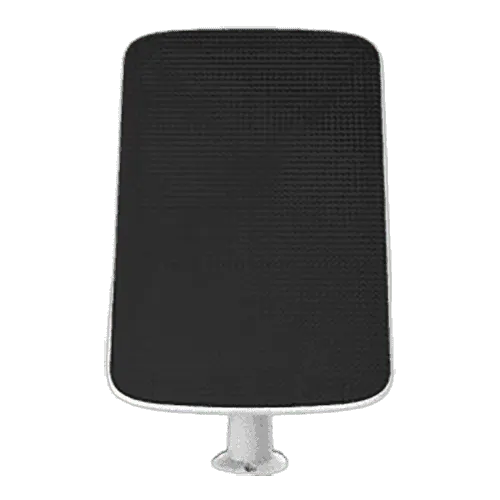

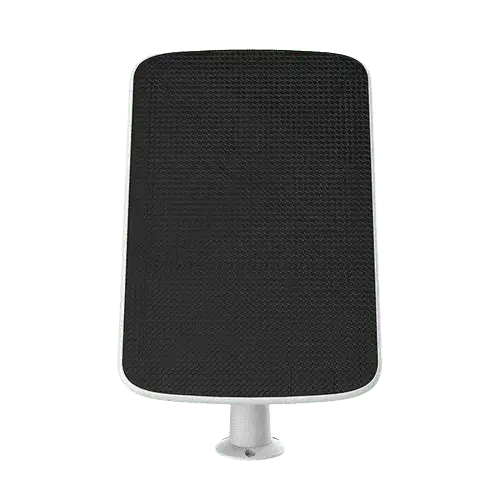

Ezviz CS-CMT-Solar Panel-C Solar Charging Panel Designed for EZVIZ Battery-Operated Cameras, Power Voltage 6.0V ±5%, Max Power Current 1030mA ±5%, Max. Power: 6.18W, Transformation efficiency: 0.216, Monocrystalline solar cells, IP65.
|
Performance Parameter |
|
|
Power voltage |
6V ± 5% |
|
Max. Power current |
1030 mA ± 5% |
|
Max. Power |
6.18 W |
|
Transformation efficiency |
0.216 |
|
Operation temperature |
-20°C - 60°C (-4°F - 140°F); Humidity 90% or less (non-condensing) |
|
IP Grade |
IP65 |
|
Manufacturing process |
|
|
Manufacturing process |
Monocrystalline solar cells, PET laminated wood |
|
Product Dimensions |
292.3 × 194.3 × 15.1 mm (11.5 × 7.6 × 0.59 inch) |
|
Packaging Dimensions |
202.5 × 78.0 × 299.0 mm (7.9 × 3.0 × 11.7 inch) |
|
Net Weight |
1045 g (36.8 oz) |
|
In the box: |
|
|
In the box: |
- Solar Panel |
|
- Adjustable Mounting Bracket |
|
|
- Screw Kit |
|
|
- Drill Template |
|
|
- Quick Start Guide |
|
|
Certifications: |
|
|
Certifications: |
ROHS / REACH / WEEE |
