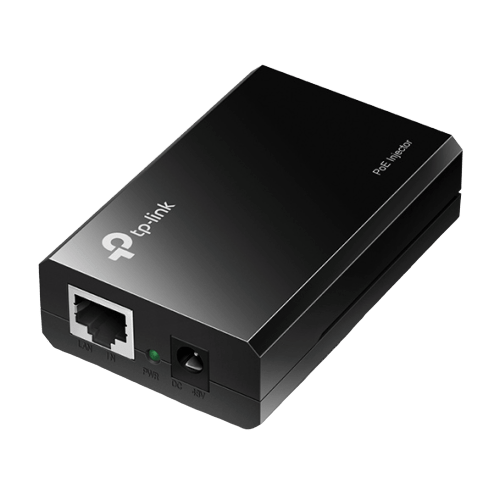

TP-Link PoE Injector, 2 10/100/1000Mbps RJ45 Port, AUTO Negotiation / AUTO MDI / MDIX, Compatible With IEEE 802.3af Compliant PDs, Delivers Power Up To 100 Meters, Auto-Determine The Necessary Power Requirements, 15.4W
Ports
1 10/100/1000Mbps Auto-Negotiation RJ45 LAN port(LAN IN)
1 10/100/1000Mbps Auto-Negotiation RJ45 PoE port(POWER+DATA OUT)
1 power socket(DC IN)
Basic Function
Compatible With IEEE 802.3af Compliant PDs
Delivers Power Up To 100 Meters
Auto-Determine The Necessary Power Requirements
Plug & Play
Plug & Play installation, requires no configuration
Standards | IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3af |
Ports | 1 10/100/1000Mbps Auto-Negotiation RJ45 LAN port (LAN IN) 1 10/100/1000Mbps Auto-Negotiation RJ45 PoE port (POWER+DATA OUT) 1 power socket(DC IN) |
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100m) |
Basic Function | Auto-Sensing Algorithm enables providing power with 802.3af PD Delivers power and data over the single cable up to 100 meters Auto-determine the necessary power requirements Plug-and-Play |
Power | Input: External 48VDC power adapter Output: Auto-determine the necessary Power requirements(max. 15.4W) |
LED Indicator | ON: Supplying power normally Flashing: NO PD connected / Supplying power abnormally Off: No Power Supply |
Dimensions ( W x D x H ) | 80.8 x 54 x 24mm |
Certification | FCC, CE, RoHS |
Package Contents | TL-POE150S, Power Adapter, RJ45 cable, Installation Guide |
Environment | Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 10%~90%RH non-condensing Storage Humidity: 5%~90%RH non-condensing |
