Face Access Terminal

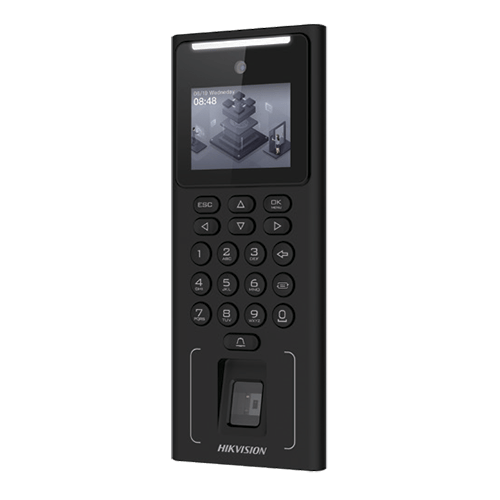

Hikvision DS-K1T321MFWX Face Recognition Terminal
Camera
2MP wide-angle lens
Interface
Supports wired network and Wi-Fi (AP mode)
LCD Screen
2.4-inch LCD screen
User Support
Max.500 Faces Capacity, Max.3,000 Fingerprints Capacity, Max.3,000 Mifare Cards
Function
Support Face Anti-Spoofing, Support Time Attendance
|
Display |
|
|
Screen size |
2.4 inch |
|
Type |
LCD |
|
Video |
|
|
Lens |
1 |
|
Resolution |
2 MP (video stream: 720P) |
|
FOV |
HFOV = 25°; VFOV = 43° |
|
Network |
|
|
Wired network |
Support |
|
Wi-Fi |
Support, 2.4 G, 802.11b/g/n |
|
Interface |
|
|
Network interface |
1 RJ-45, 10/100 M self-adaptive |
|
Lock control |
1 |
|
Exit button |
1 |
|
Door contact input |
1 |
|
TAMPER |
1 |
|
RS-485 |
1 RS-485 (Half duplex, HIKVISION) |
|
USB |
1 |
|
Authentication |
|
|
Card type |
M1 card |
|
General |
|
|
Power supply |
12 VDC |
|
Power consumption |
≤ 6 W |
|
Working temperature |
-10 °C to 55 °C (14 °F to 131 °F) |
|
Working humidity |
0 to 90% (No condensing) |
|
Keypad |
Support |
|
Function |
|
|
Face anti-spoofing |
Support |
|
Hik-Partner Pro |
Support |
|
Face recognition |
Support |
