Value Series Face Access Terminal

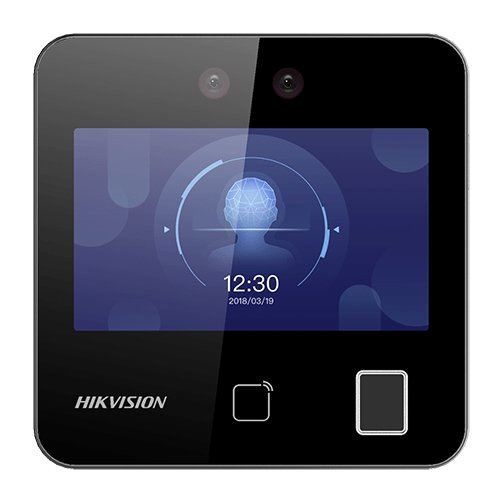

Hikvision DS-K1T343MFWX Value Series Face Recognition Terminal
Camera
2 Mega Pixel wide-angle lens
User Support
Max.1500 Faces Capacity, Max.3000 Fingerprints Capacity, and Max.3000 Cards
LCD Touch Screen
4.3-inch (480 × 272 Resolution) Capacitive Touch Screen
Function
Support Face Anti-Spoofing, Time Synchronization
Interface
Network Interface x1, RS-485 x1, Wiegand x1, Lock Output x1, Exit Button x1, USB x1
|
System |
|
|
Operation system |
Linux |
|
Display |
|
|
Dimensions |
4.3-inch |
|
Resolution |
480 × 272 |
|
Type |
LCD |
|
Operation method |
Capacitive touch screen |
|
Video |
|
|
Pixel |
2 MP |
|
Lens |
× 2 |
|
Video standard |
PAL (Default) and NTSC |
|
Network |
|
|
Wired network |
10 M/100 M self-adaptive |
|
Wi-Fi |
Support |
|
Interface |
|
|
Network interface |
1 |
|
RS-485 |
1 |
|
Wiegand |
1 |
|
Lock output |
1 |
|
Exit button |
1 |
|
Door contact input |
1 |
|
IO input |
- |
|
IO output |
- |
|
TAMPER |
1 |
|
USB |
1 |
|
Capacity |
|
|
Card capacity |
3,000 |
|
Face capacity |
1,500 |
|
Fingerprint capacity |
3,000 |
|
Event capacity |
150,000 |
|
Authentication |
|
|
Card type |
Mifare 1 card |
|
Card reading frequency |
13.56 MHz |
|
Face recognition duration |
＜ 0.2 s |
|
Face recognition accuracy rate |
＞99% |
|
Face recognition distance |
0.3 to 1.5 m |
|
Fingerprint recognition duration |
＜1 s |
|
Function |
|
|
Face anti-spoofing |
Support |
|
Audio prompt |
Support |
|
Time synchronization |
Support |
|
General |
|
|
Power supply |
12 VDC/1 A |
|
Working temperature |
-10 °C to 40 °C (14 °F to 104 °F) |
|
Working humidity |
0 to 90% (No condensing) |
|
Dimensions |
118.4 mm × 118.4 mm × 21.8 mm (4.66" × 4.66" × 0.86") |
|
Application environment |
Indoor |
|
Installation |
Wall Mounting; Base Mounting |
|
Weight |
Gross weight: 0.71 kg (1.57 lbs) Net weight: 0.23 kg (0.51 lbs) |
