Detailed Video Capture
Capture lectures, meetings and presentations in 4K or Full HD.
4K & Full HD
AVONIC · CM32 SERIES

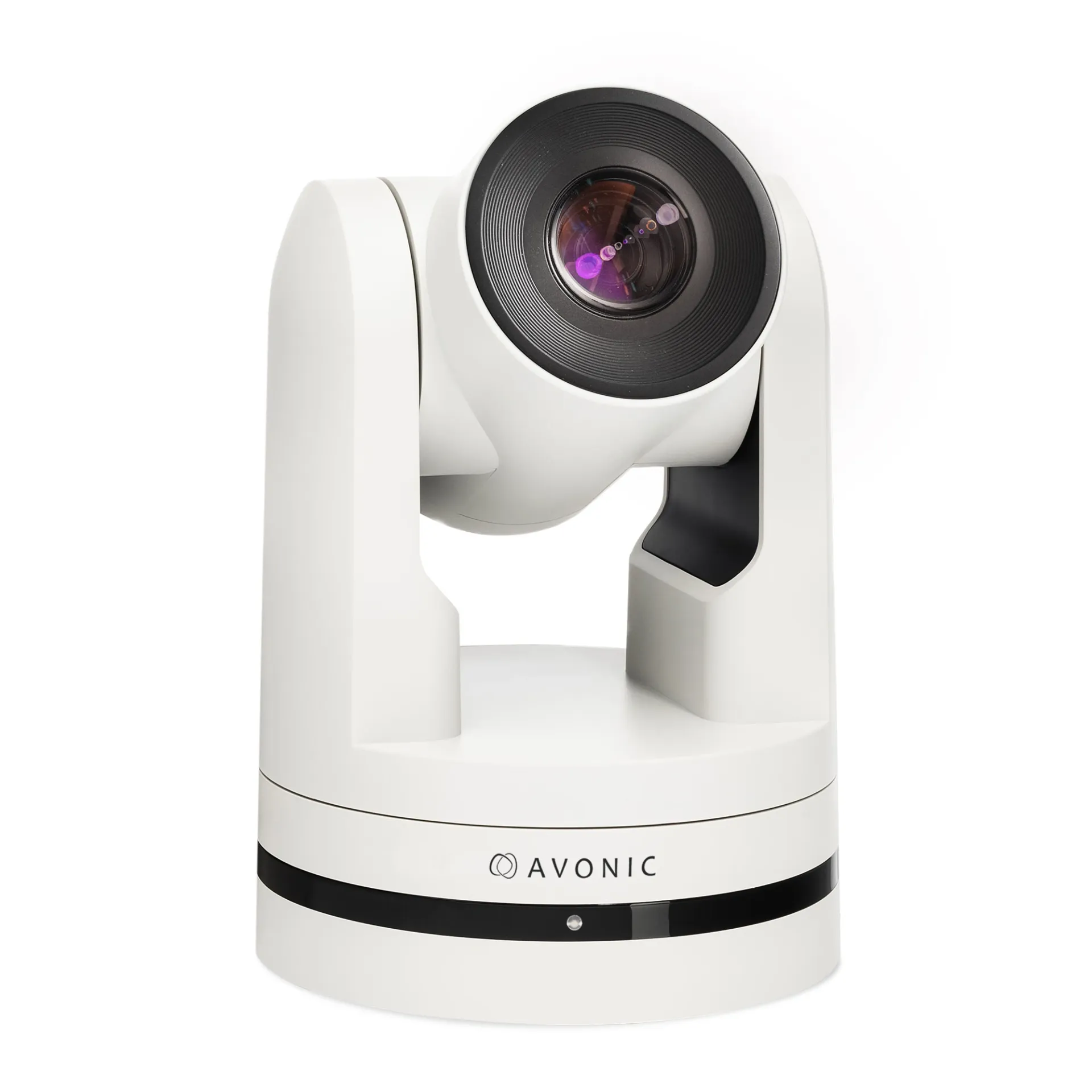

AV-CM32-IP-W 4K PTZ Camera with Built-In Tracking
Capture presentations, lectures and meetings with a white PTZ camera featuring presenter and hybrid tracking. Simultaneous HDMI, USB and IP outputs offer flexible connections for recording, streaming and professional AV integration.
- Presenter & Hybrid Tracking
- HDMI · USB · IP
- White Finish
Video Capture
4K & Full HD
For classrooms, meeting rooms and houses of worship.
Avonic Optimal Zoom
20× / 30×
20× in 4K · 30× in Full HD
Automatic Framing
Built-In Tracking
Presenter and Hybrid Tracking included.
AVONIC · CM32 SERIES
AV-CM32-IP-W 4K PTZ Camera with Built-In Tracking
Capture presentations, lectures and meetings with a white PTZ camera featuring presenter and hybrid tracking. Simultaneous HDMI, USB and IP outputs offer flexible connections for recording, streaming and professional AV integration.
- Presenter & Hybrid Tracking
- HDMI · USB · IP
- White Finish
Video Capture
4K & Full HD
For classrooms, meeting rooms and houses of worship.
Avonic Optimal Zoom
20× / 30×
20× in 4K · 30× in Full HD
Automatic Framing
Built-In Tracking
Presenter and Hybrid Tracking included.
AVONIC · APPLICATIONS
AV-CM32-IP-W Built for Your Space
Bring flexible video capture to classrooms, meeting rooms and houses of worship. Explore how PTZ control and built-in tracking support each environment.
CM32 SERIES · APPLICATION 01
CM32 Series · White PTZ Camera
Meeting Rooms
Capture speakers and presentations with remotely controlled pan, tilt and zoom. Simultaneous HDMI, USB and IP outputs provide flexible connections to the room’s AV setup.
CM32 SERIES · APPLICATION 02
CM32 Series · White PTZ Camera
Classrooms & Lecture Spaces
Follow the teacher during lessons and presentations. Hybrid Tracking can hold a fixed view at a predefined teaching zone, such as a whiteboard, then resume following when the presenter moves away.
CM32 SERIES · APPLICATION 03
CM32 Series · White PTZ Camera
Houses of Worship
Capture services and speakers using remote camera framing. Presenter Tracking can follow a moving speaker within a configured area, supporting video capture during services and presentations.
AVONIC · APPLICATIONS
AV-CM32-IP-W Built for Your Space
Bring flexible video capture to classrooms, meeting rooms and houses of worship. Explore how PTZ control and built-in tracking support each environment.
CM32 SERIES · APPLICATION 01
CM32 Series · White PTZ Camera
Meeting Rooms
Capture speakers and presentations with remotely controlled pan, tilt and zoom. Simultaneous HDMI, USB and IP outputs provide flexible connections to the room’s AV setup.
CM32 SERIES · APPLICATION 02
CM32 Series · White PTZ Camera
Classrooms & Lecture Spaces
Follow the teacher during lessons and presentations. Hybrid Tracking can hold a fixed view at a predefined teaching zone, such as a whiteboard, then resume following when the presenter moves away.
CM32 SERIES · APPLICATION 03
CM32 Series · White PTZ Camera
Houses of Worship
Capture services and speakers using remote camera framing. Presenter Tracking can follow a moving speaker within a configured area, supporting video capture during services and presentations.
Key specs
- Video: 4K & Full HD
- Zoom: 20× in 4K / 30× in HD
- Outputs: Simultaneous HDMI, USB & IP
- Tracking: Presenter & Hybrid Tracking
- Color: White
Avonic AV-CM32-IP-W Technical Specifications
Explore the Avonic AV-CM32-IP-W PTZ camera specifications, including imaging, zoom, camera movement, connectivity, streaming and power requirements.
Camera & Imaging
| Specification | Value |
|---|---|
| Resolution | Up to 4K30 |
| Sensor | Sony 1/2.8″, 8.42MP, 16:9 High SNR CMOS |
| Scanning Mode | Progressive |
| Zoom | 20× in 4K; 30× in HD — Avonic’s Optimal Zoom |
| Aperture | F1.8–F11 |
| Focal Length | 4.1–43 mm (±5%) |
| Shutter | Auto / Manual, 1/60–1/10000 |
| Minimum Illumination | 0.5 LUX @ F1.8 |
| White Balance | Auto, Manual, One Push; 2400–7100 K in 100 K steps |
| Backlight Compensation | Supported |
| Digital Noise Reduction | Supported |
| Signal-to-Noise Ratio | >50 dB |
| Horizontal Field of View | 68.5°–4.0° |
| Vertical Field of View | 40.5°–2.0° |
| Image Flip | Horizontal and vertical |
Pan, Tilt & Tracking
| Specification | Value |
|---|---|
| Pan Range | ±170° |
| Tilt Range | 120° — 30° down, 90° up |
| Pan Speed | 0.15–120°/s |
| Tilt Speed | 0.15–70°/s |
| Presets | 255 |
| Included Tracking | Hybrid Tracking, Presenter Tracking |
| Control | UVC, IR remote, IP |
| Control Protocols | VISCA over IP, HTTP API, ONVIF |
Video Outputs & Network Interface
| Specification | Value |
|---|---|
| HDMI Output | Up to 4K30 |
| USB Output | USB 2.0 Type B, maximum 2160p30 |
| Network Interface | RJ45, 100 Mbit/s |
| Simultaneous Outputs | HDMI, USB and IP |
IP Streaming
| Specification | Value |
|---|---|
| Video Encoding | H.265 / H.264 / MJPEG |
| H.265 Profile | Main |
| H.264 Profiles | Base, Main, High |
| Main Stream Resolutions | 3840×2160 / 1920×1080 / 1280×720 |
| Main Stream Frame Rate | Maximum 30 fps |
| Main Stream Bitrate | 64–40960 Kbps |
| Sub Stream Resolutions | 1920×1080 / 1280×720 / 720×480 / 640×480 / 640×360 / 320×240 / 320×180 |
| Sub Stream Frame Rate | Maximum 30 fps |
| Sub Stream Bitrate | 64–40960 Kbps |
| Bitrate Modes | CBR, VBR |
| Streaming Protocols | RTSP, RTMP, ONVIF, Multicast, Unicast |
Power
| Specification | Value |
|---|---|
| Input Voltage | 12 V |
| PoE | IEEE 802.3at, 15 W |
| Power Consumption | 15 W |
| Power Supply | 12 V, 2 A |
| Power Connector | EIAJ-4 – Philmore 255 plug |
Mechanical & Environmental
| Specification | Value |
|---|---|
| Color — This Variant | White |
| Dimensions (W × H × D) | 13.3 × 18 × 15.3 cm, excluding connectors |
| Weight | 1.6 kg |
| Mounting Thread | 1/4″-20 UNC |
| Operating Temperature | −5°C to +35°C |
| Storage Temperature | −20°C to +60°C |
| Operating Humidity | 20–95%, non-condensing |
| Box Dimensions | 26 × 24 × 24 cm |
| Included Items | Power adapter, remote control, USB cable |
Questions & answers
Know before you buy
Quick answers about the AV-CM32-IP-W, and how it compares.
Can the Avonic AV-CM32-IP-W output HDMI, USB and IP video simultaneously?
Yes. The Avonic AV-CM32-IP-W supports simultaneous HDMI, USB and IP outputs, allowing it to connect to different video destinations within the same AV installation.
Does the Avonic AV-CM32-IP-W require a separate tracking licence?
No. Presenter Tracking and Hybrid Tracking are included by default on the CM32. A separate licence is not required for these built-in tracking functions.
What zoom does the AV-CM32-IP-W support in 4K and Full HD?
The AV-CM32-IP-W provides 20× zoom in 4K and 30× zoom in Full HD, described by Avonic as Optimal Zoom. The zoom range depends on the selected video mode.
Which type of camera is suitable for recording classroom lectures?
A PTZ camera with presenter tracking is useful for lectures where the teacher moves around the presentation area. The Avonic AV-CM32-IP-W combines remote pan, tilt and zoom control with built-in tracking, and Avonic identifies classrooms as an intended application.
Can a camera follow a presenter without someone operating it throughout the session?
Yes. A camera with automatic presenter tracking, such as the Avonic CM32, can follow a speaker within a configured area. Suitable framing and tracking boundaries should be set and tested before the session.
What is the difference between presenter tracking and hybrid tracking?
Presenter Tracking follows a moving speaker. Hybrid Tracking adds predefined zones where the camera holds a fixed view for example, at a whiteboard and resumes following when the presenter leaves that zone. The Avonic CM32 includes both modes.
Where can I buy the Avonic AV-CM32-IP-W in Pakistan?
Contact Electronic Security Company (ESCO) in Pakistan for the Avonic AV-CM32-IP-W PTZ camera. Ask ESCO for current pricing, availability, delivery lead time and a project quotation covering suitable mounting and integration requirements.
