AVONIC · CM93 SERIES

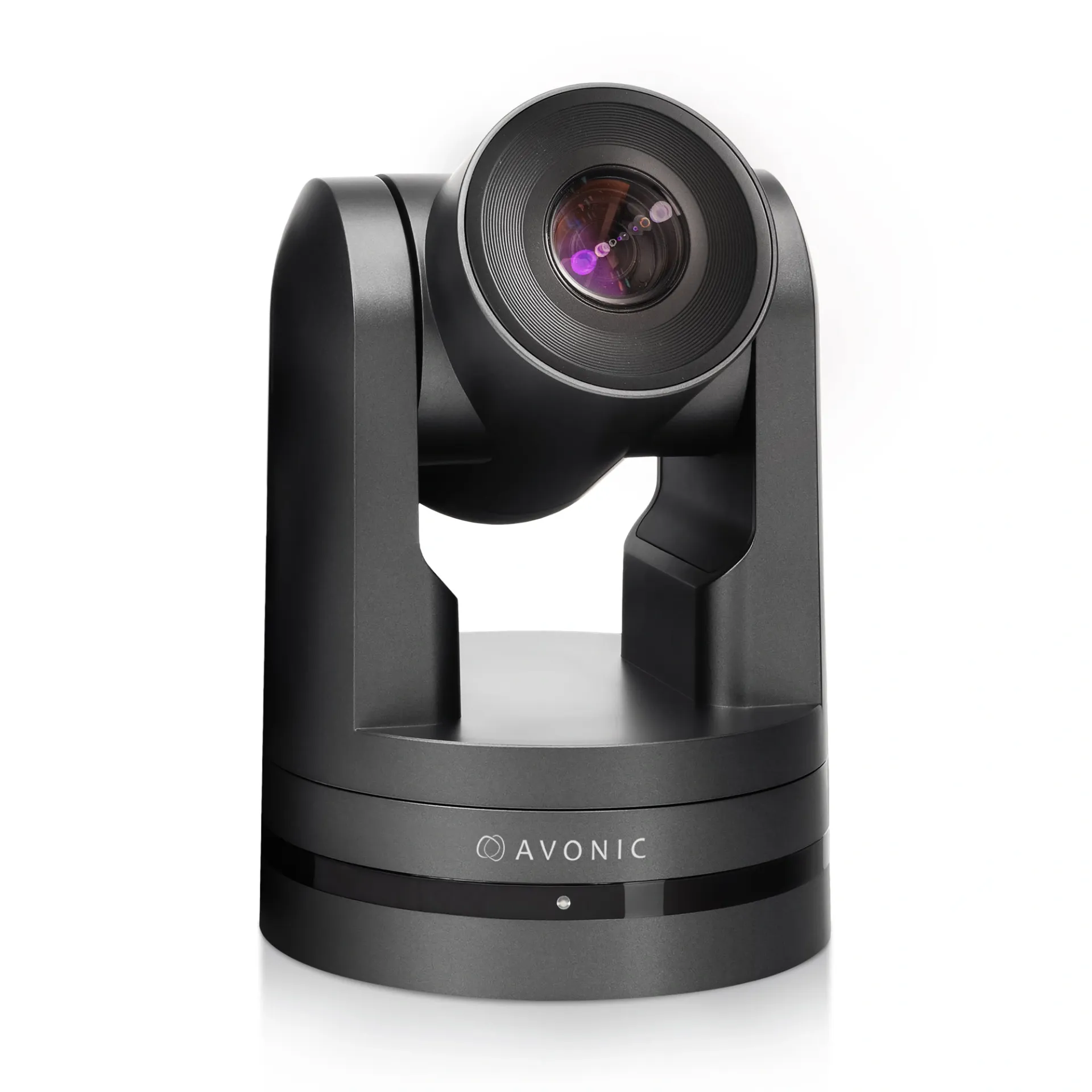

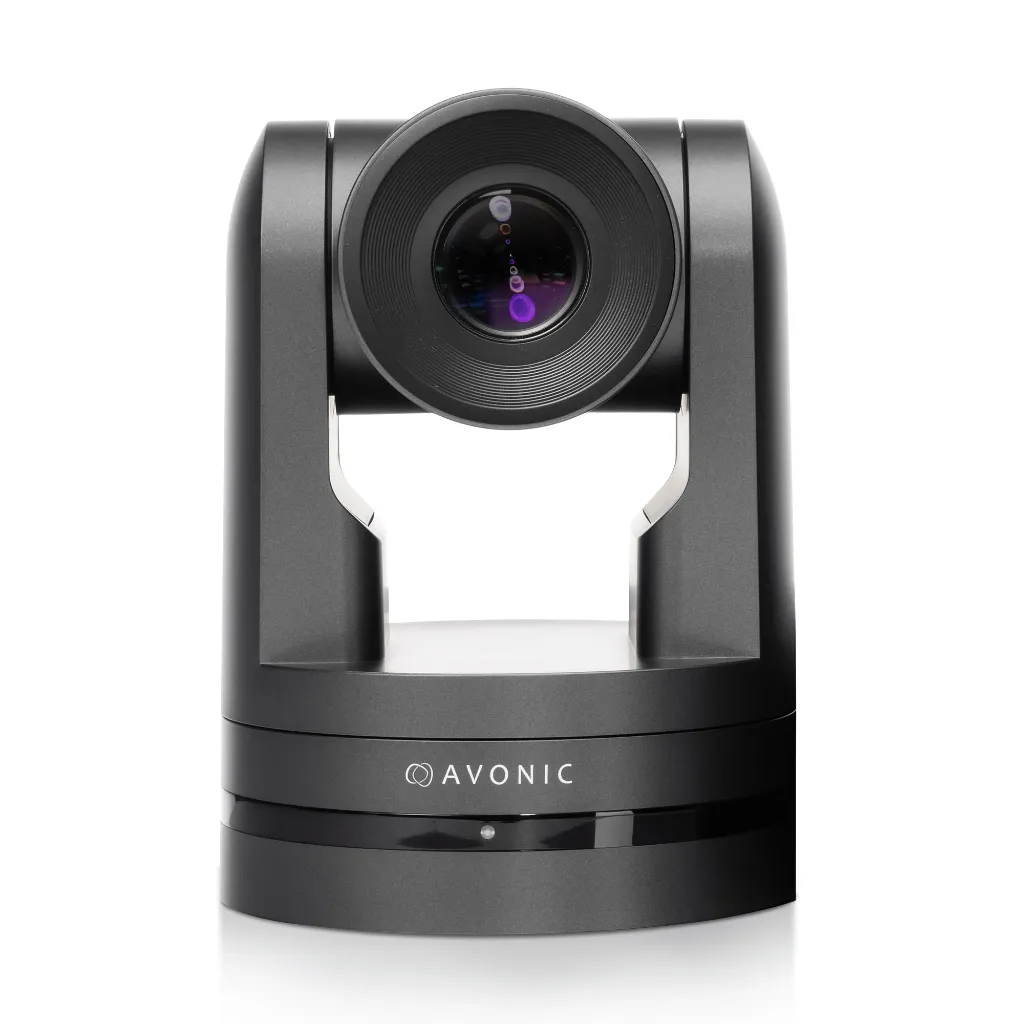

Capture lectures, conferences and live events with a black PTZ camera delivering 4K Ultra HD video at 60 frames per second. A Sony CMOS sensor with HDR support helps maintain image quality in challenging lighting, while simultaneous HDMI, 3G-SDI, USB and IP outputs provide flexible connections for recording, streaming and AV integration.
AVONIC · CM93 SERIES
Capture lectures, conferences and live events with a black PTZ camera delivering 4K Ultra HD video at 60 frames per second. A Sony CMOS sensor with HDR support helps maintain image quality in challenging lighting, while simultaneous HDMI, 3G-SDI, USB and IP outputs provide flexible connections for recording, streaming and AV integration.
AV-CM93-IP-B · BUILT-IN AI TRACKING
Keep the focus on the speaker with three intelligent tracking modes. The CM93 follows moving presenters, holds designated presentation areas and supports delegate tracking through compatible conference-system integration.
Follow the speaker with selectable framing and pan/tilt boundaries. Return to a preset position when the presenter leaves.
Hold a fixed view of a designated area, such as a whiteboard, then resume following the presenter when they leave that zone.
Use a compatible conference or control system to direct the camera to an active delegate, then maintain subtle tracking without zoom adjustments.
Conference Tracking requires compatible system integration. Confirm the conference system and camera firmware with ESCO when planning your installation.
AV-CM93-IP-B · BUILT-IN AI TRACKING
Keep the focus on the speaker with three intelligent tracking modes. The CM93 follows moving presenters, holds designated presentation areas and supports delegate tracking through compatible conference-system integration.
Follow the speaker with selectable framing and pan/tilt boundaries. Return to a preset position when the presenter leaves.
Hold a fixed view of a designated area, such as a whiteboard, then resume following the presenter when they leave that zone.
Use a compatible conference or control system to direct the camera to an active delegate, then maintain subtle tracking without zoom adjustments.
Conference Tracking requires compatible system integration. Confirm the conference system and camera firmware with ESCO when planning your installation.
AV-CM93-IP-B · IMAGE QUALITY
Professional video needs more than resolution alone. The CM93 combines 4K60 capture with a Sony CMOS sensor and HDR support for smooth motion and image quality in challenging lighting conditions.
Capture a presenter’s gestures and movement in Ultra HD at 60 frames per second. Compared with 30 fps capture, the higher frame rate records more moments of movement for smoother video during lectures and live presentations.
Daylight and room lighting can change throughout a presentation. A Sony CMOS sensor with HDR support helps maintain image quality in low and challenging light, while the glass lens supports natural colour rendering.
Match the output to your workflow: HDMI and the main IP stream support up to 4K60. USB supports up to 4K30, while 3G-SDI supports up to 1080p60.
AV-CM93-IP-B · IMAGE QUALITY
Professional video needs more than resolution alone. The CM93 combines 4K60 capture with a Sony CMOS sensor and HDR support for smooth motion and image quality in challenging lighting conditions.
Capture a presenter’s gestures and movement in Ultra HD at 60 frames per second. Compared with 30 fps capture, the higher frame rate records more moments of movement for smoother video during lectures and live presentations.
Daylight and room lighting can change throughout a presentation. A Sony CMOS sensor with HDR support helps maintain image quality in low and challenging light, while the glass lens supports natural colour rendering.
Match the output to your workflow: HDMI and the main IP stream support up to 4K60. USB supports up to 4K30, while 3G-SDI supports up to 1080p60.
Camera & Image
| Specification | Value |
|---|---|
| Maximum resolution | 4K UHD at 60 fps |
| Sensor | Sony 1/1.8″ CMOS, 8.42 MP |
| Zoom | 30× at 4K; 50× at Full HD — Avonic Optimal Zoom |
| Aperture | F1.6–F11 |
| Focal length | 7–172 mm, ±5% |
| Minimum illumination | 0.05 lux at F1.6 |
| Horizontal field of view | 59.2°–2.5° |
| Vertical field of view | 34.6°–1.4° |
| Signal-to-noise ratio | >50 dB |
| Digital noise reduction | Supported |
Pan, Tilt & Control
| Specification | Value |
|---|---|
| Pan range | ±170° |
| Tilt range | −30° to +90° |
| Pan speed | 0.15–120°/s |
| Tilt speed | 0.15–70°/s |
| Presets | 255; 0.1° accuracy |
| Control | UVC, IR, IP, serial |
Video Outputs & Connectivity
| Specification | Value |
|---|---|
| HDMI | HDMI 2.0; up to 4K60 |
| SDI | 3G-SDI; up to 1080p60 |
| USB | USB 2.0 Type-B; up to 2160p30 |
| Network | RJ45, Gigabit Ethernet |
| Serial | RS-232 mini-DIN-8; RS-485 |
Streaming & Audio
| Specification | Value |
|---|---|
| Video compression | H.265, H.264, MJPEG |
| Streaming protocols | RTSP, RTMP, ONVIF, SRT, multicast, unicast |
| Audio input | Balanced line-in, 5-way Phoenix |
| Audio encoding | AAC, 48 kHz |
Power
| Specification | Value |
|---|---|
| Input | 12 V DC |
| PoE | IEEE 802.3at PoE+ |
| Consumption | 18 W |
Mechanical & Environmental
| Specification | Value |
|---|---|
| Colour | Black |
| Weight | 2.5 kg |
| Mounting thread | ¼″-20 UNC |
| Operating temperature | −5°C to +35°C |
| Storage temperature | −20°C to +60°C |
| Operating humidity | 20–95%, non-condensing |
AI Tracking
| Specification | Value |
|---|---|
| Tracking modes | Presenter, Hybrid and Conference |
| Availability | Included as standard |
