AVONIC · CM93 SERIES
Capture lectures, conferences and live events with a white PTZ camera delivering 4K Ultra HD video at 60 frames per second. A Sony CMOS sensor with HDR support helps maintain image quality in challenging lighting, while simultaneous HDMI, 3G-SDI, USB and IP outputs provide flexible connections for recording, streaming and AV integration.
AVONIC · CM93 SERIES
Capture lectures, conferences and live events with a white PTZ camera delivering 4K Ultra HD video at 60 frames per second. A Sony CMOS sensor with HDR support helps maintain image quality in challenging lighting, while simultaneous HDMI, 3G-SDI, USB and IP outputs provide flexible connections for recording, streaming and AV integration.

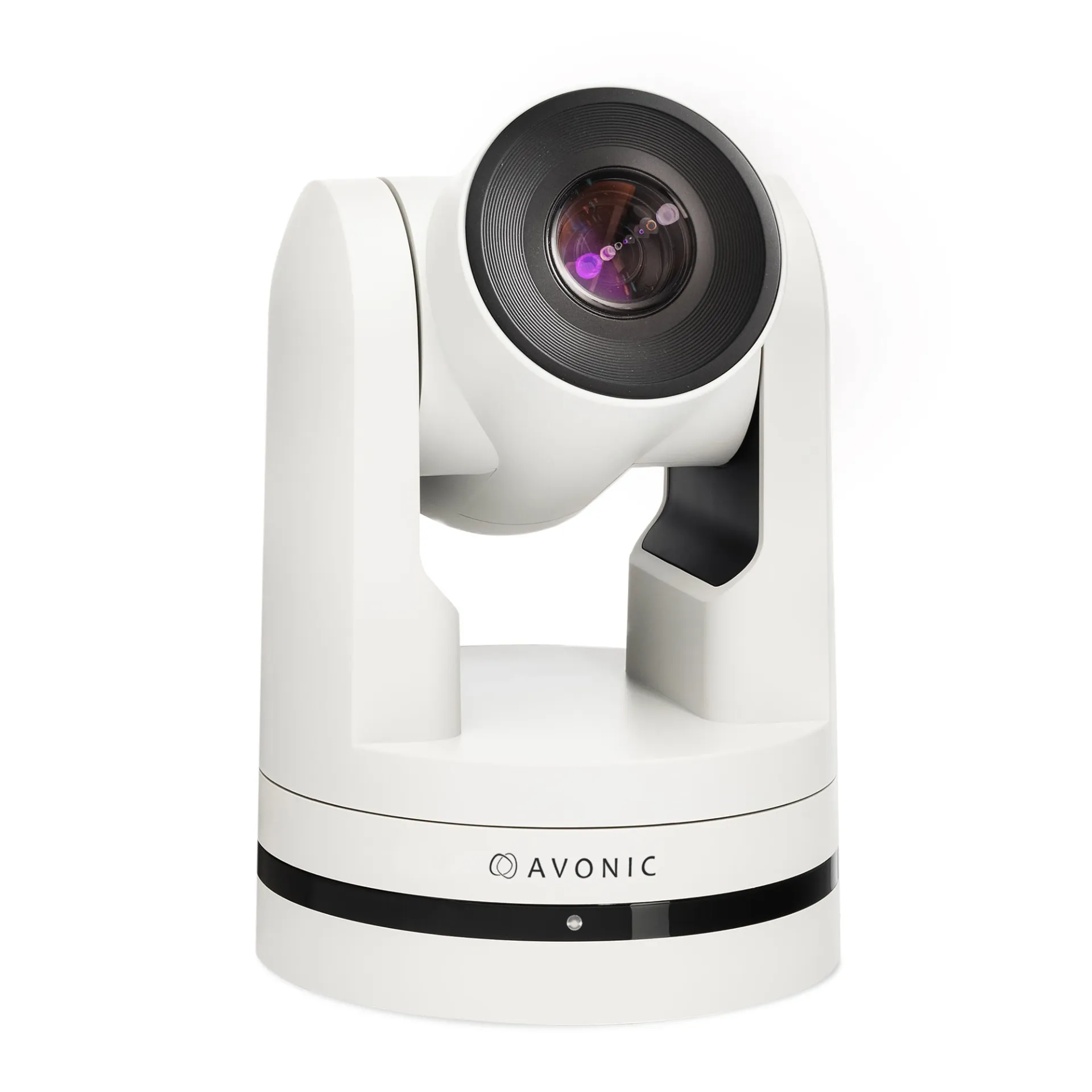

AV-CM93-IP-W · BUILT-IN AI TRACKING
Keep the focus on the speaker with three intelligent tracking modes. The AV-CM93-IP-W follows moving presenters, holds designated presentation areas and supports delegate tracking through compatible conference-system integration.
Follow the speaker with selectable framing and pan/tilt boundaries. Return to a preset position when the presenter leaves.
Hold a fixed view of a designated area, such as a whiteboard, then resume following the presenter when they leave that zone.
Use a compatible conference or control system to direct the camera to an active delegate, then maintain subtle tracking without zoom adjustments.
Tracking is included with firmware released on 2 October 2026. Older units may require updating. Conference Tracking requires compatible conference/control-system integration.
AV-CM93-IP-W · BUILT-IN AI TRACKING
Keep the focus on the speaker with three intelligent tracking modes. The AV-CM93-IP-W follows moving presenters, holds designated presentation areas and supports delegate tracking through compatible conference-system integration.
Follow the speaker with selectable framing and pan/tilt boundaries. Return to a preset position when the presenter leaves.
Hold a fixed view of a designated area, such as a whiteboard, then resume following the presenter when they leave that zone.
Use a compatible conference or control system to direct the camera to an active delegate, then maintain subtle tracking without zoom adjustments.
Tracking is included with firmware released on 2 October 2026. Older units may require updating. Conference Tracking requires compatible conference/control-system integration.
AV-CM93-IP-W · IMAGE QUALITY
The AV-CM93-IP-W combines 4K60 capture with a Sony CMOS sensor and HDR support for smooth motion and image quality in challenging lighting conditions.
Capture a presenter’s gestures and movement in Ultra HD at 60 frames per second. Compared with 30 fps capture, the higher frame rate records more moments of movement for smoother video during lectures and live presentations.
Daylight and room lighting can change throughout a presentation. A Sony CMOS sensor with HDR support helps maintain image quality in low and challenging light, while the glass lens supports natural colour rendering.
Match the output to your workflow: HDMI and the main IP stream support up to 4K60. USB supports up to 4K30, while 3G-SDI supports up to 1080p60.
AV-CM93-IP-W · IMAGE QUALITY
The AV-CM93-IP-W combines 4K60 capture with a Sony CMOS sensor and HDR support for smooth motion and image quality in challenging lighting conditions.
Capture a presenter’s gestures and movement in Ultra HD at 60 frames per second. Compared with 30 fps capture, the higher frame rate records more moments of movement for smoother video during lectures and live presentations.
Daylight and room lighting can change throughout a presentation. A Sony CMOS sensor with HDR support helps maintain image quality in low and challenging light, while the glass lens supports natural colour rendering.
Match the output to your workflow: HDMI and the main IP stream support up to 4K60. USB supports up to 4K30, while 3G-SDI supports up to 1080p60.
Explore the Avonic AV-CM93-IP-W technical specifications, covering camera performance, PTZ control, connectivity, streaming, audio, power and operating conditions.
Camera & Image
| Specification | Value |
|---|---|
| Maximum resolution | 4K UHD at 60 fps |
| Sensor | Sony 1/1.8″ CMOS, 8.42 MP, 16:9 |
| Scanning mode | Progressive / Interlace |
| Shutter | Auto / Manual; 1/60–1/10000 second |
| Zoom | 30× at 4K; 50× at Full HD — Avonic Optimal Zoom |
| Aperture | F1.6–F11 |
| Focal length | 7–172 mm, ±5% |
| Minimum illumination | 0.05 lux at F1.6 |
| White balance modes | Auto, Manual, One Push |
| Backlight compensation | Supported |
| Digital noise reduction | Supported |
| Signal-to-noise ratio | >50 dB |
| Horizontal field of view | 59.2°–2.5° |
| Vertical field of view | 34.6°–1.4° |
| Horizontal / vertical image flip | Supported |
Pan, Tilt & Control
| Specification | Value |
|---|---|
| Pan range | ±170° |
| Tilt range | 120° total: 30° down, 90° up |
| Pan speed | 0.15–120°/second |
| Tilt speed | 0.15–70°/second |
| Presets | 255 |
| Preset accuracy | 0.1° |
| Control methods | UVC, IR remote, IP, serial |
Video Outputs & Connectivity
| Specification | Value |
|---|---|
| HDMI output | HDMI 2.0; up to 4K60 |
| SDI output | 3G-SDI; up to 1080p60 |
| USB output | USB 2.0 Type-B; up to 2160p30 |
| Network interface | RJ45, 1 Gbps |
| RS-232 interface | Mini-DIN-8 |
| RS-485 interface | 2-pin Phoenix |
| Tally light | Supported |
IP Streaming
| Specification | Value |
|---|---|
| Video compression | H.265, H.264, MJPEG |
| Main stream resolutions | 3840 × 2160; 1920 × 1080; 1280 × 720 |
| Main stream maximum frame rate | 60 fps |
| Main stream bitrate | 64–81,920 Kbps |
| Substream resolutions | 1920 × 1080; 720 × 480; 640 × 480; 640 × 360; 320 × 240 |
| Substream maximum frame rate | 30 fps |
| Substream bitrate | 64–5,120 Kbps |
| Bitrate modes | CBR, VBR |
| Supported protocols | RTSP, RTMP, ONVIF, SRT, multicast, unicast |
Audio
| Specification | Value |
|---|---|
| Audio input | Balanced line-in, 5-way Phoenix connector |
| Audio encoding | AAC |
| Audio bitrate | 32, 64, 96 or 128 Kbps |
| Audio sample rate | 48 kHz |
Electrical
| Specification | Value |
|---|---|
| Input voltage | 12 V DC |
| Power over Ethernet | IEEE 802.3at PoE+ |
| Power consumption | 18 W |
| Power supply rating | 12 V, 2 A |
| Power connector | EIAJ-4 / Philmore 255 plug |
Mechanical
| Specification | Value |
|---|---|
| Colour | White |
| Dimensions — W × H × D | 20.7 × 16.7 × 22.5 cm |
| Product weight | 2.5 kg |
| Mounting thread | ¼″-20 UNC |
| Packaging dimensions | 30 × 30 × 24 cm |
| Packaging weight | 3.4 kg |
Environmental
| Specification | Value |
|---|---|
| Operating temperature | −5°C to +35°C |
| Storage temperature | −20°C to +60°C |
| Operating humidity | 20–95%, non-condensing |
Included Components
| Component | Details |
|---|---|
| Power adapter | Included |
| Remote control | Included |
| RS-232 cable | Included |
| RS-485 connector | 2-way Phoenix |
| Balanced audio line-in connector | 5-way Phoenix |
Quick answers about the AV-CM93-IP-W, and how it compares.
The main difference is the housing colour: AV-CM93-IP-W is white, while AV-CM93-IP-B is black. Both are CM93-IP variants with the same published core camera specifications.
