CCS 1000 D Digital Discussion System
Compact yet versatile: plug-and-play discussion for meeting and council rooms
CCS 1000 D Digital Discussion System
Compact yet versatile: plug-and-play discussion for meeting and council rooms
CCS 1000 D system components

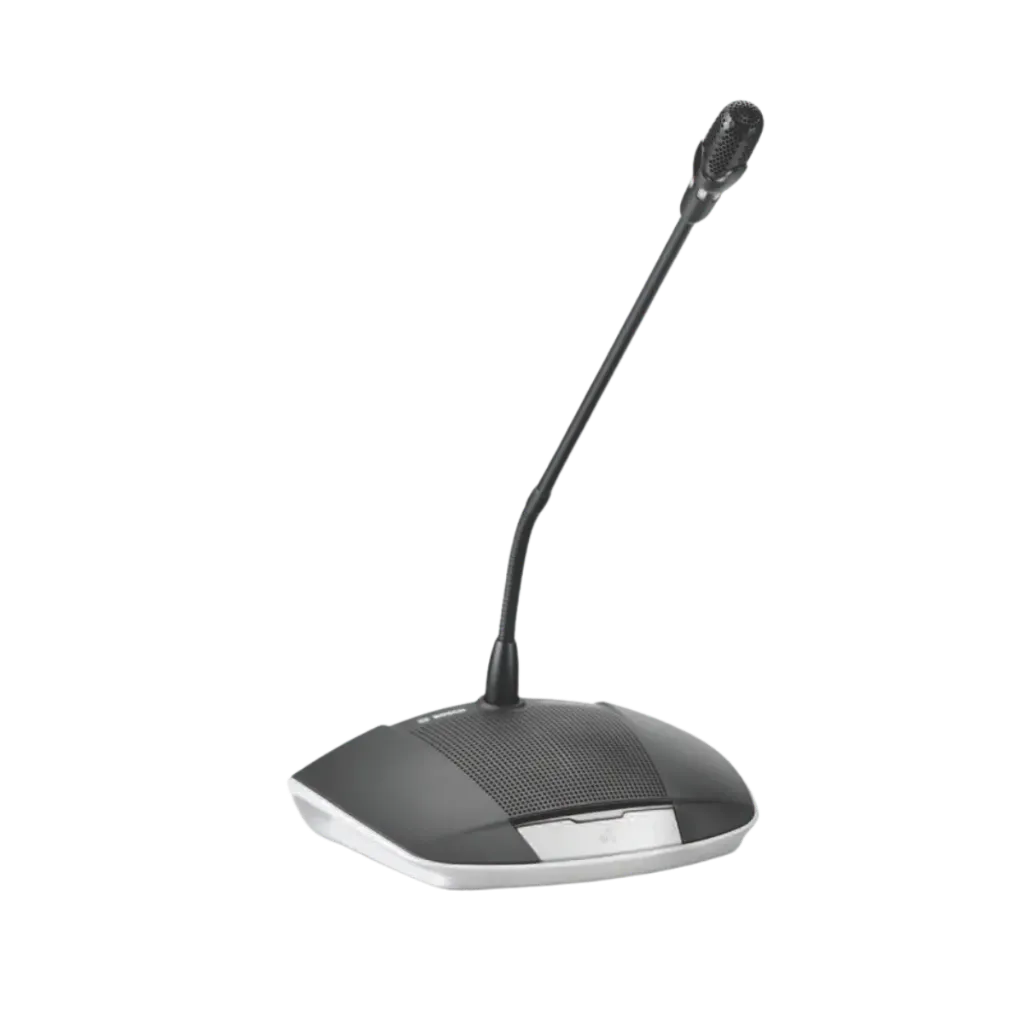

CCSD-DL Discussion Device, Long Mic
The original CCS 1000 D device: 480 mm flexible-stem microphone, built-in loudspeaker and headphone socket; participant or chairperson, plug-and-play daisy chain.
- 480 mm Flexible Stem
- Participant or Chairperson
- Plug & Play Daisy Chain
CCS 1000 D system components
CCSD-DL Discussion Device, Long Mic
The original CCS 1000 D device: 480 mm flexible-stem microphone, built-in loudspeaker and headphone socket; participant or chairperson, plug-and-play daisy chain.
- 480 mm Flexible Stem
- Participant or Chairperson
- Plug & Play Daisy Chain
Bosch CCSD-DL Product Highlights
Explore the key capabilities of the Bosch CCSD-DL CCS 1000 D Discussion Device with long microphone.Possible-to-Speak Light
A white light above the microphone button shows when the microphone can be switched on.
Plug and Play
Connect or remove devices without a restart, for fast installation and changes.
Participant or Chairperson
Becomes a chairperson device with priority button by changing the buttons and a slide switch.
480 mm Flexible Microphone
Fixed cardioid microphone on a flexible 480 mm stem, easy to adjust.
Loudspeaker and Headphones
Built-in loudspeaker that stays on while you speak, plus a headphone socket with volume wheel.
Mobile Phone Immunity
Immune to mobile phone interference for clear, uninterrupted discussion.
CCS 1000 D Features
Bosch-designed microphone for crystal-clear speech
Sturdy casing with built-in loudspeaker
LED shows when to speak (white), queue (green) and mic on (red)
Delegate unit converts to a chairperson unit in seconds
Headphone socket with volume control
CCS 1000 D Features
Bosch-designed microphone for crystal-clear speech
Sturdy casing with built-in loudspeaker
LED shows when to speak (white), queue (green) and mic on (red)
Delegate unit converts to a chairperson unit in seconds
Headphone socket with volume control
Key specs
- 480 mm flexible-stem cardioid mic
- Participant or chairperson device
- White possible-to-speak light
- Built-in loudspeaker, 72 dB SPL
- 3.5 mm headphone socket with volume
- Plug and play daisy-chain, 2 m cable
- 64 x 203 x 146 mm, about 1 kg
- Black top, pearl light grey base
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Know before you buy
Quick answers about the CCSD-DL, and how it compares.
Long or short microphone?
Long (480 mm) for large tables and seats further from the device. Short (310 mm) for small tables where people sit close. Both have the same sound quality and functions.
Can any device be the chairperson device?
Tabletop devices: yes. Clip on the chairperson buttons and move the switch under the device. CCSD-DL2 and DS2 need the CCSD-DCBCM button set (ask us). Flush seats: use the CCSD-FCML, which has its own priority button.
What do the lights mean?
White: you may switch your microphone on. Green: you are in the waiting list; it flashes when you are next. Red ring on the microphone: your microphone is on.
Can participants use headphones?
Yes. Tabletop devices have a headphone socket with a volume wheel.
Does the camera follow the speaker?
Yes. With the optional Unear V51X network camera, the control unit steers the camera over the network to the seat whose microphone is on. When the microphone goes off, the camera returns to the room view. No operator is needed.
Can it work with Teams or Zoom?
Yes. The control unit sends the microphone sound to your video conferencing system and plays the far end through the device loudspeakers. The Unear V51X is a network camera; its HDMI or USB output goes to the meeting PC or codec, so the far end sees who is speaking.
How are the devices connected?
Each device has a 2 m cable that plugs into the next device, and so on back to the control unit. Up to 40 devices per cable run. Devices can be added or removed without restarting.
What do I need for a system?
A control unit (CCSD-CURD). One discussion device per seat: tabletop CCSD-DL2 or DS2, or flush-mounted CCSD-FDL and CCSD-FCML. For more than 80 seats, add a CCSD-EXU extension unit. Optional: the Unear V51X camera that follows the speaker.
Who supplies Bosch CCS 1000 D in Pakistan, and what warranty do I get?
ESCO is the authorized Bosch distributor in Pakistan. Every unit is genuine and comes with a 3-year carry-in warranty. We design, supply and install complete systems, with after-sales service nationwide. Prices are quoted per project.
