FAQs About Bosch DCNM-IDESKVID
Get quick answers about the Bosch DCNM-IDESKVID Interpreter Desk with Video Output, including language support, HDMI video, connectivity, operating features and availability in Pakistan.

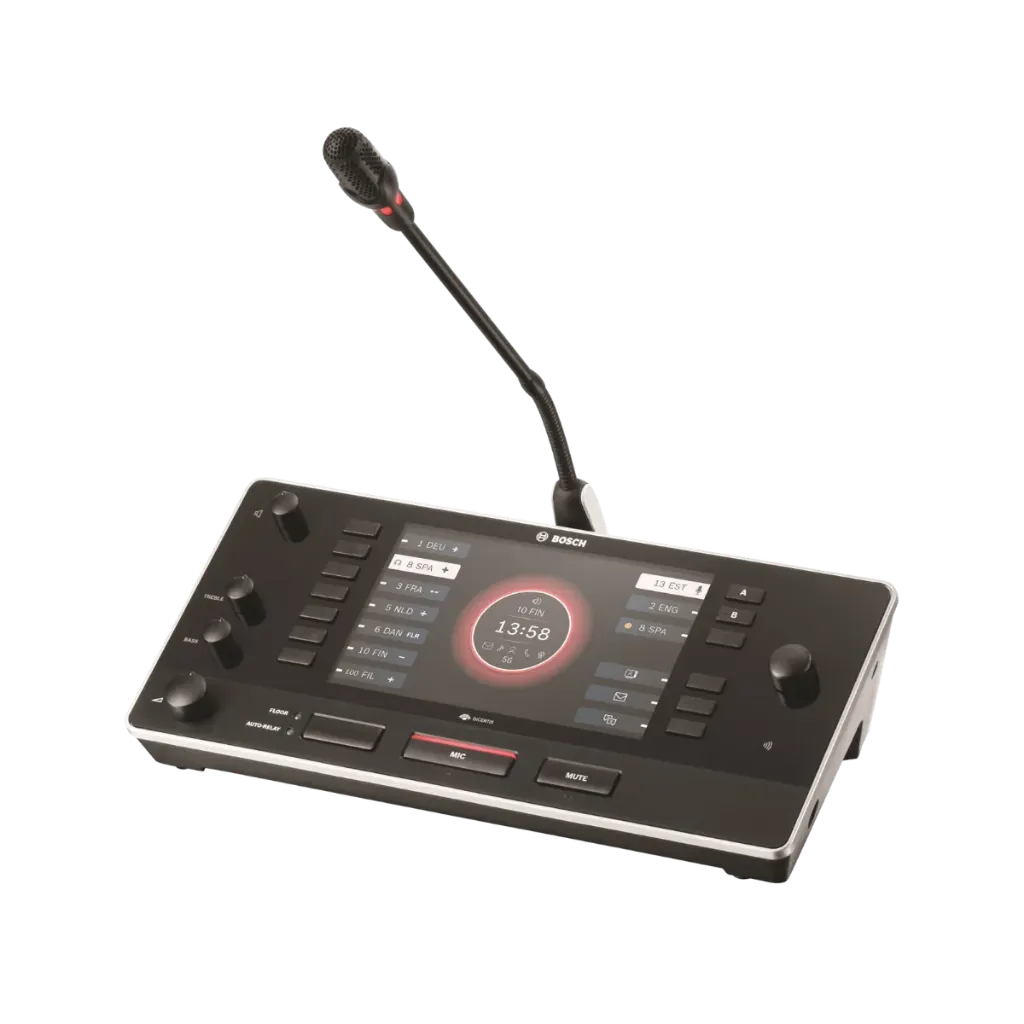

The Bosch DCNM-IDESKVID is a professional single-user interpreter desk for the DICENTIS Conference System. It is designed for interpretation workflows and supports up to 100 languages with an ergonomic control layout and a 7-inch display.
Yes. The desk includes an HDMI output for an external video screen. The interpreter can view either the participant speaking or the participant’s presentation, depending on the selected video source.
It uses two RJ45-compatible connections for system communication and power. It supports loop-through cabling with DICENTIS system cables or star cabling using Cat.5e or better cables with PoE+ switches.
The desk provides controls for incoming and outgoing language selection, microphone activation, mute, headphone volume and tone, floor/auto-relay selection, clock and speech time, and video source selection. It also includes tactile and audible feedback features for accessibility.
Electronic Security Company (ESCO) is the authorized distributor for Bosch, Dynacord and Electro-Voice systems across Pakistan. ESCO supplies, designs and installs professional conference and interpretation solutions with genuine warranty support and nationwide after-sales service.
Bosch Security – DICENTIS Interpreter Desk
Bosch DCNM-IDESKVID Product Highlights
Explore the key capabilities of the Bosch DCNM-IDESKVID Interpreter Desk with Video Output, including multilingual interpretation, HDMI video, intuitive controls, flexible connectivity and professional interpreter support.Supports Up to 100 Languages
Designed for professional interpretation environments with support for up to 100 languages.
7-Inch High-Contrast Display
Features a 7-inch TFT display for clear access to language, timing and interpreter information.
HDMI Video Output
Provides HDMI output for an external screen, allowing the interpreter to view the active speaker or participant presentation.
Flexible Network Connectivity
Dual RJ45-compatible connections support DICENTIS loop-through cabling or star-network installation using Cat.5e or better with PoE+.
Professional Interpreter Controls
Includes dedicated controls for language selection, microphone, mute, headphone volume, tone, floor/auto-relay and video source selection.
Accessibility & Hearing Protection
Supports hearing protection, tactile feedback and audible feedback features to improve comfort and usability for interpreters.

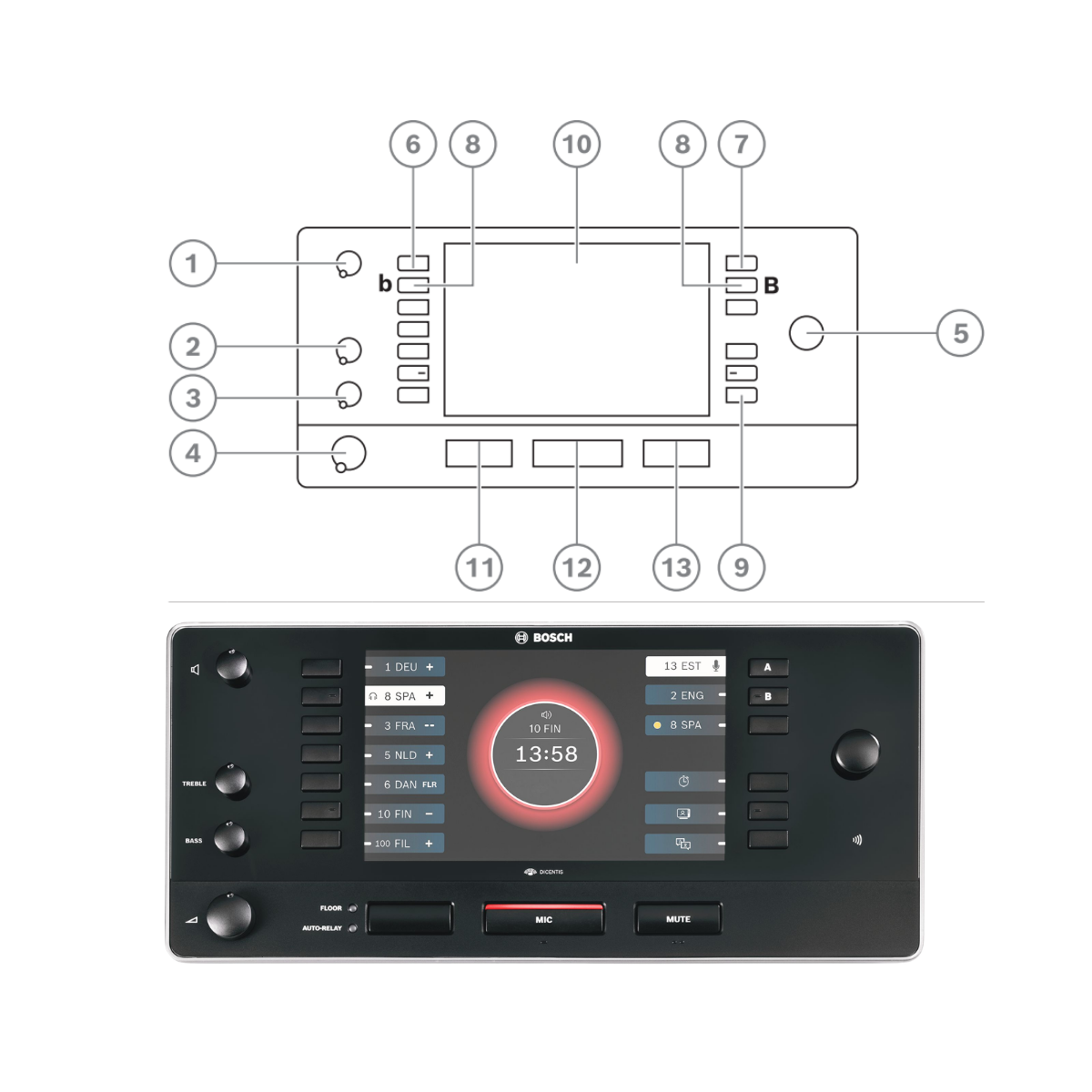

DCNM-IDESKVID Controls & Functions
Understand the main controls of the Bosch DCNM-IDESKVID Interpreter Desk, including audio adjustment, language selection, microphone operation, relay control and programmable functions.

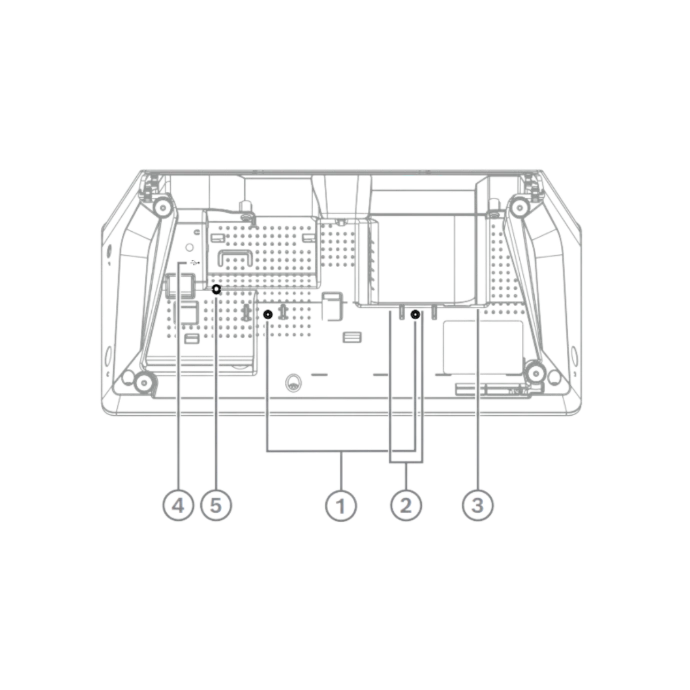

DCNM-IDESKVID Connectivity & Installation
View the key connection and mounting points of the Bosch DCNM-IDESKVID, including dual RJ45 system connections, HDMI video output, USB interface and fixed-installation mounting point.
1. Fixed Installation
Use the screw insert for fixed tabletop installation. The desk may also be used free-standing. For fixed mounting, use M3 screws with a maximum insertion depth of 5 mm (0.2 in) to avoid damaging the device.
2. RJ45 System Connections
Two RJ45-compatible input/output connections provide system communication and power. The desk supports loop-through cabling with DICENTIS system cables or star cabling using standard CAT-5e cables and PoE switches.
3. HDMI Video Output
The DCNM-IDESKVID includes a dedicated HDMI video output for connecting an external display.
4. USB Interface
The USB connector is used for the DCNM-IDESKINT On-air & Telephone Interface.
5. Reset Button
Press and hold the reset button for more than 10 seconds to restore the interpreter desk to its factory default settings.
Bosch DCNM-IDESKVID Interpreter Desk Technical Specifications
| Category | Specification | Official Value |
|---|---|---|
| General | Product type | Interpreter desk with video output |
| System | DICENTIS | |
| Display size | 7 in | |
| Display type | TFT | |
| Supported languages | Up to 100 languages | |
| Desks per booth | Up to 10 | |
| Video Output | HDMI resolution | 1080p60, 1080p50, 720p60, 720p50 |
| HDMI version | 1.4 | |
| H.264 decoding latency | 50 ms | |
| Connections | Headphone / headset sockets | 3 × 3.5 mm TRRS |
| Network / system connections | 2 × RJ45-compatible | |
| Network cabling | DICENTIS system cable or Cat.5e or better | |
| Power over Ethernet | PoE+ IEEE 802.3at Class 4 | |
| USB | 1 × USB connector, future use | |
| Microphone connection | For DCNM-MICS / DCNM-MICL | |
| External video output | HDMI | |
| Electrical | Input voltage | 48 VDC |
| Power consumption | 18 W | |
| Frequency response | 100 Hz – 20,000 Hz | |
| Audio Inputs | Nominal acoustic input level | 80 dB SPL according to EN ISO 22259 |
| Maximum acoustic input level | 110 dB SPL according to EN ISO 22259 | |
| Nominal input level | -38 dBV | |
| Maximum input level | -8 dBV | |
| Audio Outputs | Nominal acoustic output level | 72 dB SPL |
| Nominal output level | -3 dBV | |
| Maximum output level | 0 dBV | |
| Headphone load impedance | >32 ohm and <1 kohm per earpiece | |
| Maximum output power | 65 mW | |
| Mechanical | Mounting type | Tabletop |
| Dimensions (H × W × D) | 10.40 × 32.60 × 16.80 cm | |
| Dimensions (H × W × D) | 4.09 × 12.83 × 6.61 in | |
| Slope | 30° | |
| Weight | 1540 g / 3.40 lb | |
| Colour | RAL 9017 Traffic Black | |
| Environmental | Operating temperature | 5 °C – 35 °C / 41 °F – 95 °F |
| Storage temperature | -30 °C – 70 °C / -22 °F – 158 °F | |
| Operating relative humidity | 5% – 90%, non-condensing | |
| Identification | CTN / Model | DCNM-IDESKVID |
| Product Number | F.01U.326.553 |
