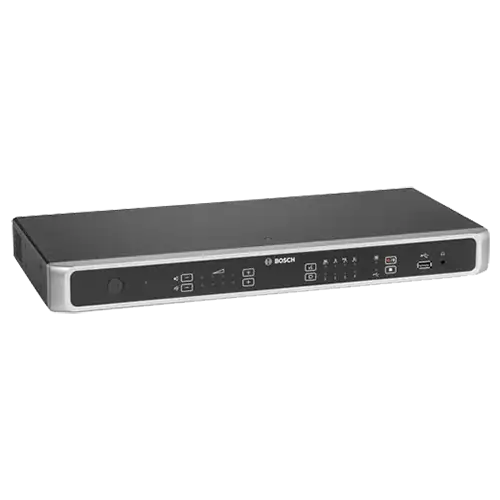

CCSD-CURD

Bosch CCSD-CURD Control unit for CCS 1000 D Digital Discussion System with recorder and DAFS, Plug-and-play functionality, for quick and easy connection of up to 80 Discussion Devices, Intuitive web browser interface, control for advanced, configuration and control, Built‐in MP3 recorder with internal memory and USB recording, Built‐in Digital Acoustic Feedback, Suppression (DAFS) for ensuring superior speech intelligibility.

https://www.esco.pk/web/image/product.template/4675/image_1920?unique=8cb7eb8

    Rs. 0.00 0.0 PKR Rs. 0.00

    Not Available For Sale

    This combination does not exist.

    Add to Cart
    Add to wishlist Compare

    Please get in touch for pricing & availability.

    Contact Us
    Bosch

    Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.

    ​

    CCSD-CURD Control unit

    Bosch CCSD-CURD Control unit for CCS 1000 D  with recorder and DAFS.

    Plug-and-Play functionality

    The plug-and-play feature of the Control Unit allows Discussion Devices & system cameras to be conveniently connected to and removed from the system

    Web browser Control

    Basic & advanced system settings can be easily viewed and configured using a web browser interface in combination with a PC, tablet, or laptop.

    Digital Acoustic Feedback Suppression (DAFS)

    The built-in Digital Acoustic Feedback Suppression (DAFS) feature suppresses acoustic feedback. This improves speech intelligibility by allowing the speaker volume to be set as loud as required without any risk of acoustic feedback

    Discussion Devices

    Up to 80 Discussion Devices can be connected to a single Control Unit

    Microphone Management

    A maximum of four microphones can be selected in the Control Unit.

    This can be further extended to 25 microphones in the web browser interface.

    Discussion Modes

    Open mode, Push to talk (PTT) mode

    Override mode, Voice activation mode

    Features

    Built‑in MP3 recorder with internal memory and USB recording, Built‑in monitor loudspeaker, Sound reinforcement system, Telephone coupler,  External wired or wireless microphone to allow a guest speaker or an audience to participate.




    Technical Specifications

    Supply voltage Adaptor

    100 to 240 VAC, 50/60 Hz

    Current Consumption voltage Adaptor

    1.9 A (100 VAC) to 1 A 240 (VAC)

    DC voltage Control Unit

    24 V, 6.0 A

    Maximum number of Discussion Devices for Control Unit

    (without Extension Unit)

    40 Discussion Devices per trunk 80 Discussion Device in total

    24 V, Max 5.2 A (short-circuited protected)

    Discussion Device loudspeakers volume control

    15 steps of 1.5 dB (starting from -10.5 dB)

    Limit threshold level to unit

    12 dB above nominal level

    Gain reduction due to number of open microphones (NOM)

    1/SQRT (NOM)

    Sample rate

    44.1 kHz

    Frequency response

    30 Hz to 20 kHz

    Ethernet speed

    1 Gb/s

    Nominal input (85 dB SPL)

    < 0.5%

    Max. input (110 dB SPL)

    < 0.5%

    XLR nominal microphone input

    -56 dBV

    XLR maximum microphone input

    -26 dBV

    RCA nominal input

    -24 dBV (+/- 6 dB)

    RCA maximum input

    +6 dBV

    S/N

    > 93 dBA

    Frequency response

    30 Hz to 20 kHz

    THD

    <0.1%

    RCA nominal output

    -24 dBV (+6/- 24 dB)

    RCA maximum output

    +6 dBV

    S/N

    > 93 dBA

    Frequency response

    30 Hz to 20 kHz

    THD

    <0.1%

    Recording/ Playback (bit rate)

    64, 96, 128, 256 Kbit/sec

    Recording/ Playback (sample frequency)

    44.1 kHz

    Nominal output

    72 dB SPL

    Frequency response

    200 Hz to 16 kHz (acoustical)

    Gain range

    Mute -10.5 to +12 dB

    SanDisk USB memory stick

    Formatted with FAT32 file system.

    Maximum size: 128 GB.

    Dimensions including feet (H x W x D)

    45 x 440 x 200 mm

    (1.8 x 17.3 x 7.9 in)

    19” wide, 1 RU high

    Height of feet

    5.5 mm (0.2 in)

    Mounting

    Tabletop or 19 “ rack

    Material (top and base)

    Painted metal

    Color (top and base)

    Traffic black (RAL 9017) matt- gloss

    Rim front panel

    Pearl light grey (RAL 9022) matt- gloss

    Weight (CCSD‑CURD)

    Approx. 3.4 kg (7.5 lb)

    Operating temperature

    5 ºC to +45 ºC

    (+41 ºF to +113 ºF)

    Storage and transport temperature

    -40 ºC to +70 ºC

    (-40 ºF to +158 ºF)

    Relative humidity

    5% to 98% non-condensing
