CCSD-DL

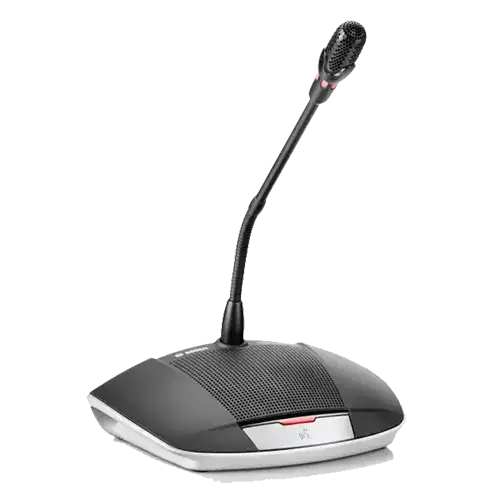

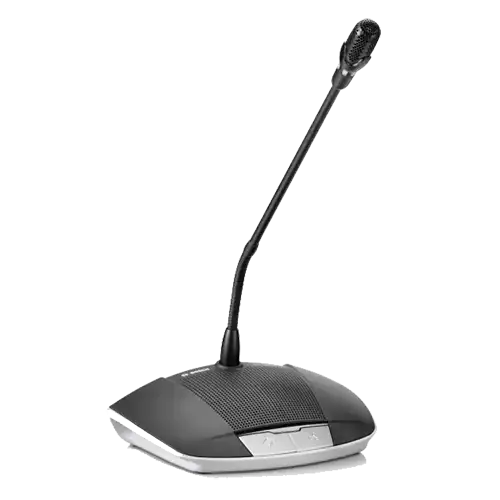

Bosch CCSD-DL Discussion device with long microphone, Discussion Device for the CCS 1000 D Digital Discussion System, supplied with a long‑stem fixed microphone, configurable as a participant device or a chairperson device, Cardioid Microphone polar pattern, Built-in loudspeaker with volume control, Headphones socket, Request‑to‑speak indication.

https://www.esco.pk/web/image/product.template/4676/image_1920?unique=97c332b

    Rs. 0.00 0.0 PKR Rs. 0.00

    Not Available For Sale

    This combination does not exist.

    Add to Cart
    Add to wishlist Compare

    Please get in touch for pricing & availability.

    Invalid email
    We'll notify you once the product is back in stock.
    Added to your wishlist
    Contact Us
    Bosch
    ​

    Discussion Device

    Bosch CCSD-DL Discussion device with long microphone,

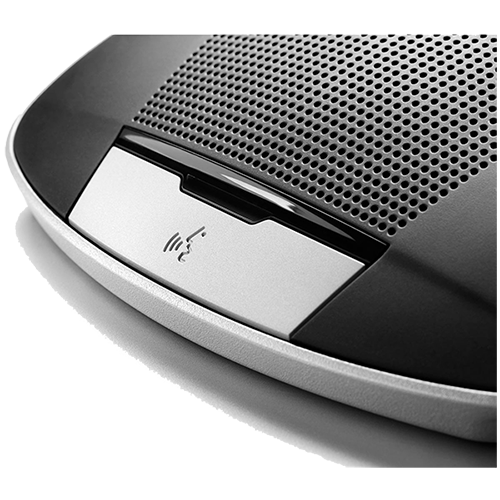

    Possible-to-Speak Indication

    A white possible-to-speak indicator above the microphone button indicates when to activate a microphone.

    Built‑in Volume control for headphones

    For maximum comfort, the volume of the headphones can be adjusted on the side of the discussion device using a rotary thumbwheel.

    Request‑to‑Speak Indication

    A green request‑to‑speak indicator above the microphone button and in the head of the microphone indicate when a request‑to‑speak has been added to the waiting list. The indicators flash green when the request‑to‑speak is first in the waiting list.

    Microphone with Flexible Stem

    The fixed microphone with a flexible stem can be easily adjusted to suit the user.

    Built-in Loudspeaker with Volume Control

    The volume of the Loudspeaker of all Discussion Devices is centrally controlled from the Control Unit to ensure optimized audibility.

    Headphones socket

    The built‑in stereo headphone socket enables the speaker to be heard, even when there is excessive background noise.

    Controls and Indicators

    Microphone button, Color-coded LED indicator above microphone button for showing the following states: microphone on, request‑to‑speak, and possible‑to‑speak, Light‑ring indicator in head of microphone, Rotary thumbwheel


    		 Electrical



    Power consumption

    1.3 W



    Frequency response

    30 Hz to 20 kHz (System electrical)



    THD

    <0.5 %



    S/N

    >93 dBA



    Sampling rate

    44.1 kHz



    Headphones load impedance

    > 32 ohms < 1k ohm



    Loudspeaker max. peak output power

    4 W



    Acoustical



    Loudspeaker nominal output

    72 dB SPL



    Participants loudspeaker frequency response

    200 Hz to 16 kHz (acoustical)



    Microphone polar pattern

    Cardioid



    Participants microphone frequency response

    125 Hz to 15 kHz



    Microphone nominal input

    85 dB SPL

    Mechanical

    Dimensions device without microphone (H x W x D)

    64 x 203 x 146 mm

    (2.5 x 8.0 x 5.7 in)

    Height with microphone in horizontal position

    130 mm (5.1 in)

    Length of microphone from mounting surface

    CCSD‑DL: 480 mm (18.9 in)

    Weight

    Approx. 1 kg (2.2 lb)

    Mounting

    Tabletop (portable or fixed)

    Material (top)

    Plastic ABS+PC

    Material (base)

    Metal ZnAl4

    Color (top)

    Traffic black (RAL 9017) matt- gloss

    Color (base)

    Pearl light grey (RAL 9022) matt- gloss

    Environmental

    Operating temperature

    0 ºC to +35 ºC

    (+32 ºF to +95 ºF)

    Storage and transport temperature

    -40 ºC to +70 ºC

    (-40 ºF to +158 ºF)

    Relative humidity

    5% to 98% non-condensing

    Air pressure

    600 to 1100 hPa
