TS-0302A

Price:

Rs. 0.00
  2. Shop
  3. Conference Systems
  4. ITC
  5. Digital Conference
  6. TS-0302A
  7. Digital Conference
TS-0302
TS-0302
iDS-2CD7A46G2/P-IZHS 2.8-12mm
iDS-2CD7A46G2/P-IZHS 2.8-12mm
TS-0302A

TS-0302A

9 sold in last 24 hours

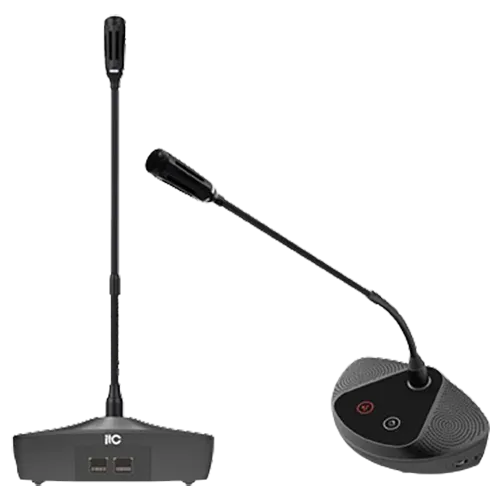

ITC TS-0302A Delegate Unit, Microphone type: Cardioid Electret Microphone, Frequency response: 80Hz-16kHz, Input impedance: 680Ω, Sensitivity: -41±1.5dBV/Pa, Maximum SPL: 120dB, SNR: >80dB(A), Dynamic range: >80dB, Headphone load: 16-32Ω, Headphone jack: 3.5mm, Speaker: Built-in 1 4Ω 2W speaker, Network port: 2 cascade network ports, Touch button sign in, 0.56kg.

9 people are viewing this right now
Rs. 0.00 Rs. 0.00

Request a Quote

Delegate Unit

ITC TS-0602A Discussion Conference Delegate Unit

Microphone type

Cardioid Electret Microphone

Headphone jack

3.5mm stereo output socket, it can be used for recording and connecting headphones.

Built‑in Speaker & Volume control

Built-in high-fidelity speaker with volume adjustment

Power Amplifier Chip

Built-in amplifier chip; with AGC and compression limiter functions

EQ Adjustment Function

With 5-band EQ adjustment function, the sound effect can be adjusted according to the sound characteristics of different speakers to achieve the perfect effect.

Specifications

Microphone type

Cardioid Electret Microphone

Frequency response

80Hz - 16kHz

Input impedance

680Ω

Sensitivity

-41±1.5 dBV/Pa

Maximum SPL

120dB

SNR

>80dB (A)

Dynamic range

>80dB

THD

<0.1%

Power consumption

4W

Headphone load

16-32Ω

Headphone jack

3.5mm

Speaker

Built-in 1 4Ω 2W speaker

Network port

2 cascade network ports

Power supply

Powered by conference controller

Color

Graphite gray

Sign in function

Touch button sign in

Installation method

Desktop installation

Weight

0.56kg

Microphone pole

409mm black

Dimension (L×W×H)

178.6 × 114 × 58.2mm (without microphone pole)
