TS-0310DA

7 sold in last 24 hours

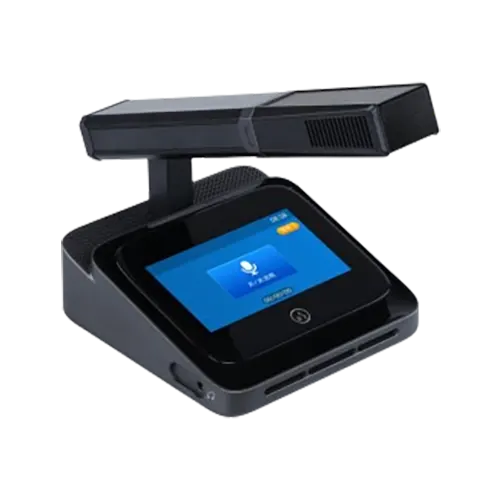

ITC TS-0310DA Touch Screen Conference Delegate Unit with 4.3 inch color Screen, 3.5mm headphones, Cardioid Microphone, Sensitivity -40±1dB (0dB=1V/Pa,at 1KHz) , SPL; 120dB(THD<3%), Max power; 3W, key sign In, Built-in speaker, 2W@4Ω×1

7 people are viewing this right now
Rs. 0.00 Rs. 0.00

Feature:

* The capacitive touch buttons can effectively eliminate the button tapping noise and ensure a good venue environment.

* Uncompressed audio transmission technology, 48K sampling rate, 80Hz-16KHz bandwidth perfect sound quality.

* Adopt 100M network transmission, adopt network cable hand-in-hand connection, convenient for wiring.

* Adopt standard TCP/IP communication protocol, support ping packet function.

* Adopt a 4.3-inch full color touch screen.

* Support 63+1 simultaneous interpretation channels, support dual-channel listening function, listen to different interpreter channels at the same time.

* With two 3.5mm headphones interfaces, support listen to the sound of any channel for 63+1 channel.

* Support PC software microphone control and voice control function.

* With a built-in independent web server, support four language switching, support adjustment of microphone ID number, microphone sensitivity, microphone EQ and other parameters.

* Support the function of speech timekeeping and speech countdown. The delegate unit can apply for speaking.

* Support feedback suppression function and voice control function, and the voice control sensitivity is adjustable

* Support 5-band EQ adjustment function, adjust sound effects according to the voice characteristics of different speakers until the perfect effect is achieved.

* Support the sign-in function, stop unit sign-in and control unit sign-in through the PC software.

* Support the voting function, there are multiple voting modes, and the content of the options can be customized and sent to the unit for display.

* Support web page firmware upgrade function.

* Support the IP address sniffing function; the ID number, IP address, MAC address and other parameters of the unknown unit can be found through the PC tool.

Specifications

Model

TS-0310D/ TS-0310DA

Microphone type

Electret condenser microphone

Microphone directivity

Cardioid

Frequency response

80Hz~16KHz

Microphone input impedance

1KΩ

Built-in speaker

2W@4Ω×1

Sensitivity

-40±1dB  (0dB=1V/Pa,at 1KHz)

Maximum SPL

120dB(THD3%)

SNR

>80dB(A)

Crosstalk

>70dB

Dynamic range

>80dB

THD

<0.3%

Maximum power consumption

3W

Power supply

Conference server power supply

Color

Fine sand graphite grey

Sign-in method

Key sign in

Dimension

136*140*48.5(mm)(without microphone rod)

Installation method

Desktop

Weight

1.3Kg

Microphone pole

240mm integrated square short microphone rod (light black)
