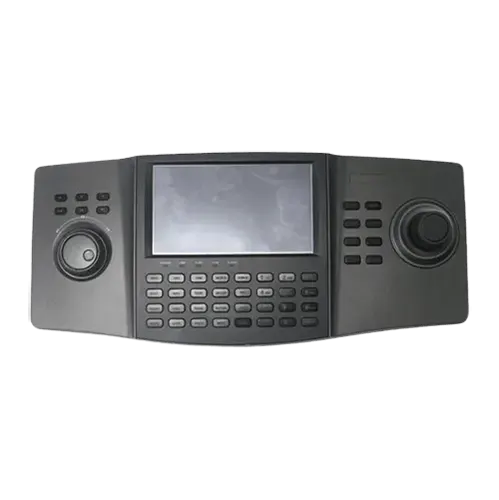

Hikvision DS-1100KI Touch Screen Network Keyboard, 7-inch LCD touch screen and a 4-axis joystick, Decoding parameter: 4 × 1080p, 1 USB Interfaces, RS-422, RS-485, 1 RJ-45 10/100/1000Mbps self-adaptive Ethernet interfaces, 12 VDC.

DS-1100KI(C) is a new generation network keyboard independently developed by Hikvision. It features in a 7-inch LCD touch screen and a 4-axis joystick. It supports network access to DVRs, DVSs, NVRs, network cameras, network domes, multi-functional video centers (MVCs), decoders, iSecure, and HikCentral and supports analog matrix and analog dome access, with powerful functions and quick and simple operations. It can be widely used in finance, telecommunication, transportation, electric power, education, water conservancy, and other fields.

Device Parameter


7-inch LCD

Control Method

Network method, serial control

Power Supply

12 VDC


15 W


435 mm × 193 mm × 110 mm (17.13 inch × 7.60 inch × 4.33 inch) (L × W × H)


2 kg (4.41 lb.)

Compatible System

Linux system

Decoding Parameter


4 × 1080p

Environmental Parameter

Working Temperature

-10 °C to 55 °C (14°F to 131°F)

Working Humidity

10% to 90%

External Interface


RJ45 100 M/1000 M self-adaptive Ethernet interface × 1


Not supported

Serial Port

RS-485, RS-422

Two-Way Audio Input

3.5 mm stereo, supporting the audio communication

Two-Way Audio Output

3.5 mm stereo, supporting the audio communication


4-axis single button joystick

USB Interface

USB 2.0 × 1
