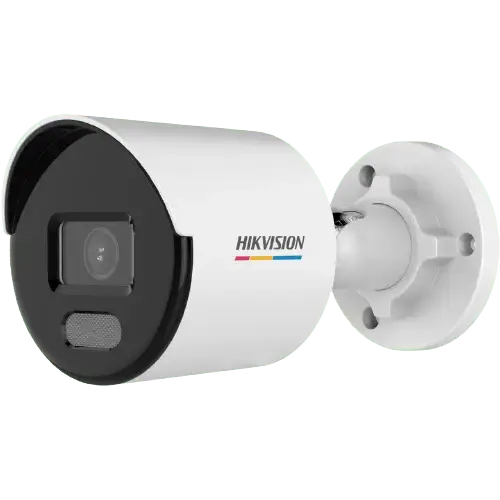

Camera
|
|
Sensor
|
1/2.8"
Progressive Scan CMOS
|
|
Max.
Resolution
|
1920
× 1080
|
|
Min.
Illumination
|
Color:
0.001 Lux @ (F1.0, AGC ON), 0 Lux with light
|
|
Shutter
Time
|
1/3
s to 1/100,000 s
|
|
Day
& Night
|
24/7
Color Imaging
|
|
Angle
Adjustment
|
Pan:
0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
|
|
Lens
|
|
Lens
Type
|
Fixed
focal lens, 4 mm
|
|
Focal
Length & FOV
|
4 mm,
horizontal FOV: 83°, vertical FOV: 44°, diagonal FOV: 99°
|
|
Lens
Mount
|
M12
|
|
Iris
Type
|
Fixed
|
|
Aperture
|
F1.0
|
|
Depth
of Field
|
2.8
mm: 1.5 m to ∞
4 mm:
2.1 m to ∞
|
|
DORI
|
|
DORI
|
4 mm,
D: 56 m, O: 22 m, R: 11 m, I: 5 m
|
|
Illuminator
|
|
Supplement
Light Type
|
White
Light
|
|
Supplement
Light Range
|
Up to
30 m
|
|
Smart
Supplement Light
|
Yes
|
|
Video
|
|
Main
Stream
|
50 Hz:
25 fps (1920 × 1080, 1280 × 720)
60 Hz:
30 fps (1920 × 1080, 1280 × 720)
|
|
Sub-Stream
|
50 Hz:
25 fps (640 × 480, 640 × 360)
60 Hz:
30 fps (640 × 480, 640 × 360)
|
|
Video
Compression
|
Main
stream: H.265+ / H.265 / H.264+ / H.264,
Sub-stream:
H.265 / H.264 / MJPEG
|
|
Video
Bit Rate
|
32 Kbps
to 8 Mbps
|
|
H.264
Type
|
Baseline
Profile, Main Profile, High Profile
|
|
H.265
Type
|
Main
Profile
|
|
Bit
Rate Control
|
CBR,
VBR
|
|
Region
of Interest (ROI)
|
1 fixed
region(s) for main stream
|
|
Network
|
|
Protocols
|
TCP/IP,
ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
|
|
Simultaneous
Live View
|
Up to
6 channels
|
|
User/Host
|
Up to
32 users3 user levels: administrator, operator, and user
|
|
Security
|
Password
protection, complicated password, watermark, basic and digest authentication for
HTTP, WSSE and digest authentication for Open Network Video
Interface,
security audit log, host authentication (MAC address)
|
|
Client
|
iVMS-4200,
Hik-Connect
|
|
|
|
Wide
Dynamic Range (WDR)
|
DWDR
|
|
SNR
|
≥ 52 dB
|
|
Day/Night
Switch
|
Day,
Night, Auto, Schedule
|
|
Enhancement
|
BLC,
HLC, 3D DNR
|
|
Settings
|
Rotate
mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable
by client software or web browser
|
|
Privacy
Mask
|
4 programmable
polygon privacy masks
|
|
Interface
|
|
Ethernet
Interface
|
1 RJ45
10 M/100 M self-adaptive Ethernet port
|
|
Event
|
|
Basic
Event
|
Motion
detection (support alarm triggering by specified target types (human and vehicle),
video tampering alarm, exception
|
|
Linkage
|
Upload
to FTP / memory card (-F), notify surveillance center, send email
|
|
General
|
|
Power
|
12 VDC
± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug
PoE:
802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
|
|
Material
|
Aluminum
alloy body
|
|
Dimension
|
Ø76.6
mm × 164.4 mm (Ø3" × 6.5")
|
|
Package
Dimension
|
234
mm × 120 mm × 117 mm (9.2" × 4.7" × 4.6")
|
|
Weight
|
-L:
Approx. 405 g (0.9 lb.)
|
|
Storage
Conditions
|
-30
°C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
|
|
Startup
and Operating Conditions
|
-30
°C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
|
|
General
Function
|
Heartbeat,
anti-banding, mirror, password protection, password reset via email
|
|
Approval
|
|
EMC
|
FCC:
47 CFR Part 15, Subpart B
CE-EMC:
EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN 50130-4:
2011 + A1: 2014
RCM:
AS/NZS CISPR 32: 2015
KC:
KN32: 2015, KN35: 2015
|
|
Safety
|
UL:
UL 62368-1
CB:
IEC 62368-1: 2014 + A11
CE-LVD:
EN 62368-1: 2014/A11: 2017
BIS:
IS 13252 (Part 1): 2010/IEC 60950-1: 2005
|
|
Environment
|
CE-RoHS:
2011/65/EU WEEE: 2012/19/EU
Reach:
Regulation (EC) No 1907/2006
|
|
Protection
|
IP67:
IEC 60529-2013
|
