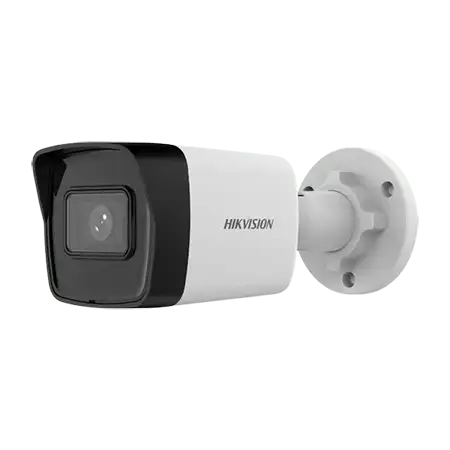

Camera
|
|
Sensor
|
1/3"
Progressive Scan CMOS
|
|
Max.
Resolution
|
2560
× 1440
|
|
Min.
Illumination
|
Color:
0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
|
|
Shutter
Time
|
1/3
s to 1/100,000 s
|
|
Day
& Night
|
IR cut
filter
|
|
Angle
Adjustment
|
Pan:
0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
|
|
Lens
|
|
Lens
Type
|
Fixed
focal lens, 4 mm
|
|
Focal
Length & FOV
|
4 mm,
horizontal FOV 76°, vertical FOV 41°, diagonal FOV 90°
|
|
Lens
Mount
|
M12
|
|
Iris
Type
|
Fixed
|
|
Aperture
|
F2.0
|
|
DORI
|
|
DORI
|
4 mm,
D: 79 m, O: 31 m, R: 15 m, I: 7 m
|
|
Illuminator
|
|
Supplement
Light Type
|
IR
|
|
Supplement
Light Range
|
Up to
30 m
|
|
Smart
Supplement Light
|
Yes
|
|
IR
Wavelength
|
850
nm
|
|
Video
|
|
Main
Stream
|
50 Hz:
20 fps
(2560 × 1440)
25 fps
(1920 × 1080, 1280 × 720)
60 Hz:
20 fps
(2560 × 1440)
24 fps
(1920 × 1080, 1280 × 720)
|
|
Sub-Stream
|
50 Hz:
25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz:
24 fps (1280 × 720, 640 × 480, 640 × 360)
|
|
Video
Compression
|
Main
stream: H.265+ / H.265 / H.264+ / H.264
Sub-stream:
H.265 / H.264 / MJPEG
|
|
Video
Bit Rate
|
32 Kbps
to 8 Mbps
|
|
H.264
Type
|
Baseline
Profile / Main Profile / High Profile
|
|
H.265
Type
|
Main
Profile
|
|
Bit
Rate Control
|
CBR/VBR
|
|
Region
of Interest (ROI)
|
1 fixed
region for main stream
|
|
Audio
|
|
Audio
Type
|
-U:
Mono sound
|
|
Environment
Noise Filtering
|
-U:
Yes
|
|
Audio
Sampling Rate
|
-U:
8 kHz/16 kHz
|
|
Audio
Compression
|
-U:
G.711ulaw / G.711alaw / G.722.1 / G.726 / MP2L2 / PCM / AAC-LC
|
|
Audio
Bit Rate
|
-U:
64 Kbps (G.711 ulaw) / 64 Kbps (G.711 alaw) / 16 Kbps (G.722.1) / 16 Kbps (G.726)
/ 32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
|
|
Network
|
|
Security
|
Password
protection, complicated password, watermark, IP address filter, basic and
digest authentication for HTTP, WSSE and digest authentication for Open
Network
Video
Interface, security audit log, host authentication (MAC address)
|
|
Protocols
|
TCP/IP,
ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
|
|
User/Host
|
Up to
32 users
3 levels:
administrator, operator, and user
|
|
|
|
Wide
Dynamic Range (WDR)
|
120
dB
|
|
SNR
|
≥ 52 dB
|
|
Day/Night
Switch
|
Day,
Night, Auto, Schedule
|
|
Enhancement
|
BLC,
HLC, 3D DNR
|
|
Settings
|
Rotate
mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable
by client software or web browser
|
|
Privacy
Mask
|
4 programmable
polygon privacy masks
|
|
Interface
|
|
Ethernet
Interface
|
1 RJ45
10 M/100 M self-adaptive Ethernet port
|
|
On-Board
Storage
|
-F:
Built-in memory card slot, support microSD / microSDHC / microSDXC card, up to
256GB
|
|
Built-in
Microphone
|
-U:
Yes
|
|
Reset
Key
|
-F:
Yes
|
|
Event
|
|
Basic
Event
|
Motion
detection (support alarm triggering by specified target types (human and vehicle),
video tampering alarm, exception
|
|
Linkage
|
Upload
to FTP/memory card (-F), send email, notify surveillance center, trigger recording
(-F), trigger capture
|
|
General
|
|
Power
|
12 VDC
± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug
PoE:
802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
|
|
Material
|
Metal
& Plastic
|
|
Dimension
|
170.8
mm × 66 mm × 69.1 mm (6.7" × 2.6" × 2.7")
|
|
Package
Dimension
|
216
mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
|
|
General
Function
|
Heartbeat,
anti-banding, mirror, password protection, password reset via email
|
|
Approval
|
|
EMC
|
FCC:
47 CFR Part 15, Subpart B
CE-EMC:
EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011
+A1: 2014
RCM:
AS/NZS CISPR 32: 2015 IC: ICES-003: Issue 7 KC: KN32: 2015, KN35: 2015
|
|
Safety
|
UL:
UL 62368-1
CB:
IEC 62368-1: 2014+A11
CE-LVD:
EN 62368-1: 2014/A11: 2017
BIS:
IS 13252 (Part 1): 2010/IEC 60950-1: 2005
|
|
Environment
|
CE-RoHS:
2011/65/EU WEEE: 2012/19/EU
Reach: Regulation (EC) No 1907/2006
|
|
Protection
|
IP67:
IEC 60529-2013
|
