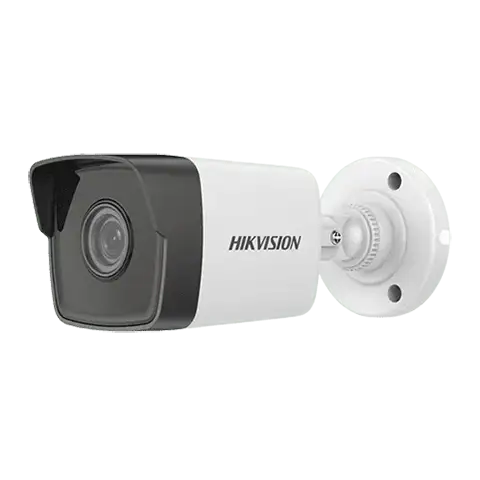

Camera
|
|
Sensor
|
1/2.7"
Progressive Scan CMOS
|
|
Max.
Resolution
|
2560
× 1920
|
|
Min.
Illumination
|
Color:
0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
|
|
Shutter
Speed
|
1/3
s to 1/100,000 s
|
|
Day
& Night
|
IR cut
filter
|
|
Angle
Adjustment
|
Pan:
0° to 360°, tilt: 0° to180°, rotate: 0° to 360°
|
|
Lens
|
|
Lens
Type
|
Fixed
focal lens, 4 mm
|
|
Focal
Length & FOV
|
4 mm,
horizontal FOV 75.3°, vertical FOV 55.5°, diagonal FOV 98.2°
|
|
Lens
Mount
|
M12
|
|
Iris
Type
|
Fixed
|
|
Aperture
|
F2.0
|
|
Illuminator
|
|
Supplement
Light Type
|
IR
|
|
Supplement
Light Range
|
Up to
30 m
|
|
IR
Wavelength
|
850
nm
|
|
Video
|
|
Main
Stream
|
50 Hz:
20 fps (2560 × 1920)
25 fps
(2560 × 1440, 1920 × 1080, 1280 × 720)
60 Hz:
20 fps (2560 × 1920)
30 fps
(2560 × 1440, 1920 × 1080, 1280 × 720)
|
|
Sub-Stream
|
50 Hz:
25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz:
30 fps (1280 × 720, 640 × 480, 640 × 360)
|
|
Video
Compression
|
Main
stream: H.265+ / H.265 / H.264+ / H.264
Sub-stream:
H.265 / H.264 / MJPEG
|
|
Video
Bit Rate
|
32 Kbps
to 16 Mbps
|
|
H.264
Type
|
Baseline
Profile / Main Profile / High Profile
|
|
H.265
Type
|
Main
profile
|
|
Region
of Interest (ROI)
|
1 fixed
region for main stream
|
|
Network
|
|
Protocols
|
TCP/IP,
ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP,
802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
|
|
Simultaneous
Live View
|
Up to
6 channels
|
|
API
|
Open
Network Video Interface, ISAPI
|
|
User/Host
|
Up to
32 users. 3 levels: administrator, operator and user
3 user
levels: administrator, operator, and user
|
|
|
|
Settings
|
Saturation,
brightness, contrast, sharpness, AGC, white balance adjustable by client software
or web browser
|
|
Day/Night
Switch
|
Auto,
Schedule, Day, Night
|
|
Wide
Dynamic Range (WDR)
|
120
dB
|
|
Enhancement
|
BLC,
3D DNR
|
|
Event
|
|
Basic
Event
|
Motion
detection, video tampering, exception
|
|
General
|
|
Power
|
12 VDC
± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug
PoE:
802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
|
|
Dimension
|
177.6
mm × 67.8 mm ×66.2 mm (7" × 2.7" × 2.6")
|
|
Package
Dimension
|
216
mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
|
|
Weight
|
Approx.
270 g (0.6 lb.)
|
|
With
Package Weight
|
Approx.
481 g (1.1 lb.)
|
|
Storage
Conditions
|
-30
°C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
|
|
Startup
and Operating Conditions
|
-30
°C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
|
