DS-2CD1127G2-L 2.8mm

DS-2CD1127G2-L 2.8mm

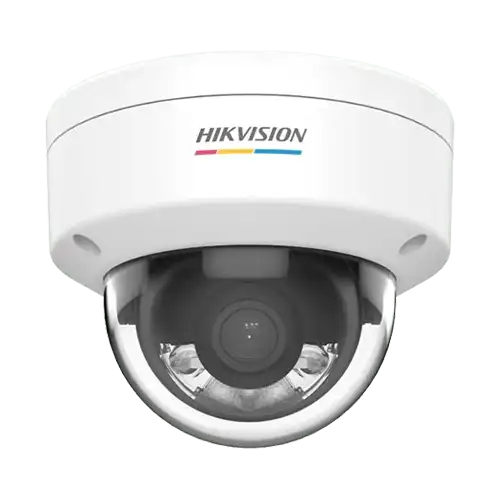

Hikvision DS-2CD1127G2-L 2MP ColorVu MD 2.0 Fixed Dome Network Camera, 24/7 colorful imaging, 1/2.8" Progressive Scan CMOS, Supports Human and Vehicle Detection, Efficient H.265+ compression, Color: 0.001 Lux @ (F1.0, AGC ON), Up to 30m White Light, 25 fps (1920 × 1080, 1280 × 720), Digital WDR, BLC,HLC,3D DNR, Water and dust resistant (IP67) and vandal resistant (IK08).

ColorVu Camera

Hikvision DS-2CD1127G2-L 2MP ColorVu MD 2.0 Fixed Dome Network Camera

White Light

Up to 30m White Light

Frame Rate

50 Hz: 25 fps (1920 × 1080, 1280 × 720)

Smart Features

DWDR, 3D DNR, BLC, ROI

Motion Detection 2.0

Support Human and Vehicle Detection

Protection Level

IP67 Weatherproof, IK10 Vandal Proof

Camera

Image Sensor

1/2.8" Progressive Scan CMOS

Max. Resolution

1920 × 1080

Min. Illumination

Color: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with light

Shutter Time

1/3 s to 1/100,000 s

Day & Night

24/7 color imaging

Angle Adjustment

Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Lens

Lens Type

Fixed focal lens, 2.8 mm

Focal Length & FOV

2.8 mm, horizontal FOV: 106°, vertical FOV: 57°, diagonal FOV: 126°

Lens Mount

M12

Iris Type

Fixed

Aperture

F1.0

Depth of Field

2.8 mm: 1.5 m to

DORI

DORI

2.8 mm, D: 44 m, O: 17 m, R: 8 m, I: 4 m

Illuminator

Supplement Light Type

White Light

Supplement Light Range

Up to 30 m

Smart Supplement Light

Yes

Video

Main Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 720)

60 Hz: 30 fps (1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (640 × 480, 640 × 360)

60 Hz: 30 fps (640 × 480, 640 × 360)

Video Compression

Main stream: H.265+ / H.265 / H.264+ / H.264

Sub-stream: H.265 / H.264 / MJPEG

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

Baseline Profile, Main Profile, High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR, VBR

Region of Interest (ROI)

1 fixed region(s) for main stream

Network

Security

Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)

Simultaneous Live View

Up to 6 channels

Protocols

TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP

User/Host

Up to 32 users

3 user levels: administrator, operator, and user

Client

iVMS-4200, Hik-Connect


Wide Dynamic Range (WDR)

Digital WDR

SNR

52 dB

Day/Night Switch

Day, Night, Auto, Schedule

Image Enhancement

BLC, HLC, 3D DNR

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser

Privacy Mask

4 programmable polygon privacy masks

Interface

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

Event

Basic Event

Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception

General

Power

12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug

PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W

Material

Base: aluminum alloy, cover: plastic

Dimension

Ø121.5 mm × 97.6 mm (Ø4.8" × 3.8")

Package Dimension

150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")

Weight

Approx. 500 g (1.1 lb.)

With Package Weight

Approx. 700 g (1.5 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Language

English, Ukrainian

General Function

Heartbeat, anti-banding, mirror, password protection, password reset via email

Approval

EMC

FCC: 47 CFR Part 15, Subpart B

CE-EMC: EN 55032: 2015, EN 61000-3-2: 2019, EN 61000-3-3: 2013 + A1: 2019, EN

50130-4: 2011 + A1: 2014

RCM: AS/NZS CISPR 32: 2015

KC: KN32: 2015, KN35: 2015

Safety

UL: UL 62368-1

CB: IEC 62368-1: 2014 + A11

CE-LVD: EN 62368-1: 2014/A11: 2017

BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005

Environment

CE-RoHS: 2011/65/EU WEEE: 2012/19/EU

Reach: Regulation (EC) No 1907/2006

Protection

IP67: IEC 60529-2013

IK08: IEC 62262:2002
