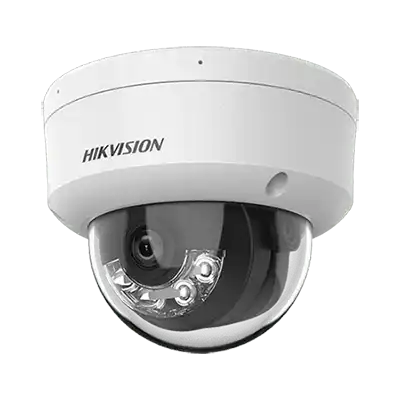

Camera
|
Sensor
|
1/3"
Progressive Scan CMOS
|
Max.
Resolution
|
2560
× 1440
|
Shutter
Time
|
1/3
s to 1/100,000 s
|
Min.
Illumination
|
Color:
0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
|
Day
& Night
|
IR cut
filter
|
Angle
Adjustment
|
Pan:
0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
|
Lens
|
Lens
Type
|
Fixed
focal lens, 2.8mm
|
Focal
Length & FOV
|
2.8
mm, horizontal FOV 98°, vertical FOV 54°, diagonal FOV 114°
|
Lens
Mount
|
M12
|
Iris
Type
|
Fixed
|
Aperture
|
F1.6
|
DORI
|
DORI
|
2.8
mm, D: 63 m, O: 25 m, R: 12 m, I: 6 m
|
Illuminator
|
Supplement
Light Type
|
IR,
White Light
|
Supplement
Light Range
|
IR:
up to 30 m
White
Light: up to 20 m
|
Smart
Supplement Light
|
Yes
|
IR
Wavelength
|
850
nm
|
Video
|
Main
Stream
|
50 Hz:
20 fps
(2560 × 1440)
25 fps
(1920 × 1080, 1280 × 720)
60 Hz:
20 fps
(2560 × 1440)
24 fps
(1920 × 1080, 1280 × 720)
|
Sub-Stream
|
50 Hz:
25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz:
24 fps (1280 × 720, 640 × 480, 640 × 360)
|
Video
Compression
|
Main
stream: H.265+ / H.265 / H.264+ / H.264,
Sub-stream:
H.265 / H.264 / MJPEG
|
Video
Bit Rate
|
32 Kbps
to 8 Mbps
|
H.264
Type
|
Baseline
Profile, Main Profile, High Profile
|
H.265
Type
|
Main
Profile
|
Bit
Rate Control
|
CBR,
VBR
|
Region
of Interest (ROI)
|
1 fixed
region for main stream
|
Audio
|
Audio
Type
|
Mono
sound
|
Environment
Noise Filtering
|
Yes
|
Audio
Sampling Rate
|
8 kHz/16
kHz
|
Audio
Compression
|
G.711ulaw
/ G.711alaw / G.722.1 / G.726 / MP2L2 / PCM / AAC-LC
|
Audio
Bit Rate
|
64 Kbps
(G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160
Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
|
Network
|
Security
|
Password
protection, complicated password, watermark, basic and digest authentication for
HTTP, WSSE and digest authentication for Open Network Video Interface, security
audit log, host authentication (MAC address)
|
Simultaneous
Live View
|
Up to
6 channels
|
Protocols
|
TCP/IP,
ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
|
User/Host
|
Up to
32 users
3 user
levels: administrator, operator, and user
|
Client
|
iVMS-4200,
Hik-Connect
|
|
Wide
Dynamic Range (WDR)
|
120
dB
|
SNR
|
≥ 52 dB
|
Day/Night
Switch
|
Day,
Night, Auto, Schedule
|
Enhancement
|
BLC,
HLC, 3D DNR
|
Settings
|
Rotate
mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable
by client software or web browser
|
Privacy
Mask
|
4 programmable
polygon privacy masks
|
Interface
|
Ethernet
Interface
|
1 RJ45
10 M/100 M self-adaptive Ethernet port
|
Built-in
Microphone
|
Yes
|
Event
|
Basic
Event
|
Motion
detection (support alarm triggering by specified target types (human and vehicle),
video tampering alarm, exception
|
Linkage
|
Upload
to FTP/memory card (-F), send email, notify surveillance center, trigger
|
General
|
Power
|
12 VDC
± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection,
PoE:
IEEE 802.3af, Class 3, max. 7.5 W
|
Material
|
Metal
& Plastic
|
Dimension
|
Ø121.4
mm × 97.7 mm (Ø4.8" × 3.8")
|
Package
Dimension
|
150
mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
|
Weight
|
Approx.
550 g (1.2 lb.)
|
With
Package Weight
|
Approx.
800 g (1.8 lb.)
|
Storage
Conditions
|
-30
°C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
|
Startup
and Operating Conditions
|
-30
°C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
|
General
Function
|
Heartbeat,
anti-banding, mirror, password protection, password reset via email
|
Approval
|
EMC
|
FCC:
47 CFR Part 15, Subpart B,
CE-EMC:
EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN
50130-4:
2011 +A1: 2014,
RCM:
AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7
|
Safety
|
UL:
UL 62368-1,
CB:
IEC 62368-1: 2014+A11,
CE-LVD:
EN 62368-1: 2014/A11: 2017,
BIS:
IS 13252 (Part 1): 2010/IEC 60950-1: 2005
|
Environment
|
CE-RoHS:
2011/65/EU, WEEE: 2012/19/EU,
Reach:
Regulation (EC) No 1907/2006
|
Protection
|
IP67:
IEC 60529-2013, IK08: IEC 62262:2002
|
