DS-2CD1327G2-L 2.8mm

DS-2CD1327G2-L 2.8mm

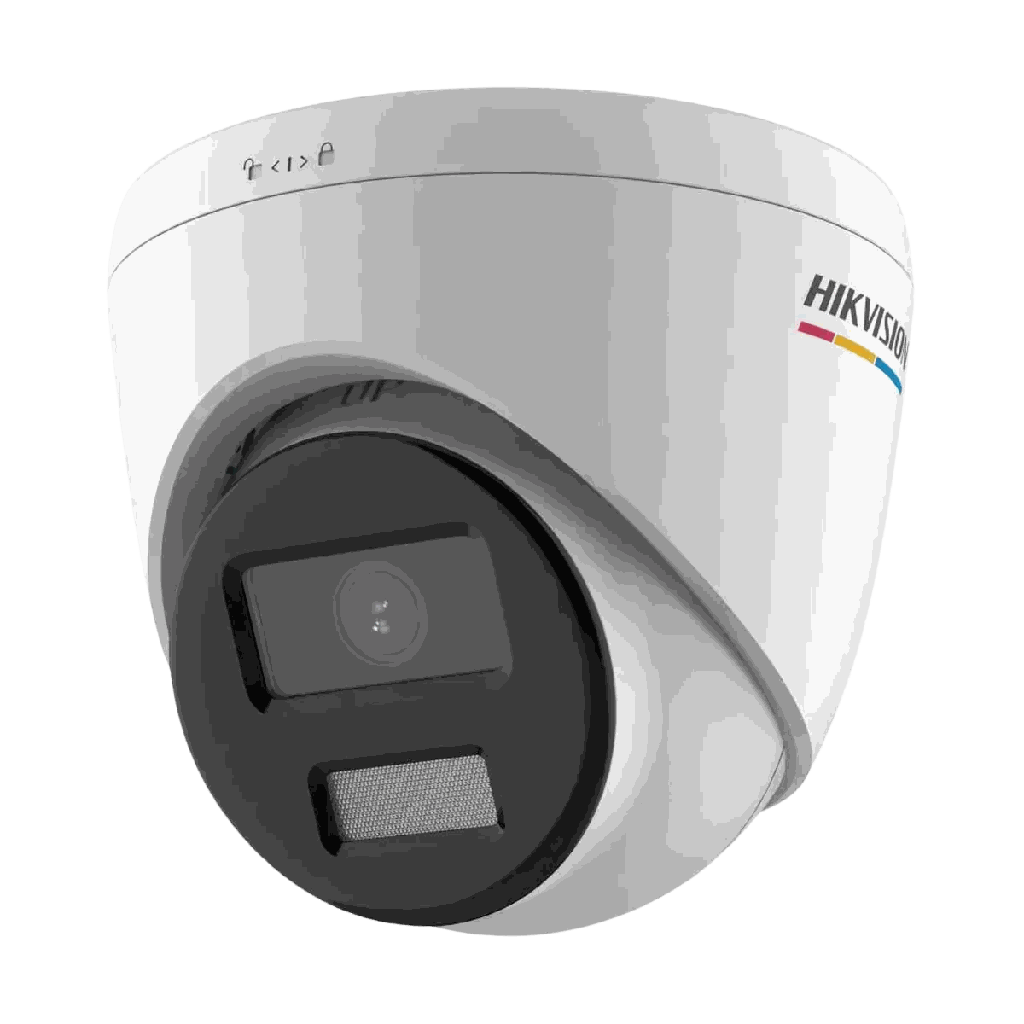

Hikvision DS-2CD1327G2-L 2MP ColorVu MD 2.0 Fixed Turret Network Camera, 24/7 colorful imaging, Support Human and Vehicle Detection, 1/2.8" Progressive Scan CMOS, Up to 30m Supplement Light Range, 25 fps (1920 × 1080, 1280 × 720), Digital WDR, BLC, HLC, 3D DNR, Water and dust resistant (IP67).

ColorVu Camera

Hikvision DS-2CD1327G2-L 2MP ColorVu MD 2.0 Fixed Turret Network Camera

White Light Range

Up to 30m White Light Range

Frame Rate

50 Hz: 25 fps (1920 × 1080, 1280 × 720); 60 Hz: 30 fps (1920 × 1080, 1280 × 720)

Motion Detection 2.0

Support Human and Vehicle Detection

Smart Features

Digital WDR, 3D DNR, BLC, HLC

Protection Level

Water and dust resistant (IP67)

Camera

Image Sensor

1/2.8" Progressive Scan CMOS

Max. Resolution

1920 × 1080

Min. Illumination

Color: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with light

Shutter Time

1/3 s to 1/100,000 s

Day & Night

24/7 color imaging

Angle Adjustment

Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens

Lens Type

Fixed focal lens, 2.8 mm

Focal Length & FOV

2.8 mm, horizontal FOV: 106°, vertical FOV: 57°, diagonal FOV: 126°

Lens Mount

M12

Iris Type

Fixed

Aperture

F1.0

Depth of Field

2.8 mm: 1.5 m to

DORI

DORI

2.8 mm, D: 44 m, O: 17 m, R: 8 m, I: 4 m

Illuminator

Supplement Light Type

White Light

Supplement Light Range

Up to 30 m

Smart Supplement Light

Yes

Video

Main Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 720)

60 Hz: 30 fps (1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (640 × 480, 640 × 360)

60 Hz: 30 fps (640 × 480, 640 × 360)

Video Compression

Main stream: H.265+ / H.265 / H.264+ / H.264,

Sub-stream: H.265 / H.264

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

Baseline Profile, Main Profile, High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR, VBR

Region of Interest (ROI)

1 fixed region(s) for main stream

Network

Protocols

TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, SSL/TLS

Security

Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)


Wide Dynamic Range (WDR)

Digital WDR

SNR

52 dB

Day/Night Switch

Day, Night, Auto, Schedule

Image Enhancement

BLC, HLC, 3D DNR

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser

Privacy Mask

4 programmable polygon privacy masks

Interface

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

Event

Basic Event

Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception

Linkage

Upload to FTP/memory card (-F), notify surveillance center, send email, trigger recording (-F), trigger capture

General

Power

12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug, PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W

Material

Metal & Plastic

Dimension

Ø109.9 mm × 103.6 mm (Ø4.3" × 4.1")

Package Dimension

150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

General Function

Heartbeat, anti-banding, mirror, password protection, password reset via email

Approval

EMC

FCC: 47 CFR Part 15, Subpart B,

CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

RCM: AS/NZS CISPR 32: 2015,

KC: KN32: 2015, KN35: 2015

Safety

UL: UL 62368-1,

CB: IEC 62368-1: 2014+A11,

CE-LVD: EN 62368-1: 2014/A11: 2017,

BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005

Environment

CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU,

Reach: Regulation (EC) No 1907/2006

Protection

IP67: IEC 60529-2013
