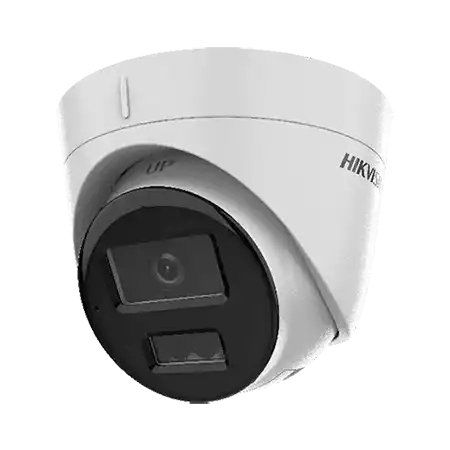

Camera
|
|
Sensor
|
1/2.4"
Progressive Scan CMOS
|
|
Max.
Resolution
|
3200
× 1800
|
|
Shutter
Time
|
1/3
s to 1/100,000 s
|
|
Min.
Illumination
|
Color:
0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
|
|
Day
& Night
|
IR
cut filter
|
|
Angle
Adjustment
|
Pan:
0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
|
|
Lens
|
|
Lens
Type
|
Fixed
focal lens, 2.8 mm
|
|
Focal
Length & FOV
|
2.8
mm, Horizontal FOV 105°, Vertical FOV 55°, Diagonal FOV 127°
|
|
Lens
Mount
|
M12
|
|
Iris
Type
|
Fixed
|
|
Aperture
|
F1.6
|
|
DORI
|
|
DORI
|
2.8
mm, D: 76 m, O: 30 m, R: 15 m, I: 7 m
|
|
Illuminator
|
|
Supplement
Light Type
|
IR,
White Light
|
|
Supplement
Light Range
|
Up
to 30 m
|
|
Smart
Supplement Light
|
Yes
|
|
IR
Wavelength
|
850
nm
|
|
Video
|
|
Main
Stream
|
50
Hz:
20
fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60
Hz:
20
fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
|
|
Sub-Stream
|
50
Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
60
Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
|
|
Video
Compression
|
Main
stream: H.265+ / H.265 / H.264+ / H.264,
Sub-stream:
H.265 / H.264 / MJPEG
|
|
Video
Bit Rate
|
32
Kbps to 16 Mbps
|
|
H.264
Type
|
Baseline
Profile, Main Profile, High Profile
|
|
H.265
Type
|
Main
Profile
|
|
Bit
Rate Control
|
CBR,
VBR
|
|
Region
of Interest (ROI)
|
1
fixed region for main stream
|
|
Network
|
|
Security
|
Password
protection, complicated password, watermark, basic and digest authentication
for HTTP, WSSE and digest authentication for Open Network Video Interface,
security audit log, host authentication (MAC address)
|
|
API
|
Open
Network Video Interface (Profile S, Profile T, Profile G (only -F model
supports)), ISAPI, SDK
|
|
Protocols
|
TCP/IP,
ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
|
|
User/Host
|
Up
to 32 users
3
user levels: administrator, operator, and user
|
|
|
|
Wide
Dynamic Range (WDR)
|
120
dB
|
|
SNR
|
≥ 52 dB
|
|
Day/Night
Switch
|
Day,
Night, Auto, Schedule
|
|
Enhancement
|
BLC,
HLC, 3D DNR
|
|
Settings
|
Rotate
mode, saturation, brightness, contrast, sharpness, gain, white balance,
adjustable by client software or web browser
|
|
Privacy
Mask
|
4
programmable polygon privacy masks
|
|
Interface
|
|
Ethernet
Interface
|
1
RJ45 10 M/100 M self-adaptive Ethernet port
|
|
On-Board
Storage
|
-F:
Built-in memory card slot, support microSD / microSDHC / microSDXC card, up
to 256 GB
|
|
Built-in
Microphone
|
Yes
|
|
Reset
Key
|
-F:
Yes
|
|
Event
|
|
Basic
Event
|
Motion
detection (support alarm triggering by specified target types (human and
vehicle)), video tampering alarm, exception
|
|
Linkage
|
Upload
to FTP/memory card (-F), send email, notify surveillance center, trigger
recording (-F), trigger capture
|
|
General
|
|
Power
|
12
VDC ± 25%, 0.41 A, max. 5 W, Ø5.5 mm coaxial power plug, reverse polarity
protection,
PoE:
IEEE 802.3af, Class 3, max. 6.5 W
|
|
Material
|
Metal
& Plastic
|
|
Dimension
|
Ø110
mm × 89.2 mm (Ø4.3" × 3.5")
|
|
Package
Dimension
|
150
mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")
|
|
Weight
|
Approx.
340 g (0.7 lb.)
|
|
With
Package Weight
|
Approx.
560 g (1.2 lb.)
|
|
General
Function
|
Heartbeat,
anti-banding, mirror, password protection, password reset via email
|
|
Approval
|
|
EMC
|
CE-EMC:
EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4:
2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7
|
|
Safety
|
UL:
UL 62368-1,
CB:
IEC 62368-1: 2014+A11,
CE-LVD:
EN 62368-1: 2014/A11: 2017,
BIS:
IS 13252 (Part 1): 2010/IEC 60950-1: 2005
|
|
Environment
|
CE-RoHS:
2011/65/EU, WEEE: 2012/19/EU,
Reach:
Regulation (EC) No 1907/2006
|
|
Protection
|
IP67:
IEC 60529-2013
|
