DS-2CD1363G2-LIUF/SL 2.8mm

DS-2CD1363G2-LIUF/SL 2.8mm

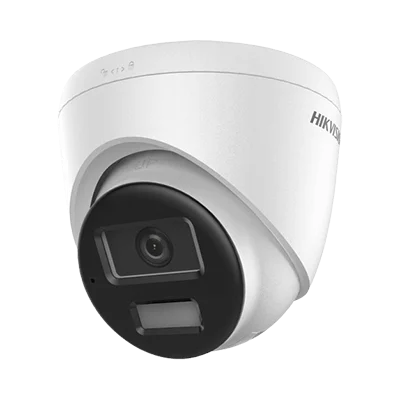

Hikvision DS-2CD1363G2-LIUF/SL 6MP Smart Hybrid Light Fixed Turret Network Camera, Support Human and Vehicle Detection, Smart Hybrid Light, Support on-board storage up to 512 GB (SD card slot), Built-in Microphone, Built-In Speaker for audible warning, 1/2.4" Progressive Scan CMOS, Max. Resolution: 3200 × 1800, Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR, Up to 30m Supplement Light Range, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720), 120 dB WDR, BLC, HLC, 3D DNR, Reset Key, Water and dust resistant (IP67).

Dual Light Camera

Hikvision DS-2CD1363G2-LIUF/SL 6MP Smart Hybrid Light Turret Network Camera

Supplement Light Type

IR, White Light, Supplement Light Range Up to 30 m

Frame Rate

50 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Smart Features

Support Human and Vehicle Detection, 120dB WDR, BLC, HLC, 3D DNR

On-Board Storage

Built-in memory card slot, support microSD card

Audio

Built-in Microphone & Built-in Speaker for audible warning

Video Compression

Main stream: H.265+/H.264+/H.265/H.264

Sub stream: H.265/H.264/MJPEG

Protection Level

IP67 Weatherproof

Camera

Image Sensor

1/2.4" Progressive Scan CMOS

Max. Resolution

3200 × 1800

Shutter Time

1/3 s to 1/100,000 s

Min. Illumination

Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR

Day & Night

IR cut filter

Angle Adjustment

Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens

Lens Type

Fixed focal lens, 2.8mm

Focal Length & FOV

2.8 mm, horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127°

Lens Mount

M12

Iris Type

Fixed

Aperture

F1.6

DORI

DORI

2.8 mm, D: 76 m, O: 30 m, R: 15 m, I: 7 m

Illuminator

Supplement Light Type

IR, White Light

Supplement Light Range

Up to 30 m

Smart Supplement Light

Yes

IR Wavelength

850 nm

Video

Main Stream

50 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)

Video Compression

Main stream: H.265+ / H.265 / H.264+ / H.264,

Sub-stream: H.265 / H.264 / MJPEG

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Baseline Profile, Main Profile, High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR, VBR

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Region of Interest (ROI)

1 fixed region for main stream

Audio

Audio Type

Mono sound

Audio Sampling Rate

8 kHz/16 kHz

Environment Noise Filtering

Yes

Audio Compression

G.711 / G.722.1 / G.726 / MP2L2 / PCM / AAC-LC

Audio Bit Rate

64 Kbps (G.711ulaw/G.711alaw) / 16 Kbps (G.722.1) / 16 Kbps (G.726) / 32 to 160 Kbps (MP2L2) / 16 to 64 Kbps (AAC-LC)

Network

Security

Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)

API

Open Network Video Interface (Profile S, Profile T, Profile G), ISAPI, SDK

Protocols

TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP


Wide Dynamic Range (WDR)

120 dB

SNR

52 dB

Day/Night Switch

Day, Night, Auto, Schedule

Image Enhancement

BLC, HLC, 3D DNR

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser

Privacy Mask

4 programmable polygon privacy masks

Interface

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage

Built-in memory card slot, support microSD / microSDHC / microSDXC card, up to 512 GB

Built-in Microphone

Yes, 1 built-in microphone

Built-in Speaker

Max. power consumption: 1.5 W, max. sound pressure level: 10 cm: 95 dB.

Reset Key

Yes

Event

Basic Event

Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception

Linkage

Upload to FTP / NAS / memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, flashing light

General

Power

12 VDC ± 25%, 0.66 A, max. 8 W, Ø5.5 mm coaxial power plug, reverse polarity protection,

PoE: IEEE 802.3af, Class 3, max. 9.5 W

Material

Metal & Plastic

Dimension

Ø110 mm × 102.7 mm (Ø4.33" × 4.04 ")

Package Dimension

150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6")

Weight

Approx. 340 g (0.7 lb.)

With Package Weight

Approx. 560 g (1.2 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

General Function

Heartbeat, anti-banding, mirror, password protection, password reset via email

Flashing Light

Yes

Approval

EMC

CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,

RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7

Safety

UL: UL 62368-1,

CB: IEC 62368-1: 2014+A11,

CE-LVD: EN 62368-1: 2014/A11: 2017,

BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005

Environment

CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU,

Reach: Regulation (EC) No 1907/2006

Protection

IP67: IEC 60529 - 2013
