DS-2CD1623G0-IZS/UK 2.7-13.5mm
DS-2CD1623G0-IZS/UK 2.7-13.5mm

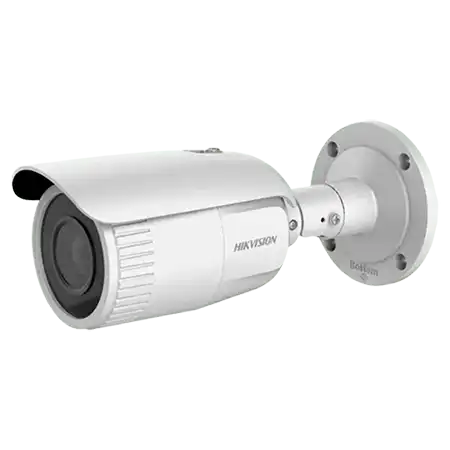

Hikvision DS-2CD1623G0-IZS/UK 2MP EXIR VF Network Bullet Camera, 1080p @ 30fps, Focal Length 2.7-13.5mm, Varifocal Camera, Motorized Zoom, 60m IR Range, 120dB True WDR, 3D-DNR, BLC, ROI, True Day/Night with ICR, Alarm I/O, Audio I/O, ANR, SD Card Support Upto 128GB, IP67 Weatherproof, IK10, PoE/12VDC.
Resolution
2MP (1920 × 1080) Full HD
IR Range
Up to 60m with EXIR Technology
Frame Rate
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
Video Compression
Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream:H.265/H.264
Interface
Alarm I/O, Audio I/O, Built-in SD Card Slot (Up to 128G)
Smart Features
120dB WDR, 3D DNR, BLC, HLC, ROI, Behavior Analysis, Face Detection
Protection Level
IP67 Weatherproof, IK10 Vandal Proof
Alarms Trigger
Motion detection, Intrusion Detecting, line crossing
Video tampering alarm, network disconnected
IP address conflicted, illegal login
Camera |
|
Image Sensor |
1/2.8" Progressive Scan CMOS |
Min. Illumination |
Color: 0.01 Lux @(F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON) |
Shutter Speed |
1/3 s to 1/100, 000 s, support slow shutter |
Slow Shutter |
Yes |
Auto-Iris |
No |
Day & Night |
IR cut filter |
Digital Noise Reduction |
3D DNR |
WDR |
120dB WDR |
Angle Adjustment |
Pan: 0° to 360°, tilt: 0° to 90°, rotation: 0° to 360° |
Lens |
|
Focal Length |
2.7 to 13.5 mm |
Aperture |
F1.6 |
Focus |
Auto |
FOV |
Horizontal field of view: 98° to 34° Vertical field of view: 51° to 19° Diagonal field of view: 115° to 40° |
Lens Mount |
Φ14 |
IR |
|
IR Range |
Up to 60 m |
Wavelength |
850 nm |
Compression Standard |
|
Video Compression |
Main stream: H.265 / H.264 Sub-stream: H.265 / H.264 / MJPEG Third stream:H.265 / H.264 |
H.264 Type |
Baseline Profile / Main Profile / High Profile |
H.264+ |
Main stream supports |
H.265 Type |
Main Profile |
H.265+ |
Main stream supports |
Video Bit Rate |
32 Kbps to 8 Mbps |
Audio Compression |
G.711 / G.722.1 / G.726 / MP2L2 / PCM |
Audio Bit Rate |
64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-192Kbps(MP2L2) |
Smart Feature-set |
|
Region of Interest |
1 fixed region for main stream and sub-stream |
Behavior Analysis |
Line crossing detection, intrusion detection, |
Face Detection |
Yes |
Image |
|
Max. Resolution |
1920 × 1080 |
Main Stream Max. Frame Rate |
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) |
Sub-stream Max. Frame Rate |
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
Third steam Max. Frame Rate |
50Hz:[email protected] 60Hz:[email protected] |
Image Enhancement |
BLC, 3D DNR, HLC |
Image Settings |
Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser |
Day/Night Switch |
Auto, scheduled |
Network |
|
Network Storage |
Support Micro SD/SDHC/SDXC card (128G ), local storage and NAS (NFS,SMB/CIFS), ANR |
Alarm Trigger |
Motion detection, Intrusion Detecting, line crossing, video tampering alarm, network disconnected, IP address conflicted, illegal login |
Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
General Function |
One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark |
API |
ONVIF (PROFILE S, PROFILE G), ISAPI |
Simultaneous Live View |
Up to 6 channels |
User/Host |
Up to 32 users 3 levels: Administrator, Operator and User |
Client |
iVMS-4200, iVMS-4500, iVMS-5200 |
Interface |
|
Communication Interface |
1 RJ45 10M/100M self-adaptive Ethernet port |
Audio |
1 input (line in/mic in), 1 output (line out), mono |
Alarm |
1-ch input, 1-ch output (up to 12 VDC 1A or 10 VAC 500 mA) |
Reset Button |
Yes |
Audio |
|
Environment Noise Filtering |
Support |
Audio Sampling Rate |
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
General |
|
Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing) |
Power Supply |
12 VDC ± 20%, 5.5 mm coaxial power plug PoE (802.3af, class 3) |
Power Consumption and Current |
12 VDC, 0.9 A, max. 11 W; PoE: (802.3af, 36 V to 57 V), 0.4 A to 0.2 A, max. 12.9 W |
Protection Level |
IP67, IK10 TVS 2000V lightning protection, surge protection and voltage transient protection |
Material |
Metal |
Dimensions |
Φ 105 mm × 244.4 mm (Φ 4.1" × 9.6") |
