DS-2CD1743G0-IZS/UK 2.7-13.5mm
DS-2CD1743G0-IZS/UK 2.7-13.5mm

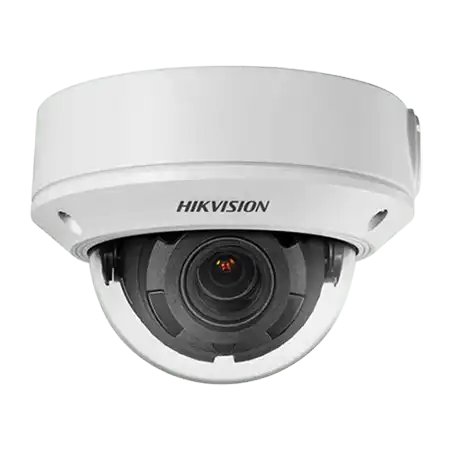

Hikvision DS-2CD1743G0-IZS/UK 4MP VF Network Dome Camera, 4MP @ 20fps, Focal Length 2.7-13.5mm, Motorized Zoom, 50m IR Range, 120dB True WDR, 3D-DNR, BLC, ROI, True Day/Night with ICR, Alarm I/O, Audio I/O, ANR, SD Card Support Upto 128GB, IP67 Weatherproof, PoE/12 VDC
Resolution
2MP (2560 × 1440)
IR Range
Up to 50m IR Range
Frame Rate
50Hz: 30fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720)
Video Compression
Main stream: H.265/H.264
Sub stream/Third stream: H.265/H.264/MJPEG
Interface
Alarm I/O, Audio I/O, Built-in SD Card Slot (Up to 128G)
Smart Features
120dB WDR, 3D DNR, BLC, HLC, ROI, Behavior Analysis, Face Detection
Protection Level
IP67 Weatherproof, IK10 Vandal Proof
Alarms Trigger
Motion detection, video tampering alarm
Network disconnected, Illegal login
Camera | |
Image Sensor | 1/3" progressive scan CMOS |
Min. Illumination | Color: 0.01 Lux @(F1.2, AGC ON), 0.018Lux @ (F1.6, AGC ON) |
Shutter Speed | 1/3 s to 1/100, 000 s, support slow shutter |
Slow Shutter | Yes |
Auto-Iris | No |
Day &Night | IR cut filter |
Digital Noise Reduction | 3D DNR |
WDR | 120 dB |
Angle Adjustment | Pan: 0° to 355°, tilt: 0° to 70°, rotation: 0° to 360° |
Lens | |
Focal Length | 2.7 to 13.5 mm |
Aperture | F1.6 |
Focus | Auto |
FOV | Horizontal field of view: 98° to 28° Vertical field of view: 51° to 16° Diagonal field of view: 115° to 32° |
Lens Mount | Φ14 |
IR | |
IR Range | Up to 50 m |
Wavelength | 850 nm |
Compression Standard | |
Video Compression | Main stream: H.265 / H.264 Sub stream / Third stream: H.265 / H.264 / MJPEG |
H.264 Type | Baseline Profile / Main Profile / High Profile |
H.264+ | Main stream supports |
H.265 Type | Main Profile |
H.265+ | Main stream supports |
Video Bit Rate | 32 Kbps to 8 Mbps |
Audio Compression | G.711 / G.722.1 / G.726 / MP2L2 / PCM |
Audio Bit Rate | 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-192Kbps(MP2L2) |
Smart Feature-set | |
Region of Interest | 1 fixed region for main stream and sub-stream |
Behavior Analysis | Line crossing detection, intrusion detection, |
Exception Detection | audio exception detection |
Face Detection | Yes |
Image | |
Max. Resolution | 2560 × 1440 |
Main Stream Max. Frame Rate | 50Hz: 30fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720) 60Hz: 30fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720) |
Sub-stream Max. Frame Rate | 50Hz: 30fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
Third steam Max. Frame Rate | 50Hz: [email protected] 60Hz: [email protected] |
Image Enhancement | BLC, 3D DNR,HLC |
Image Setting | Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser |
Day/Night Switch | Auto, scheduled |
Network | |
Network Storage | Support Micro SD/SDHC/SDXC card (128G ), local storage and NAS (NFS,SMB/CIFS), ANR |
Alarm Trigger | Motion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login |
Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
General Function | One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
API | ONVIF (PROFILE S, PROFILE G), ISAPI |
Simultaneous Live View | Up to 6 channels |
User/Host | Up to 32 users 3 levels: Administrator, Operator and User |
Client | iVMS-4200, Hik-Connect, iVMS-5200 |
Interface | |
Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
Audio | 1 input (line in/mic in), 1 output (line out), mono |
Alarm | 1-ch input, 1-ch output (up to 12 VDC 1A or 10 VAC 500 mA) |
Video Output | 1Vp-p composite output (75 Ω/BNC) |
Reset Button | Yes |
Audio | |
Environment Noise Filtering | Support |
Audio Sampling Rate | 8 kHz /16 kHz / 32 kHz / 44.1 kHz / 48 kHz |
General | |
Operating Conditions | -30 °C to 50 °C (-22 °F to 122 °F), humidity: 95% or less (non-condensing) |
Power Supply | 12 VDC ± 25%, 5.5 mm coaxial power plug PoE (802.3af, class 3) |
Power Consumption and Current | 12 VDC, 0.8 A, Max: 10 W; PoE: (802.3af, 36 V to 57 V), 0.35 A to 0.2 A, Max: 12 W |
Protection Level | IP67, IK10 TVS 2000V lightning protection, surge protection and voltage transient protection |
Material | Metal & Plastic |
Dimensions | Camera: Φ 141 mm × 99.9 mm (5.6" × 3.9") |
