DS-2CD1T43G2-LIUF 4mm

DS-2CD1T43G2-LIUF 4mm

Hikvision DS-2CD1T43G2-LIUF 4MP Smart Dual Light Fixed Bullet Network Camera with Built-in Mic, 1/3" Progressive Scan CMOS, Color: 0.005 Lux @ (F1.6, AGC ON), IR: up to 50m, White Light: up to 30m, 20 fps (2560 × 1440), 25 fps (1920 × 1080), Support Human and Vehicle Detection, BLC, HLC, 3D DNR, 120dB WDR, Built-in memory card slot (up to 256GB), IP67: IEC 60529-2013.

Smart Dual Light

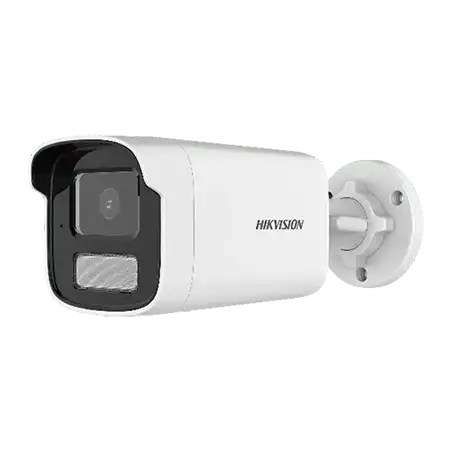

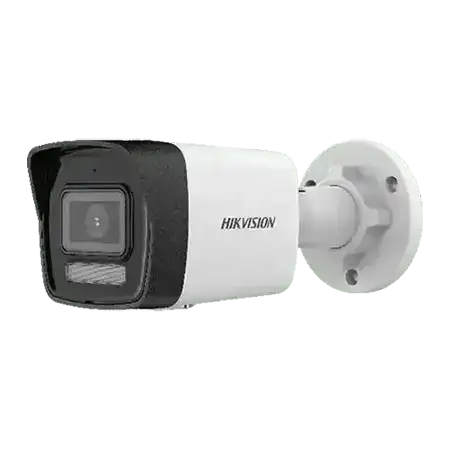

Hikvision DS-2CD1T43G2-LIUF 4MP Smart Dual Light Fixed Bullet Network Camera

IR Range

IR Range: up to 50m, White Light Range: up to 30m

Frame Rate

20 fps (2560 × 1440)

24 fps (1920 × 1080, 1280 × 720)

Audio

Built-in Microphone

On-Board Storage

Built-in memory card slot, support microSD card up to 256 GB

Smart Features

Support Human and Vehicle Detection

Video Compression

Main stream: H.265+/H.265/H.264+/H.264

Sub stream: H.265/H.264/MJPEG

Protection Level

Water and dust resistant (IP67)

Camera

Image Sensor

1/3" Progressive Scan CMOS

Max. Resolution

2560 × 1440

Min. Illumination

Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR

Shutter Time

1/3 s to 1/100,000 s

Day & Night

IR cut filter

Angle Adjustment

Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°

Lens

Lens Type

Fixed focal lens, 4 mm

Focal Length & FOV

4 mm, horizontal FOV 78°, vertical FOV 42°, diagonal FOV 93°

Iris Type

Fixed

Lens Mount

M12

Aperture

F1.6

DORI

DORI

4 mm, D: 78 m, O: 31 m, R: 15 m, I: 7 m

Illuminator

Supplement Light Range

IR: up to 50 m

White Light: up to 30 m

Smart Supplement Light

Yes

Supplement Light Type

IR, White Light

IR Wavelength

850 nm

Video

Main Stream

50 Hz:

20 fps (2560 × 1440)

25 fps (1920 × 1080, 1280 × 720)

60 Hz:

20 fps (2560 × 1440)

24 fps (1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)

H.265 Type

Main Profile

Video Compression

Main stream: H.265+ / H.265 / H.264+ / H.264,

Sub-stream: H.265 / H.264 / MJPEG

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

Baseline Profile, Main Profile, High Profile

Bit Rate Control

CBR, VBR

Region of Interest (ROI)

1 fixed region for main stream

Audio

Audio Bit Rate

64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2) / 16 to 64 Kbps (AAC-LC)

Audio Type

Mono sound

Environment Noise Filtering

Yes

Audio Sampling Rate

8 kHz/16 kHz

Audio Compression

G.711ulaw / G.711alaw / G.722.1 / G.726 / MP2L2 / PCM / AAC-LC

Network

Client

iVMS-4200, Hik-Connect

Simultaneous Live View

Up to 6 channels

Security

Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)

API

Open Network Video Interface (Profile S, Profile T, Profile G (only -F model supports)), ISAPI, SDK

Protocols

TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP

User/Host

Up to 32 users

3 user levels: administrator, operator, and user


Day/Night Switch

Day, Night, Auto, Schedule

Image Enhancement

BLC, HLC, 3D DNR

Wide Dynamic Range (WDR)

120 dB

SNR

52 dB

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser

Privacy Mask

4 programmable polygon privacy masks

Interface

On-Board Storage

-F: Built-in memory card slot, support microSD / microSDHC / microSDXC card, up to 256 GB

Built-in Microphone

Yes

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

Reset Key

-F: Yes

Event

Basic Event

Motion detection (support alarm triggering by specified target types (human and vehicle), video tampering alarm, exception

Linkage

Upload to FTP/memory card (-F), send email, notify surveillance center, trigger recording (-F), trigger capture

General

Power

12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug, reverse polarity protection,

PoE: IEEE 802.3af, Class 3, max. 7 W

Material

Metal & Plastic

Dimension

83.7 mm × 80.7 mm × 205.6 mm (3.3" × 3.2" × 8.1")

Package Dimension

260 mm × 125 mm × 125 mm (10.2" × 4.9" × 4.9")

With Package Weight

Approx. 635 g (1.4 lb.)

Weight

Approx. 580 g (1.3 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

General Function

Heartbeat, anti-banding, mirror, password protection, password reset via email

Approval

Protection

IP67: IEC 60529-2013

EMC

FCC: 47 CFR Part 15, Subpart B,

CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN

50130-4: 2011 +A1: 2014,

RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7

Safety

UL: UL 62368-1,

CB: IEC 62368-1: 2014+A11,

CE-LVD: EN 62368-1: 2014/A11: 2017,

BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005

Environment

CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU,

Reach: Regulation (EC) No 1907/2006
