DS-2CD1T47G2H-LIU 4mm

DS-2CD1T47G2H-LIU 4mm

Hikvision DS-2CD1T47G2H-LIU 4MP ColorVu with Smart Hybrid Light Fixed Bullet Network Camera, 1/3" Progressive Scan CMOS, 20 fps (2560 × 1440), Support Human and Vehicle Detection, Smart Hybrid Light, Up to 50m Supplement Light Range, Built-in microphone for real-time audio security, BLC, HLC, 3D DNR, 120dB WDR, Water and dust resistant (IP67).

Smart Dual Light Camera

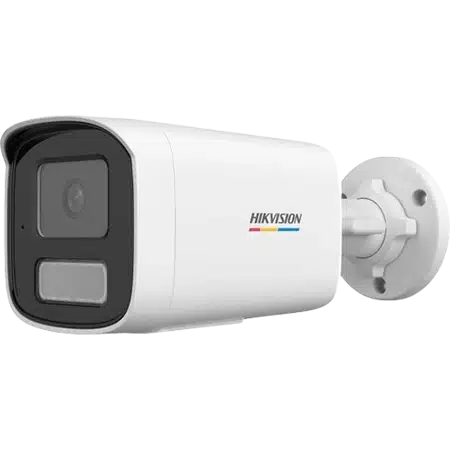

Hikvision DS-2CD1T47G2H-LIU 4MP ColorVu with Smart Hybrid Light Bullet Camera

IR Range

IR Range: up to 50m Supplement Light Range

Frame Rate

20 fps (2560 × 1440); 25 fps (1920 × 1080, 1280 × 720)

Smart Features

Support Human and Vehicle Detection

Audio

Built-in Microphone for real-time Audio Security

Protection Level

Water and Dust Resistant (IP67)

Camera

Image Sensor

1/3" Progressive Scan CMOS

Max. Resolution

2560 × 1440

Min. Illumination

Color: 0.001 Lux @ (F1.0, AGC ON), B/W: 0 Lux with IR

Shutter Time

1/3 s to 1/100,000 s

Day & Night

IR cut filter

Angle Adjustment

Pan: 0° to 355°, tilt: 0° to 180°, rotate: 0° to 355°

Lens

Lens Type

Fixed focal lens, 4 mm

Focal Length & FOV

4 mm, horizontal FOV 94°, vertical FOV 50°, diagonal FOV 110°

Lens Mount

M12

Iris Type

Fixed

Aperture

F1.0

DORI

DORI

4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m

Illuminator

Supplement Light Type

IR, White Light

Supplement Light Range

Up to 50 m

Smart Supplement Light

Yes

IR Wavelength

850 nm

Video

Main Stream

50 Hz:

20 fps (2560 × 1440)

25 fps (1920 × 1080, 1280 × 720)

60 Hz:

20 fps (2560 × 1440)

24 fps (1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 24 fps (1280 × 720, 640 × 480, 640 × 360)

Video Compression

Main stream: H.265+ / H.265 / H.264+ / H.264,

Sub-stream: H.265 / H.264 / MJPEG

Video Bit Rate

32 Kbps to 8 Mbps

H.264 Type

Baseline Profile, Main Profile, High Profile

H.265 Type

Main Profile

Bit Rate Control

CBR, VBR

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Region of Interest (ROI)

1 fixed region for main stream

Audio

Audio Type

Mono sound

Audio Compression

G.711 / G.722.1 / G.726 / MP2L2 / PCM / AAC-LC

Audio Bit Rate

64 Kbps (G.711) / 16 Kbps (G.722.1) / 16 Kbps (G.726) / 32 to 160 Kbps (MP2L2) / 16 to 64 Kbps (AAC-LC)

Audio Sampling Rate

8 kHz/16 kHz

Environment Noise Filtering

Yes

Network

Protocols

IPv4, IPv6, TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, UDP, QoS, FTP, SMTP, UPnP

Security

Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)


Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser

Day/Night Switch

Day, Night, Auto, Schedule

Wide Dynamic Range (WDR)

120 dB

SNR

52 dB

Image Enhancement

BLC, HLC, 3D DNR

Privacy Mask

4 programmable polygon privacy masks

Interface

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

Built-in Microphone

Yes, 1 built-in microphone

Event

Basic Event

Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception

General

Power

12 VDC ± 25%, 0.57 A, max. 6.8 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 8.3 W

Material

Front cover: metal, body: plastic, bracket: plastic

Dimension

81 mm × 83.7 mm × 201.96 mm (3.17" × 3.29" × 7.95")

Package Dimension

150 mm × 150 mm × 141 mm (5.91" × 5.91" × 5.55")

Weight

Approx. 550 g (1.2 lb.)

With Package Weight

Approx. 800 g (1.8 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Approval



EMC

CE-EMC: EN 55032: 2015+A1:2020, EN 50130-4: 2011+A1: 2014, EN IEC 61000-3-2: 2019+A1: 2021, EN 61000-3-3:2013+A1: 2019+A2: 2021, RCM: AS/NZS CISPR 32: 2015,

IC: ICES-003: Issue 7



Safety

CB: IEC 62368-1: 2014+A11,

CE-LVD: EN 62368-1: 2014/A11: 2017,

BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005



Environment

CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU,

Reach: Regulation (EC) No 1907/2006



Protection

IP67: IEC 60529-2013
