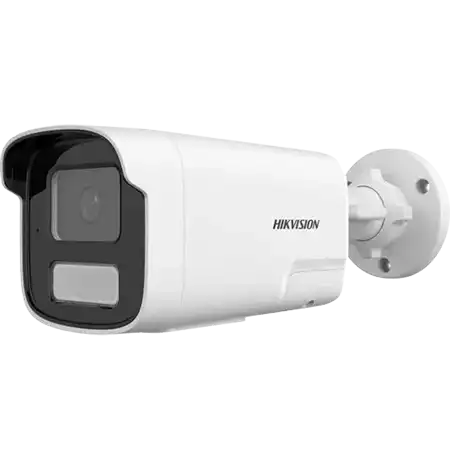

Camera
|
|
Sensor
|
1/2.7"
Progressive Scan CMOS
|
|
Max.
Resolution
|
3840
× 2160
|
|
Min.
Illumination
|
Color:
0.01 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR
|
|
Shutter
Time
|
1/3
s to 1/100, 000 s
|
|
Day
& Night
|
IR
cut filter
|
|
Angle
Adjustment
|
Pan:
0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°
|
|
Lens
|
|
Lens
Type
|
Fixed
focal lens, 4 and 6 mm optional
|
|
Iris
Type
|
Fixed
|
|
Focal
Length & FOV
|
4
mm, horizontal FOV 90°, vertical FOV 49°, diagonal FOV 108°
|
|
Lens
Mount
|
M12
|
|
Aperture
|
F2.0
|
|
DORI
|
|
DORI
|
4
mm, D: 102 m, O: 40 m, R: 20 m, I: 10 m
|
|
Illuminator
|
|
Supplement
Light Range
|
Up
to 50 m
|
|
Smart
Supplement Light
|
Yes
|
|
Supplement
Light Type
|
IR,
White Light
|
|
IR
Wavelength
|
850
nm
|
|
Video
|
|
Main
Stream
|
50
Hz:
12.5
fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60
Hz:
15
fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
|
|
Sub-Stream
|
50
Hz: 12.5 fps (1280 × 720, 640 × 480, 640 × 360)
60
Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360)
|
|
H.265
Type
|
Main
Profile
|
|
Video
Compression
|
Main
stream: H.265+ / H.265 / H.264+ / H.264,
Sub-stream:
H.265 / H.264 / MJPEG
|
|
Video
Bit Rate
|
32
Kbps to 16 Mbps
|
|
H.264
Type
|
Baseline
Profile, Main Profile, High Profile
|
|
Bit
Rate Control
|
CBR,
VBR
|
|
Region
of Interest (ROI)
|
1
fixed region for main stream
|
|
Scalable
Video Coding (SVC)
|
H.264
and H.265 encoding
|
|
Audio
|
|
Audio
Bit Rate
|
64
Kbps (G.711ulaw/G.711alaw) / 16 Kbps (G.722.1) / 16 Kbps (G.726) / 32 to 160
Kbps (MP2L2) / 16 to 64 Kbps (AAC-LC)
|
|
Audio
Sampling Rate
|
8
kHz/16 kHz
|
|
Audio
Type
|
Mono
sound
|
|
Environment
Noise Filtering
|
Yes
|
|
Audio
Compression
|
G.711
/ G.722.1 / G.726 / MP2L2 / PCM/AAC-LC
|
|
Network
|
|
Simultaneous
Live View
|
Up
to 6 channels
|
|
Security
|
Password
protection, complicated password, watermark, basic and digest authentication
for HTTP, WSSE and digest authentication for Open Network Video Interface,
security audit log, host authentication (MAC address)
|
|
API
|
Open
Network Video Interface (Profile S, Profile T, Profile G), ISAPI, SDK
|
|
Protocols
|
TCP/IP,
ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP
|
|
User/Host
|
Up
to 32 users
3
user levels: administrator, operator, and user
|
|
|
|
Day/Night
Switch
|
Day,
Night, Auto, Schedule
|
|
Enhancement
|
BLC,
HLC, 3D DNR
|
|
Wide
Dynamic Range (WDR)
|
120
dB
|
|
SNR
|
≥ 52 dB
|
|
Settings
|
Rotate
mode, saturation, brightness, contrast, sharpness, gain, white balance,
adjustable by client software or web browser
|
|
Privacy
Mask
|
4
programmable polygon privacy masks
|
|
Interface
|
|
On-Board
Storage
|
Built-in
memory card slot, support microSD / microSDHC / microSDXC card, up to 512 GB
|
|
Built-in
Microphone
|
Yes,
1 built-in microphone
|
|
Ethernet
Interface
|
1
RJ45 10 M/100 M self-adaptive Ethernet port
|
|
Built-in
Speaker
|
Max.
power consumption: 1.5 W, max. sound pressure level: 10 cm: 95 dB.
|
|
Reset
Key
|
Yes
|
|
Event
|
|
Basic
Event
|
Motion
detection (support alarm triggering by specified target types (human and
vehicle)), video tampering alarm, exception
|
|
Linkage
|
Upload
to FTP / NAS / memory card, notify surveillance center, send email, trigger
recording, trigger capture, audible warning, flashing light
|
|
General
|
|
Power
|
12
VDC ± 25%, 0.75 A, max. 9 W, Ø5.5 mm coaxial power plug, reverse polarity
protection,
PoE:
IEEE 802.3af, Class 3, max. 10.5 W
|
|
Material
|
Metal
& Plastic
|
|
Dimension
|
83.7
mm × 80.7 mm × 221.1 mm (3.3" × 3.2" × 8.7")
|
|
Package
Dimension
|
260
mm × 125 mm × 125 mm (10.2" × 4.9" × 4.9")
|
|
With
Package Weight
|
Approx.
669 g (1.5 lb.)
|
|
Weight
|
Approx.
410 g (0.9 lb.)
|
|
Storage
Conditions
|
-30
°C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
|
|
General
Function
|
Heartbeat,
anti-banding, mirror, password protection, password reset via email
|
|
Flashing
Light
|
Yes
|
|
Approval
|
|
Protection
|
IP67:
IEC 60529-2013
|
|
EMC
|
CE-EMC:
EN 55032: 2015+A1: 2020, EN 50130-4: 2011+A1: 2014, EN IEC 61000-3-2: 2019+A1:
2021, EN 61000-3-3: 2013+A1: 2019+A2: 2021, RCM: AS/NZS CISPR 32: 2015, IC:
ICES-003: Issue 7
|
|
Safety
|
UL:
UL 62368-1,
CB:
IEC 62368-1: 2014+A11,
CE-LVD:
EN 62368-1: 2014/A11: 2017,
BIS:
IS 13252 (Part 1): 2010/IEC 60950-1: 2005
|
|
Environment
|
CE-RoHS:
2011/65/EU, WEEE: 2012/19/EU,
Reach:
Regulation (EC) No 1907/2006
|
