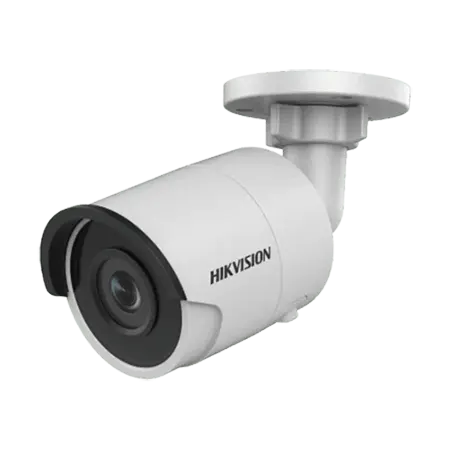

Camera
|
|
Image Sensor
|
1/3″ Progressive Scan CMOS
|
|
Min. Illumination
|
Color: 0.005 Lux @ (F1.6,
AGC ON), 0 Lux with IR on
|
|
Shutter Speed
|
1/3 s to 1/100,000 s
|
|
Slow Shutter
|
Yes
|
|
P/N
|
P/N
|
|
Wide Dynamic Range
|
120 dB
|
|
Day & Night
|
ICR Cut
|
|
Angle Adjustment
|
Pan: 0° to 360°, tilt: 0°
to 90°, rotate: 0° to 360°
|
|
Lens
|
|
Lens Type & FOV
|
Horizontal FOV 84°,
Vertical FOV 45°, Diagonal FOV 100°
|
|
Aperture
|
F1.6
|
|
Lens Mount
|
M12
|
|
DORI
|
|
DORI
|
4 mm: D: 80 m, O: 31 m, R:
16 m, I: 8 m
|
|
Illuminator
|
|
IR Range
|
Up to 40 m
|
|
Wavelength
|
850 nm
|
|
Video
|
|
Max. Resolution
|
2688 × 1520
|
|
Main Stream
|
50Hz: 25fps (2688 × 1520,
1920 × 1080, 1280 × 720)
60Hz: 30fps (2688 × 1520,
1920 × 1080, 1280 × 720)
|
|
Sub Stream
|
50Hz: 25 fps (640 × 480,
640 × 360)
60Hz: 30 fps (640 × 480,
640 × 360)
|
|
Third Stream
|
50Hz: 25 fps (1280 × 720,
640 × 480, 640 × 360)
60Hz: 30 fps (1280 × 720,
640 × 480, 640 × 360)
|
|
Video Compression
|
Main stream: H.265 / H.264 /
H.264+ / H.265+
Sub-stream: H.265 / H.264
Third stream: H.265 / H.264
|
|
Video Bit Rate
|
32 Kbps to 8 Mbps
|
|
H.264 Type
|
Baseline Profile / Main
Profile / High Profile
|
|
H.265 Type
|
Main Profile
|
|
H.264+
|
Main Stream supports
|
|
H.265+
|
Main Stream supports
|
|
Bit Rate Control
|
CBR/VBR
|
|
Scalable Video Coding (SVC)
|
Yes
|
|
Region of Interest (ROI)
|
1 fixed region for main
stream and sub-stream
|
|
Network
|
|
Simultaneous Live View
|
Up to 6 channels
|
|
API
|
Open Network Video
Interface (Profile S, Profile G), ISAPI, SDK
|
|
Protocols
|
TCP/IP, ICMP, HTTP, HTTPS,
FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6,
UDP, Bonjour, SSL/TLS, PPPoE
|
|
User/Host
|
Up to 32 users. 3 user
levels: administrator, operator and user
|
|
Security
|
Password protection,
complicated password, HTTPS encryption, IP address filter, Security Audit
Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and
digest authentication for Open Network Video Interface
|
|
Network Storage
|
MicroSD / SDHC / SDXC card
(256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment
(ANR)
|
|
Client
|
iVMS-4200, Hik-Connect,
Hik-Central
|
|
|
|
Day/Night Switch
|
Day, Night, Auto, Schedule
|
|
Image Enhancement
|
BLC, HLC, 3D DNR
|
|
Image Parameters Switch
|
Yes
|
|
Image Settings
|
Rotate, mirror, privacy
mask, saturation, brightness, contrast, sharpness, gain, white balance
adjustable by client software or web browser
|
|
Interface
|
|
On-board Storage
|
Built-in micro SD, up to
256 GB
|
|
Hardware Reset
|
Yes
|
|
Communication Interface
|
1 RJ45 10M/100M
self-adaptive Ethernet port
|
|
Event
|
|
Basic Event
|
Motion detection (human and
vehicle targets classification), video tampering alarm, exception
|
|
Face Detection
|
Yes
|
|
Deep
Learning Function
|
|
Perimeter Protection
|
Line crossing detection,
intrusion detection Supports human and vehicle targets classification
|
|
General
|
|
Linkage Method
|
Upload to FTP / memory card
/ NAS, notify surveillance center, trigger record, trigger capture
|
|
General Function
|
Anti-flicker, heartbeat,
password reset via e-mail, pixel counter
|
|
Storage Conditions
|
-30 °C to 60 °C (-22 °F to
140 °F) Humidity 95% or less (non-condensing)
|
|
Startup and Operating
Conditions
|
-30 °C to 60 °C (-22 °F to
140 °F) Humidity 95% or less (non-condensing)
|
|
Power Supply
|
12 VDC ± 25%, reverse
polarity protection
PoE: (802.3af, 36 V to 57 V), Class 3
|
|
Power Consumption and
Current
|
12 VDC, 0.5 A, max. 6W
PoE (802.3af, 36 V to 57
V), 0.2 A to 0.13 A, max. 7 W
|
|
Power Interface
|
Ø5.5 mm coaxial power plug
|
|
Camera Dimension
|
Ø70 × 161.7 mm (Ø2.76″ ×
6.37″)
|
|
Camera Weight
|
Approx. 490 g (1.1 lb.)
|
