Camera
|
|
Image Sensor
|
1/1.8" Progressive Scan CMOS
|
|
Min. Illumination
|
Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with
white light
|
|
Shutter Speed
|
1/3 s to 1/100,000 s
|
|
Slow Shutter
|
Yes
|
|
Wide Dynamic Range
|
130 dB
|
|
Angle Adjustment
|
Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to
360°
|
|
Lens
|
|
Focal Length & FOV
|
4 mm, horizontal FOV 95.2°, vertical FOV 50.6°,
diagonal FOV 114.7°
|
|
Lens Mount
|
M16
|
|
Aperture
|
F1.0
|
|
Depth of Field
|
4 mm: 5.4 m to ∞
|
|
DORI
|
|
DORI
|
4 mm, D: 77 m, O: 30.5 m, R: 15.4 m, I: 7.7 m
|
|
Illuminator
|
|
Smart Supplement Light
|
Yes
|
|
White Light Range
|
Up to 40 m
|
|
Visual Alarm
|
Yes
|
|
Video
|
|
Max. Resolution
|
2688 × 1520
|
|
Main Stream
|
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 ×
720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 ×
720)
|
|
Sub-Stream
|
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
|
|
Third Stream
|
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 ×
480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 ×
480, 640 × 360)
*Third stream is supported under certain
settings.
|
|
Video Compression
|
Main stream: H.265 / H.264 / H.265+ / H.264+
Sub-stream: H.265 / H.264
Third stream: H.265 / H.264
*Third stream is supported under certain
settings.
|
|
Video Bit Rate
|
32 Kbps to 8 Mbps
|
|
H.264 Type
|
Baseline Profile / Main Profile / High Profile
|
|
H.265 Type
|
Main Profile
|
|
H.264+
|
Main stream supports
|
|
H.265+
|
Main stream supports
|
|
Bit Rate Control
|
CBR/VBR
|
|
Scalable Video Coding (SVC)
|
H.265 and H.264 encoding
|
|
Region of Interest (ROI)
|
1 fixed region for main stream and sub-stream
|
|
Audio
|
|
Audio Compression
|
G.711ulaw / G.711alaw / G.722.1 / G.726 / MP2L2 /
PCM / MP3 / AAC-LC
|
|
Audio Bit Rate
|
64 Kbps (G.711ulaw / G.711alaw) / 16 Kbps (G.722.1) / 16 Kbps (G.726) / 32 to 192 Kbps (MP2L2) / 8 to 320 Kbps (MP3) / 16 to 64 Kbps (AAC-LC)
|
|
Audio Sampling Rate
|
8 kHz / 16 kHz / 32 kHz / 44.1 kHz / 48 kHz
|
|
Environment Noise Filtering
|
Yes
|
|
Network
|
|
Protocols
|
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS,
RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour,
SSL/TLS, PPPoE, SNMP, ARP, WebSocket
|
|
Simultaneous Live View
|
Up to 6 channels
|
|
User/Host
|
Up to 32 users. 3 user levels: administrator,
operator and user
|
|
Security
|
Password protection, complicated password, HTTPS
encryption, IP address filter, Security Audit Log, basic and digest
authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication
for Open Network Video Interface
|
|
Network Storage
|
NAS (NFS, SMB/CIFS), auto network replenishment
(ANR), MicroSD / SDHC / SDXC card (512 GB) local storage
Together with high-end Hikvision memory card, memory card encryption and
health detection are supported
|
|
|
|
Image Parameters Switch
|
Yes
|
|
Image Settings
|
Rotate mode, saturation, brightness, contrast,
sharpness, gain, white balance adjustable by client
software or web browser
|
|
Day/Night Switch
|
Auto, Schedule
|
|
SNR
|
≥ 52 dB
|
|
Image Enhancement
|
BLC, HLC, 3D DNR
|
|
Interface
|
|
Ethernet Interface
|
1 RJ45 10 M/100 M self-adaptive Ethernet port
|
|
On-Board Storage
|
Built-in memory card slot, support microSD /
microSDHC / microSDXC card, up to 512 GB
|
|
Built-in Microphone
|
Yes
|
|
Built-in Speaker
|
1.2 W, 10 cm: 95 dB
|
|
Hardware Reset
|
Yes
|
|
Event
|
|
Basic Event
|
Motion detection (human and vehicle targets
classification), video tampering alarm, exception
|
|
Smart Event
|
Scene change detection
|
|
Deep
Learning Function
|
|
Face Capture
|
Yes
|
|
Perimeter Protection
|
Line crossing detection, intrusion detection,
region entrance detection, region exiting detection
Supports human and vehicle targets classification
|
|
General
|
|
Linkage Method
|
Upload to NAS / memory card / FTP, notify
surveillance center, trigger recording, trigger capture, send email, strobe
light, audible warning, trigger alarm output
|
|

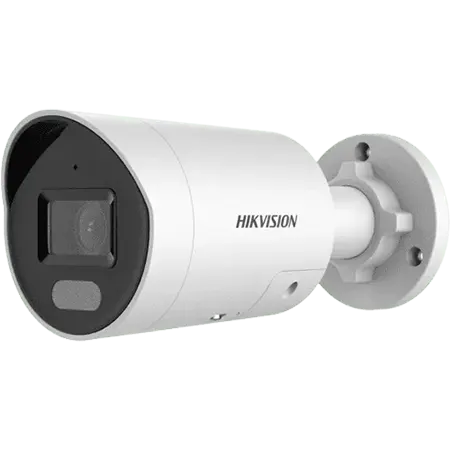

Camera Material
|
Aluminum alloy body
|
|
Camera Dimension
|
Ø74.4 mm × 179.2 mm (Ø2.9" × 7.1")
|
|
Package Dimension
|
234 mm × 120 mm × 117 mm (9.2" × 4.7" ×
4.6")
|
|
Camera Weight
|
Approx. 510 g (1.1 lb.)
|
|
With Package Weight
|
Approx. 760 g (1.7 lb.)
|
|
Storage Conditions
|
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95%
or less (non-condensing)
|
|
Startup and Operating Conditions
|
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95%
or less (non-condensing)
|
|
General Function
|
Anti-flicker, heartbeat, mirror, privacy mask,
flash log, password reset via email, pixel counter
|
|
Power Consumption and Current
|
12 VDC, 0.5 A, max. 6 W
PoE (802.3af, 36 V to 57 V), 0.25 A to 0.15 A ,
max. 7.5 W
|
|
Power Supply
|
12 VDC ± 25%
PoE: 802.3af, Class 3
|
|
Power Interface
|
Ø5.5 mm coaxial power plug
|
|
Approval
|
|
EMC
|
FCC SDoC: 47 CFR Part 15, Subpart B;
CE-EMC: EN 55032: 2015, EN 61000-3-2: 2014, EN
61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014;
RCM: AS/NZS CISPR 32: 2015;
IC VoC: ICES-003: Issue 6, 2016;
KC: KN 32: 2015, KN 35: 2015
|
|
Safety
|
UL: UL 60950-1;
CB: IEC 60950-1: 2005 + Am 1:2009 + Am 2:2013, IEC
62368-1 : 2014;
CE-LVD: EN 60950-1: 2005 + Am 1:2009 + Am 2:2013,
IEC 62368-1: 2014;
LOA: IEC/EN 60950-1
|
|
Environment
|
CE-RoHS: 2011/65/EU; WEEE: 2012/19/EU;
Reach: Regulation (EC) No 1907/2006
|
|
Protection
|
IP67: IEC 60529-2013
|
