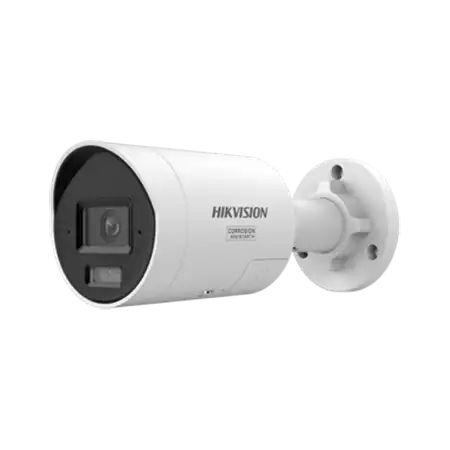

Camera
|
|
|
Image Sensor
|
1/1.8" Progressive Scan CMOS
|
|
|
Max. Resolution
|
2688 × 1520
|
|
|
Min. Illumination
|
Color: 0.0001 Lux @ (F1.0, AGC ON), 0 Lux with light
|
|
|
Shutter Time
|
1 s to 1/100,000 s
|
|
|
Angle Adjustment
|
Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
|
|
|
Day & Night
|
IR cut filter
|
|
|
Lens
|
|
|
Focal Length & FOV
|
4 mm, horizontal FOV 95.2°, vertical FOV 48.3°, diagonal FOV 117.4°
|
|
|
Lens Type
|
Fixed focal lens, 2.8 and 4 mm optional
|
|
|
Lens Mount
|
M16
|
|
|
Iris Type
|
Fixed
|
|
|
Aperture
|
F1.0
|
|
|
Depth of Field
|
4 mm: 3.1 m to ∞
|
|
|
DORI
|
|
|
DORI
|
4 mm: D: 75 m, O: 30 m, R: 15 m, I: 7 m
|
|
|
Illuminator
|
|
|
Supplement Light Type
|
White Light, IR
|
|
|
Supplement Light Range
|
Up to 40 m
|
|
|
Smart Supplement Light
|
Yes
|
|
|
IR Wavelength
|
850 nm
|
|
|
Video
|
|
|
Main Stream
|
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
|
|
|
Sub-Stream
|
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
|
|
|
Third Stream
|
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
*Third stream is supported under certain settings.
|
|
|
Video Compression
|
Main stream: H.265 / H.264 / H.265+ / H.264+,
Sub-stream: H.265 / H.264 / MJPEG,
Third stream: H.265 / H.264,
*Third stream is supported under certain settings.
|
|
|
Video Bit Rate
|
32 Kbps to 8 Mbps
|
|
|
H.264 Type
|
Baseline Profile, Main Profile, High Profile
|
|
|
H.265 Type
|
Main Profile
|
|
|
Bit Rate Control
|
CBR, VBR
|
|
|
Scalable Video Coding (SVC)
|
H.264 and H.265 encoding
|
|
|
Region of Interest (ROI)
|
1 fixed region for main stream
|
|
|
Audio
|
|
|
Audio Type
|
Mono sound
|
|
|
Audio Sampling Rate
|
8 kHz / 16 kHz / 32 kHz / 48 kHz
|
|
|
Environment Noise Filtering
|
Yes
|
|
|
Network
|
|
|
Protocols
|
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
|
|
|
Simultaneous Live View
|
Up to 6 channels
|
|
|
Security
|
Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
|
|
|
Network Storage
|
NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
|
|
|
|
|
|
Image Parameters Switch
|
Yes
|
|
|
Image Settings
|
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
|
|
|
Day/Night Switch
|
Day, Night, Auto, Schedule
|
|
|
Wide Dynamic Range (WDR)
|
130 dB
|
|
|
SNR
|
≥ 52 dB
|
|
|
Image Enhancement
|
BLC, HLC, 3D DNR
|
|
|
Privacy Mask
|
4 programmable polygon privacy masks
|
|
|
Interface
|
|
|
Ethernet Interface
|
1 RJ45 10 M/100 M self-adaptive Ethernet port
|
|
|
On-Board Storage
|
Built-in memory card slot, support microSD / microSDHC / microSDXC card, up to 512 GB
|
|
|
Built-in Speaker
|
Max. power consumption: 2 W, max. sound pressure level: 10 cm: 95 dB.
|
|
|
Reset Key
|
Yes
|
|
|
Audio
|
Built-in Microphone: Arrayed dual-microphone
|
|
|
Event
|
|
|
Basic Event
|
Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
|
|
|
Smart Event
|
Scene change detection
|
|
|
Linkage
|
Upload to FTP / NAS / memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning, strobe light flashing
|
|
|
Deep Learning Function
|
|
|
Face Capture
|
Yes
|
|
|
Perimeter Protection
|
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
|
|
General
|
|
Power
|
12 VDC ± 25%, 1 A, max. 12 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3at, Class 4, max. 16 W
|
|
Material
|
Front cover: Metal, body: Metal, bracket: Metal
|
|
Weight
|
Approx. 530 g (1.2 lb.)
|
|
With Package Weight
|
Approx. 815 g (1.8 lb.)
|
|
Dimension
|
Ø74.4 mm × 176.3 mm (Ø2.93" × 6.94")
|
|
General Function
|
Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding
|
|
Flashing Light
|
/SL model: White Light
|
|
Approval
|
|
Safety
|
UL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
|
|
Environment
|
CE-RoHS: 2011/65/EU
|
|
EMC
|
CE-EMC: EN 55032: 2015+A1 : 2020, EN 50130-4: 2011+A1: 2014, EN IEC 61000-3-2: 2019+A1: 2021, EN 61000-3-3: 2013+A1: 2019+A2: 2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
|
|
Protection
|
IP67: IEC 60529-2013
|
|
Anti-Corrosion Protection
|
NEMA 4X (NEMA 250-2018)
|
