DS-2CD2083G2-I 4mm

DS-2CD2083G2-I 4mm

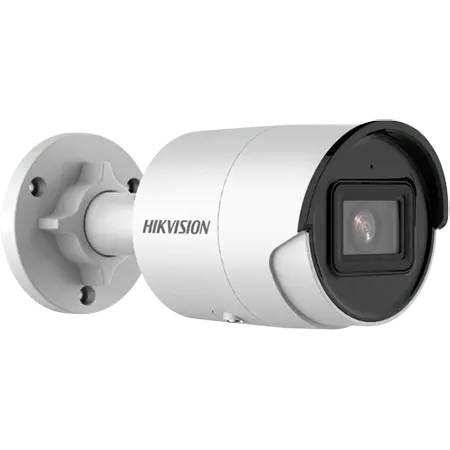

Hikvision DS-2CD2083G2-I 8MP AcuSense Fixed Bullet Network Camera, 1/2.8" Progressive Scan CMOS, Up to 40m IR, 20 fps (3840 × 2160), 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080), Efficient H.265+ compression technology, Clear imaging against strong backlight due to 120 dB WDR technology Focusing on human and vehicle classification based on deep learning, Water and dust resistant (IP67)

DS-2CD2083G2-I

Resolution

High quality imaging with 8MP resolution

Interface

Built-in memory card slot (support microSD card, up to 256 GB), Reset Button

Smart Features

120dB WDR, 3D DNR, BLC, HLC, ROI, Day & Night with ICR
Focusing on human and vehicle classification based on deep learning

Frame Rate

20 fps (3840 × 2160),25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720);

IR Range

Up to 40m IR Range

Smart Features

120dB WDR, 3D DNR, BLC, HLC, ROI, Day & Night with ICR

Video Compression

Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG

Smart Event

Line crossing detection, intrusion detection, face detection

Motion detection, Video tampering alarm, Exception Alarm, Linkage Method

Camera

Image Sensor

1/2.8" Progressive Scan CMOS

Min. Illumination

Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR

Shutter Speed

1/3 s to 1/100,000 s

Slow Shutter

Yes

P/N

P/N

Wide Dynamic Range

120 dB

Day & Night

IR cut filter

Angle Adjustment

Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

Lens Type

4mm

Focal Length & FOV

4 mm, horizontal FOV 87°, vertical FOV 46°, diagonal FOV 105°

Lens Mount

M12

Iris Type

Fixed

Aperture

F1.6

DORI

DORI

4 mm: D: 108 m, O: 43 m, R: 22 m, I: 11 m

Illuminator

Supplement Light Type

IR

Smart Supplement Light

Yes

IR IR Wavelength

850 nm

IR Range

Up to 40 m

Video

Max. Resolution

3840 × 2160

Main Stream

50 Hz: 20 fps (3840 × 2160)

25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz: 20 fps (3840 × 2160)

30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (640 × 480, 640 × 360)

60 Hz: 30 fps (640 × 480, 640 × 360)

Third Stream

50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

*Third stream is supported under certain settings.

Video Compression

Main stream: H.265 / H.264 / H.264+ / H.265+
Sub-stream: H.265 / H.264 / MJPEG
Third stream: H.265 / H.264

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Baseline Profile / Main Profile / High Profile

H.265 Type

Main Profile

H.264+

Main stream supports

H.265+

Main stream supports

Bit Rate Control

CBR/VBR

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Region of Interest (ROI)

1 fixed region for main stream and sub-stream

Network

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP

Simultaneous Live View

Up to 6 channels

API

Open Network Video Interface (Profile S, Profile G), ISAPI, SDK

Security

Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface

Network Storage

NAS (NFS, SMB/CIFS), auto network replenishment (ANR)

Client

iVMS-4200, Hik-Connect, Hik-Central


Image Parameters Switch

Yes

Image Settings

Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

Day/Night Switch

Day, Night, Auto, Schedule

Image Enhancement

BLC, HLC, 3D DNR

SNR

≥ 52 dB

Interface

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

On-Board Storage

Built-in memory card slot, support MicroSD card, up to 256 GB

Reset Key

Yes

Event

Basic Event

Motion detection (human and vehicle targets classification), video tampering alarm, exception

Face Detection

Yes

Deep Learning Function

Perimeter Protection

Line crossing detection, intrusion detection Supports human and vehicle targets classification

General

Linkage Method

Upload to FTP / memory card / NAS, Notify surveillance center, Trigger recording, Trigger capture, send email

Material

Aluminum alloy body IR cover: plastic

Dimension

Ø70 mm × 161.7 mm (Ø2.8" × 6.4")

Package Dimension

216 mm × 121 mm × 118 mm (8.6" × 4.8" × 4.7")

Weight

Approx. 495 g (1.1 lb.)

With Package Weight

Approx. 759 g (1.7 lb.)

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

General Function

Anti-flicker, heartbeat, password reset via email, pixel counter

Software Reset

Yes

Power Consumption and Current

12 VDC, 0.5 A, max. 6 W

PoE (802.3af, 36 V to 57 V), 0.2 A to 0.13 A, max. 7.2 W

Power Supply

12 VDC ± 25%, reverse polarity protection PoE: 802.3af, Class 3

Power Interface

Ø5.5 mm coaxial power plug

Approval

EMC

FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN

61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC

(ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)

Safety

UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013);
CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013);
BIS (IS 13252(Part1): 2010+A1: 2013+A2: 2015)

Environment

CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Protection

IP67 (IEC 60529-2013)
