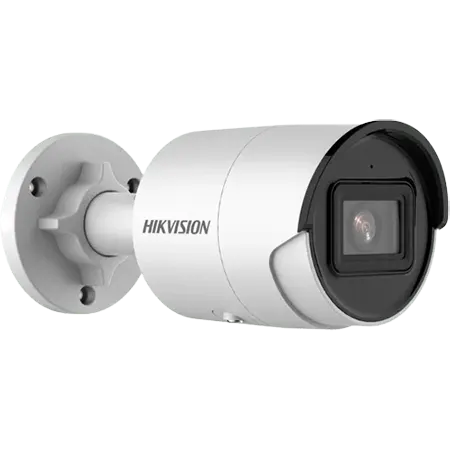

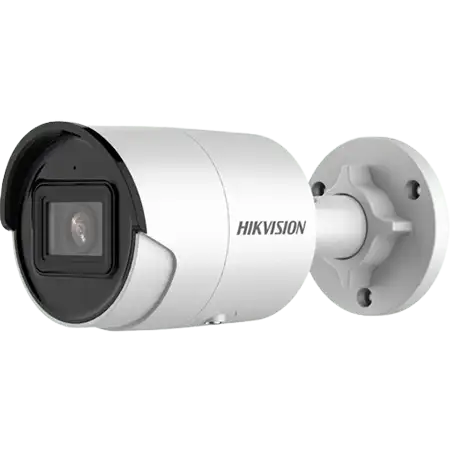

DS-2CD2086G2-IU 4mm

Camera

Image Sensor

1/1.8" Progressive Scan CMOS

Min. Illumination

Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR

Shutter Speed

1/3 s to 1/100,000 s

Slow Shutter

Yes

P/N

P/N

Wide Dynamic Range

120 dB

Day & Night

IR cut filter

Angle Adjustment

Pan: 0 to 360°, tilt: 0 to 90°, rotation: 0 to 360°

Lens

Lens Type

Fixed focal lens 4mm

Iris Type

Fixed

Focal Length & FOV

4 mm, horizontal FOV 87°, vertical FOV 47°, diagonal FOV 102°

Aperture

F1.6

Lens Mount

M12

DORI

DORI

4 mm: D: 99.4 m, O: 39.4 m, R: 19.9 m, I: 9.9 m

Illuminator

Supplement Light Type

IR

IR Range

Up to 40 m

IR Wavelength

850 nm

Smart Supplement Light

Yes

Video

Max. Resolution

3840 × 2160

Main Stream

50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

60 Hz: 24 fps (3840 × 2160)

30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)

60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Third Stream

50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

*Third stream is supported under certain settings.

Video Compression

Main stream: H.265 / H.264 / H.264+ / H.265+

Sub-stream: H.265 / H.264

Third stream: H.265 / H.264

*Third stream is supported under certain settings.

Video Bit Rate

32 Kbps to 16 Mbps

H.264 Type

Baseline Profile / Main Profile / High Profile

H.265 Type

Main Profile

H.264+

Main stream supports

H.265+

Main stream supports

Bit Rate Control

CBR/VBR

Scalable Video Coding (SVC)

H.264 and H.265 encoding

Region of Interest (ROI)

1 fixed region for main stream and sub-stream

Audio

Environment Noise Filtering

-U: Yes

Audio Sampling Rate

-U: 8 kHz / 16 kHz / 32 kHz / 44.1 kHz / 48 kHz

Audio Compression

-U: G.711ulaw / G.711alaw / G.722.1 / G.726 / MP2L2 / PCM / MP3 / AAC-LC

Audio Bit Rate

-U: 64 Kbps (G.711ulaw / G.711alaw) / 16 Kbps (G.722.1) / 16 Kbps (G.726) / 32 to 192 Kbps (MP2L2) / 8 to 320 Kbps (MP3) / 16 to 64 Kbps (AAC-LC)

Audio Type

-U: Mono sound

Network

Simultaneous Live View

Up to 6 channels

API

Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK

Protocols

TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets

User/Host

Up to 32 users. 3 user levels: administrator, operator and user

Security

Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface


Day/Night Switch

Day, Night, Auto, Schedule

Target Cropping

Yes

Image Enhancement

BLC, HLC, 3D DNR

Image Parameters Switch

Yes

Image Settings

Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

SNR

≥ 52 dB

Interface

Built-in Microphone

-U: Yes

On-Board Storage

Built-in microSD Slot

Hardware Reset

Yes

Ethernet Interface

1 RJ45 10 M/100 M self-adaptive Ethernet port

Event

Basic Event

Motion detection (human and vehicle targets classification), video tampering alarm, exception

Smart Event

Scene change detection

Deep Learning Function

Face Capture

Yes

Perimeter Protection

Line crossing detection, intrusion detection, region entrance detection, region exiting detection
Supports human and vehicle targets classification

General

General Function

Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter

Software Reset

Yes

Linkage Method

Upload to FTP / NAS /memory card, notify surveillance center, send email, trigger recording, trigger capture

Storage Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions

-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Power Supply

12 VDC ± 25%

PoE: 802.3af, Class 3

Power Consumption and Current

12 VDC, 0.5 A, max. 6 W

PoE (802.3af, 36V to 57V), 0.2 A to 0.13 A, max. 7.2 W

Power Interface

Ø5.5 mm coaxial power plug

Camera Material

Metal

Camera Dimension

Ø70 mm ×161.7 mm (Ø2.8" × 6.37")

Package Dimension

216 mm × 121 × 118 mm (8.5" × 4.8" ×4.6")

Camera Weight

Approx. 485 g (1.1 lb.)

With Package Weight

Approx. 749 g (1.6 lb.)

Firmware Version

V5.5.112

Approval

Protection

IP67 (IEC 60529-2013)

EMC

CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011+A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015)

Safety

UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)

Environment

CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
